Product Details
Test Method RCT, ECT, FCT And PAT Etc Operation Touch Screen Operation
Test Range 5~3000N Resolution 0.01N
Leave a Message
Product Description

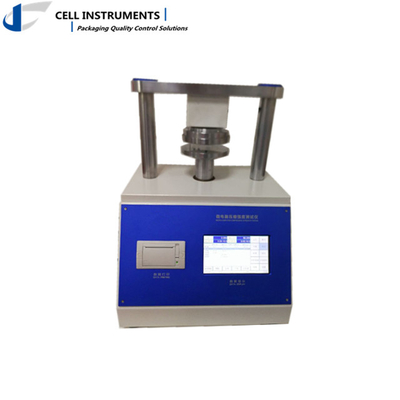

YSD-01 board and paper crush tester is used for the ring crush(RCT) for paper with thickness between 0.15 and 1mm, edge crush(ECT), plybond adhesion (PAT) and flat crush(FCT) test for board. It can also be used for the compression test (CMT) for tube with diameter less than 60mm.



Board and paper crush tester technical​ Features

  1. Four test modes of RCT, ECT, FCT and PAT available
  2. Microcomputer control, auto measuring and test result judgment, auto returning.
  3. Curve Real time display, data auto collecting, calculating, analysis, storage & printing.
  4. Touch screen operation
  5. Synchronous motor drive for precise pressure output.





BOARD AND PAPER CRUSH TESTER FLAT CRUSH TEST EDGE CRUSH BOARD RING CRUSH PLY ADHESION TEST 0



Board and paper crush tester technical data



Test range

 5~3000N
Accuracy ≤±1%
Resolution 0.01N
Platen parallelism ≤0.05mm
Upper platen diameter 125mm
Lower platen diameter 125mm
Compression speed 12.5±1mm/min
Stroke 80mm



BOARD AND PAPER CRUSH TESTER FLAT CRUSH TEST EDGE CRUSH BOARD RING CRUSH PLY ADHESION TEST 1 BOARD AND PAPER CRUSH TESTER FLAT CRUSH TEST EDGE CRUSH BOARD RING CRUSH PLY ADHESION TEST 2  BOARD AND PAPER CRUSH TESTER FLAT CRUSH TEST EDGE CRUSH BOARD RING CRUSH PLY ADHESION TEST 3

Test standard of Board and paper crush tester

ISO 12192, ISO 3035, ISO 3037, ISO 7263, GB/T2679.6, GB/T6546, GB/T2679.8, GB/T6548
