Light transmittance and Haze meter ISO 13468 ISO 14782 ASTM D 1003
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | Electronic | Usage | Plastic Testing Machine |
|---|---|---|---|
| Standards | ISO 13468 ISO 14782 ASTM D 1003 |
Product Description
Light transmittance and Haze meter ISO 13468 ISO 14782 is designed for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement.
Light transmittance and Haze meter ISO 13468 ISO 14782 does not need warm-up during test which saves customer's time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers’ measurement requirement.
Technical data
| Light Source | CIE-A,CIE-C,CIE-D65 |
| Standards | ASTM D1003/D1044,ISO13468/ISO14782, JIS K 7361/ JIS K 7136, GB/T 2410-08 |
| Parameters | HAZE, Transmittance(T) |
| Spectral Response | CIE Luminosity function Y/V (λ) |
| Geometry | 0/d |
| Measurement Area/ Aperture Size | 16.5mm/21mm |
| Measurement Range | 0-100% |
| Haze Resolution | 0.01 |
| Haze Repeatability | ≤0.1 |
| Sample Size | Thickness ≤145mm |
| Memory | 20000 value |
| Interface | USB |
| Power | DC24V |
| Working Temperature | 10-40 ℃ (+50 – 104 °F) |
| Storage Temperature | -20-50℃ (+32 – 122 °F) |
| Size (LxWxH) | 310mm X 215mm X 540mm |
| Standard Accessory | Free PC software (Haze QC), one pcs of haze standard plate |
Light transmittance and Haze meter technical features
1). It conforms to international standards ASTM D 1003,ISO 13468,ISO 14782, JIS K 7361 and JIS K 7136.
2). Three kinds of light sources A,C and D65 for haze and total transmittance measurement.
3). It can realize transmittance compensation measurement which can provide higher accuracy test result.
4). Open measurement area, no limit on sample size.
5). Instrument is with 5.0 inches TFT display screen with good human-computer interface.

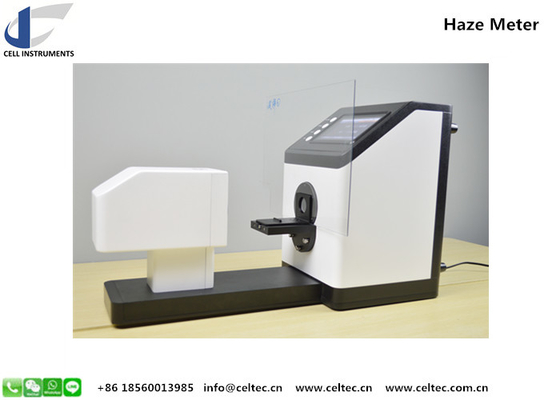

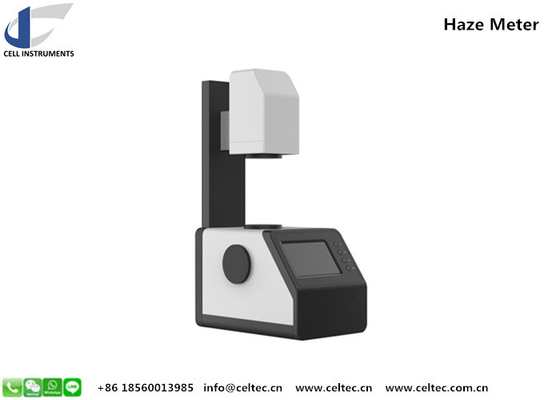

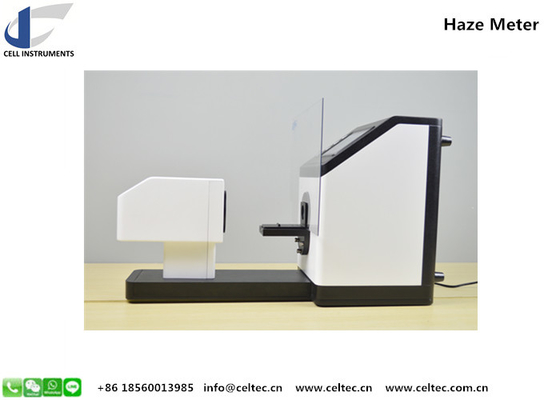

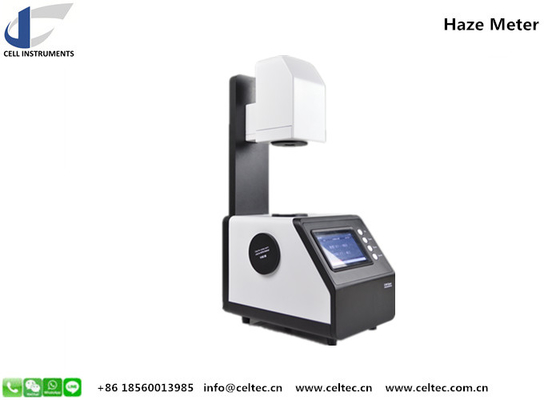

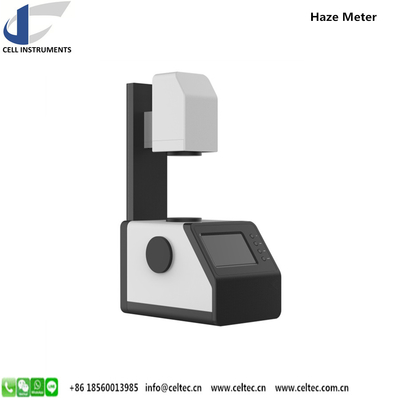

6). It can realize both horizontal and vertical measurement to measure different kinds of materials.
7). It adopts LED light source whose lifetime can reach 10 years.
8). No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 3 seconds.
9). Small size and light weight which makes it much easier to carry.
