Board Bursting Tester Corrugated Bursting Strength High Accurate Lab Bursting Testing Equipment

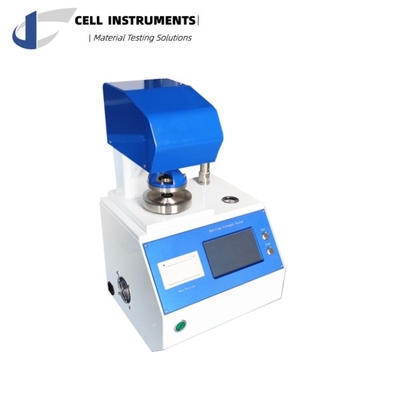

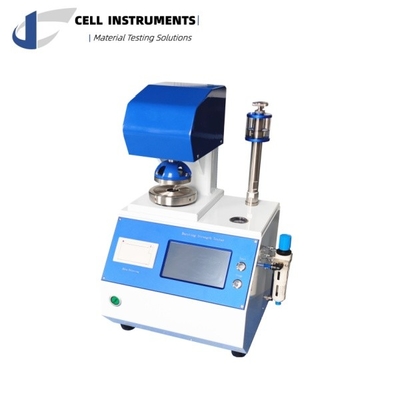

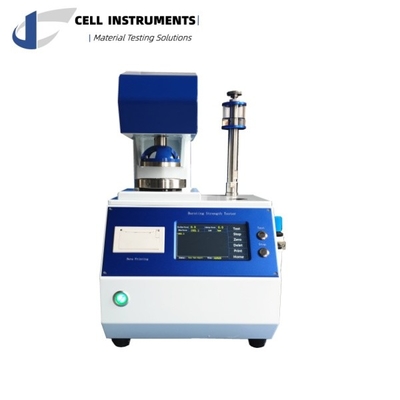

BNP-01 Board Bursting Tester for Corrugated Bursting Strength

The BNP-01 Board Bursting Tester is a highly accurate, laboratory-grade instrument designed to measure the corrugated bursting strength of various types of boards, including corrugated and solid fiberboard. With a wide testing range from 350 kPa to 5,500 kPa, it is ideal for evaluating the bursting strength of materials used in packaging applications. For papers or boards with lower bursting strengths (as low as 250 kPa), the BNP-01 remains suitable when the material is intended for making higher-strength products, such as corrugated boards.

What is Corrugated Bursting Strength?

Corrugated bursting strength refers to a material's resistance to rupture when subjected to internal or external hydraulic pressure. This property is crucial for determining the durability and robustness of packaging materials, especially in sectors where packaging integrity is vital during handling, storage, and transportation. It helps manufacturers ensure that their products withstand various stressors, reducing the likelihood of damage and minimizing transportation losses. The BNP-01 Board Bursting Tester facilitates accurate measurement of this parameter, allowing users to assess the quality and performance of their packaging materials with confidence.

Key Features of the BNP-01 Board Bursting Tester:

1. Wide Measurement Range:

   • The BNP-01 measures bursting strength within the range of 150 kPa to 5,600 kPa for boards. For paper applications, the range extends from 70 kPa to 1,600 kPa, making it versatile for different materials.

2. High Precision and Resolution:

   • The tester boasts a force resolution of 1/100,000 and maintains a force accuracy of ±0.1% across 20% to 100% of the full scale. This high precision ensures reliable and repeatable results in measuring corrugated bursting strength.

3. Advanced Data Analysis:

   • With a sampling frequency of 400 times per second, the BNP-01 provides detailed data analysis to better understand the material's properties. The device offers a deformation error of ≤1mm, ensuring precise measurements.

4. Adjustable Clamping Force:

   • The tester features an adjustable clamping pressure range from 100 kPa to 1,200 kPa. The stabilizing function ensures consistent force application, vital for obtaining accurate corrugated bursting strength readings.

5. User-Friendly Interface:

   • The 5-inch touchscreen provides a human-machine interface that is easy to navigate, allowing operators to control testing functions efficiently. The display supports multiple languages, including Chinese and English, making it accessible for global users.

6. Robust Construction:

   • The BNP-01 is built with 304 stainless steel in key areas such as the oil cylinder, upper, and lower clamping sections, ensuring durability and long-term reliability. The high-pressure oil circuit is designed with dual sealing knobs to prevent leaks.

7. Enhanced Safety Features:

   • Safety is prioritized with a protective cover and an anti-interference protection module for the power supply, ensuring safe operation during testing.

Why Test Corrugated Bursting Strength?

Evaluating corrugated bursting strength is an essential quality control step in the packaging industry. This test measures the maximum pressure a material can withstand before rupture, indicating its strength and durability under stress. By understanding the bursting strength of corrugated boards, manufacturers can make informed decisions about material selection for different packaging applications. Stronger materials mean better protection for products, reduced damage rates, and lower costs associated with returns or replacements.

Technical Specifications

Advantages of Using the BNP-01 for Corrugated Bursting Strength Testing

The BNP-01 offers multiple benefits for laboratories and manufacturers, including:

1. Accurate Quality Control: Provides highly precise measurements of corrugated bursting strength, essential for maintaining packaging material standards.
2. Durability Assessment: Helps in predicting the longevity and performance of packaging materials under real-world conditions.
3. Cost Reduction: Minimizes resource waste and transportation losses by ensuring materials are suitable for their intended use.
4. Enhanced Compliance: Meets international standards, making it suitable for global markets.

Calibration and Maintenance

Regular calibration of the BNP-01 is crucial for maintaining the accuracy of corrugated bursting strength measurements. The tester includes a built-in calibration system that allows for easy adjustments, ensuring long-term reliability. The device also features a self-contained manual pressure and pressure release control system, enabling users to perform maintenance checks efficiently.

Applications

The BNP-01 Board Bursting Tester is ideal for:

• Packaging Industry: Evaluating the bursting strength of corrugated boxes, fiberboard cartons, and other packaging materials.
• Food and Beverage: Ensuring that packaging used for food and beverages can withstand the stresses of transportation.
• Pharmaceuticals: Testing the robustness of pharmaceutical packaging to prevent contamination or damage.
• Colleges and Research Institutions: Facilitating the study of material properties and packaging design.
• Quality Inspection Agencies: Providing an accurate and reliable tool for regulatory compliance testing.

The BNP-01 Board Bursting Tester is an essential instrument for businesses aiming to improve their packaging quality and achieve superior corrugated bursting strength performance.
