xTest Range | (1~48) J | Four Gears | A <6J; B<12J; C<24J; D<48J |
---|---|---|---|
Resolution | 0.001J | Sample Size | 175*175mm |
Pressure Head | (100±2) Kpa | Friction Sleeve Resistance | <0.25J |
Pyramidal Head | Edge Length 60mm×60mm×60mm Height 25±0.7mm | Dimension | 900*410*800mm |
Power | AC 220V 50Hz | Weight | 110kg |
Puncture Strength Tester For Paper Cardboard Pendulum Impact Puncture Testing Instrument

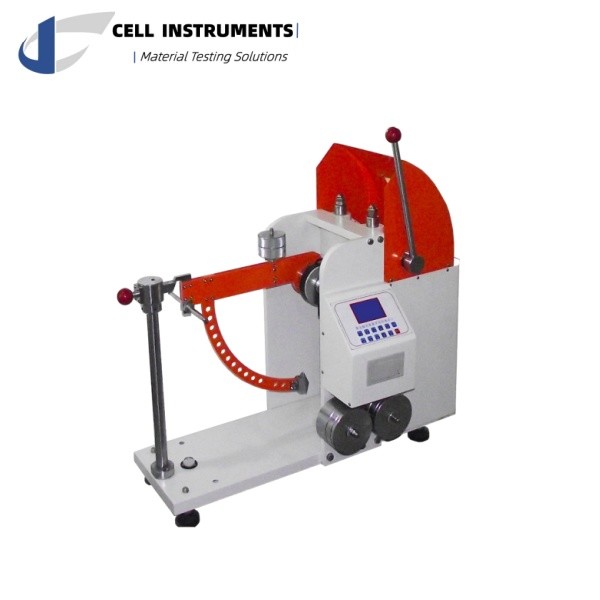

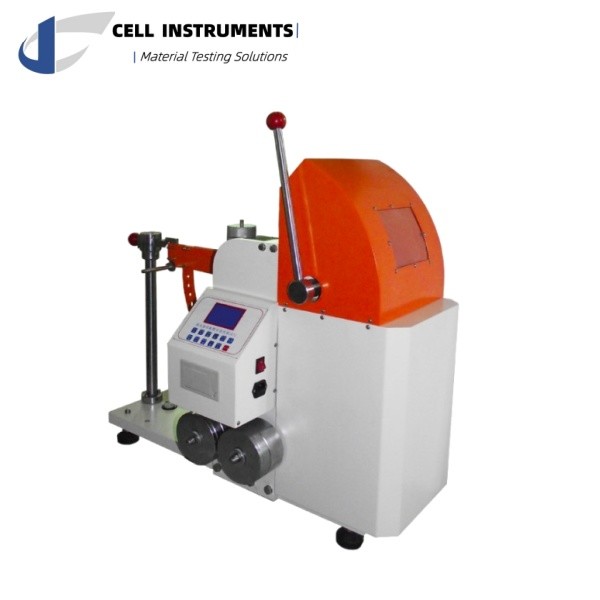

Introduction to the PST-01 Puncture Strength Tester
The PST-01 Puncture Strength Tester is an advanced and reliable solution for accurately assessing the puncture resistance of various packaging materials, including paper, corrugated cardboard, and container boards. With its cutting-edge pendulum impact design, the Puncture Strength Tester measures the precise energy required to puncture a material, providing essential data to industries that prioritize packaging integrity and product protection. This equipment is essential for laboratories and manufacturers involved in material testing, packaging, food, pharmaceuticals, and other industries where product durability is critical.
Designed with a right-angled pyramidal puncture head and a robust pendulum arm, the Puncture Strength Tester efficiently evaluates the puncture resistance by recording the energy needed to tear and deform the material. The PST-01 model operates on a microcomputer control system that ensures data accuracy, storage, and real-time result display. By simulating puncture impact, this tester provides a highly accurate assessment, contributing to better product quality control and compliance with industry standards like ISO 3036, TAPPI T803, DIN 53142, and GB/T 2679.
Principle of the PST-01 Puncture Strength Tester
The Puncture Strength Tester operates using a pendulum impact principle. The puncture head, a stainless steel triangular pyramid, is attached to a durable arm on the pendulum. When released, the pendulum swings, driving the puncture head into the sample material held between two horizontal plates. The energy needed to puncture the material, measured in "puncture units," represents the combined forces to tear and bend the material. This testing method simulates real-life impacts and puncture scenarios, giving manufacturers data critical for improving material durability and design.
Key Technical Features of the PST-01 Puncture Strength Tester
The PST-01 Puncture Strength Tester offers a range of advanced features that set it apart in the field of material testing:
- High-Precision LCD Display – Shows real-time data, allowing operators to monitor results instantly.
- Intelligent Microcomputer Control – Offers automated measurement, data storage, and printing, enhancing accuracy and repeatability.
- Four Adjustable Gears – Enables testing across various energy levels (A <6J; B <12J; C <24J; D <48J), meeting diverse testing needs.
- Durable Puncture Head and Pendulum Arm – The triangular pyramid puncture head and reinforced arm minimize vibrations, ensuring reliable testing.
- Safety and Stability Features – Equipped with protective mechanisms to ensure operator safety and equipment durability during tests.
These features make the PST-01 Puncture Strength Tester ideal for use in packaging, food, and pharmaceutical industries, where testing of materials is essential for product quality control.
Testing Standards
The Puncture Strength Tester meets the requirements of internationally recognized standards, ensuring that the results are compatible with global industry practices:
- ISO 3036 - Packaging standards for puncture testing of container boards.
- TAPPI T803 - North American standard for puncture testing of corrugated boards.
- DIN 53142 - German standard for puncture resistance testing of paper and board.
- GB/T 2679 - Chinese national standard for packaging material testing.
- QB/T 1664 and SN T0262 - Additional standards recognized within the industry.
Applications of the PST-01 Puncture Strength Tester
The Puncture Strength Tester serves a wide range of industries that rely on high-quality packaging materials. Typical applications include:
- Packaging Quality Control – Ensures that packaging materials meet puncture resistance requirements, essential for the safety of packaged goods.
- Food Industry – Verifies the strength of packaging materials for food products to prevent spoilage due to punctures.
- Pharmaceutical Industry – Tests the resilience of medical packaging to maintain product safety and regulatory compliance.
- Material Development in Laboratories – Used by R&D teams in universities and research centers for developing new materials with enhanced puncture resistance.
- Environmental Testing Agencies – Validates materials under specific puncture impact conditions to ensure sustainability and product longevity.
Advantages of Using the PST-01 Puncture Strength Tester
- Enhanced Accuracy and Repeatability – The microcomputer-controlled operation minimizes human error and enhances testing repeatability.
- Versatility Across Materials – Tests a variety of materials, including thin paper, thick cardboard, and even some flexible plastics.
- Data Storage and Printing – Stores data for future reference and allows printing of test results for easy documentation.
- Real-Time Data Display – Immediate results enable quick adjustments and timely decision-making during the material testing process.
- User-Friendly Interface – The LCD display and PVC operation panel provide an intuitive user experience, even for new operators.
Technical Specifications of the PST-01 Puncture Strength Tester
Test Range | (1~48) J |
Four Gears | A <6J; B<12J; C<24J; D<48J |
Resolution | 0.001J |
Sample Size | 175*175mm |
Pressure Head | (100±2) Kpa |
Friction Sleeve Resistance | <0.25J |
Pyramidal Head | Edge Length 60mm×60mm×60mm Height 25±0.7mm |
Dimension | 900*410*800mm |
Power | AC 220V 50Hz |
Weight | 110kg |
FAQs About the PST-01 Puncture Strength Tester
Q1: What materials are suitable for testing with the PST-01 Puncture Strength Tester?
A1: The PST-01 is designed for testing paper, cardboard, container boards, and corrugated materials. It is versatile and can also test some flexible materials depending on thickness and puncture resistance.
Q2: How does the pendulum mechanism function in puncture testing?
A2: The pendulum, equipped with a robust triangular pyramid puncture head, swings towards the test specimen, exerting controlled force to measure puncture resistance.
Q3: Can I store and print test data directly from the PST-01 Puncture Strength Tester?
A3: Yes, the PST-01 is equipped with microcomputer control, allowing data storage and printing for accurate documentation and analysis.
Q4: How is the puncture energy displayed during testing?
A4: Results are displayed in real-time on the LCD screen, showing the energy in joules required to puncture the sample.
Q5: Which standards does the PST-01 comply with?
A5: The tester complies with ISO 3036, TAPPI T803, DIN 53142, GB/T 2679, QB/T 1664, and SN T0262, making it suitable for global material testing standards.
