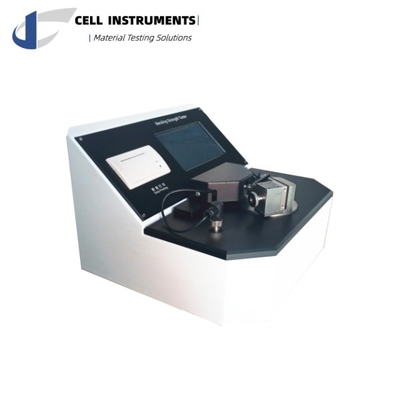

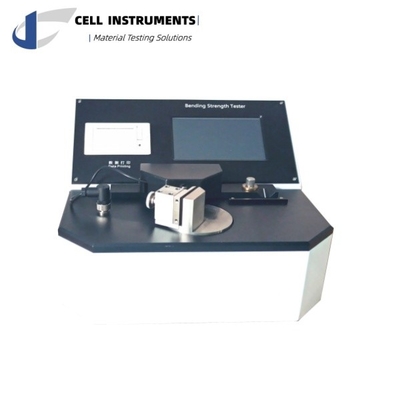

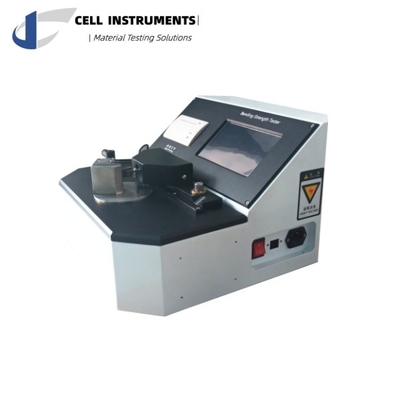

WTD-01 Bending Stiffness Tester For Paper Bending Resistance Strength Testing Instrument For Paperboard With Touchscreen

Introduction

The WTD-01 Bending Stiffness Tester is an advanced instrument designed specifically for measuring the bending resistance of paper and board materials. Utilizing a sophisticated two-point loading principle, this Bending Stiffness Tester is capable of accurately assessing bending resistance within a range of 20 mN to 10,000 mN. While it is not suitable for corrugated board, it excels in testing components of such materials, making it a versatile tool in various industries.

Why You Need a Bending Stiffness Tester

Bending stiffness is a critical property for materials used in packaging, printing, and other applications where maintaining structural integrity is paramount. A reliable Bending Stiffness Tester provides essential insights into the material's resistance to bending and deformation, ensuring that products maintain their shape and perform effectively under stress. Enhanced bending stiffness leads to improved rigidity and stability, crucial for applications in packaging and paper-based products.

Technical Features

• Multi-Angle Measurement: The WTD-01 allows for the simultaneous setup of up to three test angles, with commonly used angles including 7.5°, 15°, and 30°.
• Customizable Bending Time: Users can select different bending times tailored to the material's elasticity, ensuring precise measurements.
• User-Friendly Interface: The tester features a 7-inch touchscreen interface, simplifying operation with a visual menu for enhanced usability.
• Integrated Print Output: Equipped with a modular integrated thermal printer, the WTD-01 enables quick and easy printing of test results for efficient documentation.

Test Principle

The Bending Stiffness Tester measures the force required to bend a test piece, clamped at one end, through a specified angle—typically 15°. The bending force is applied at predetermined bending lengths (either 50 mm or 10 mm), and the bending resistance is calculated as the average of the measured forces. This ensures accurate and repeatable results, essential for quality control and research purposes.

Applications

• Packaging: Bending stiffness plays a vital role in ensuring that packaging materials retain their shape, providing adequate protection for contents during transport and handling.
• Printing: In high-speed printing applications, paper with appropriate bending stiffness is crucial to prevent operational issues, such as paper jams, enhancing overall efficiency.
• Paperboard Products: Products such as cartons and display boards benefit significantly from sufficient bending stiffness, contributing to their structural integrity and performance.

Specifications

Configuration Options

• Standard Configuration: Includes the WTD-01 Bending Stiffness Tester, paper roll, manual, calibration certificate, and power cord.
• Optional Configuration: Available standard weights and load cells for additional testing flexibility.

FAQs

1. What factors influence the bending stiffness of paper and board?

Several factors can influence the bending stiffness, including:

• Material Composition: The type of fibers used can significantly affect stiffness.
• Thickness: Thicker materials generally exhibit higher bending stiffness.
• Moisture Content: Variations in moisture can alter stiffness characteristics.
• Manufacturing Process: The method used to produce the paper or board plays a crucial role in its final properties.

2. How do I calibrate the Bending Stiffness Tester?

Calibration is performed by following the manufacturer's guidelines and using a calibration weight. Regular calibration ensures accurate and reliable measurements.

3. Can the Bending Stiffness Tester be used for materials other than paper?

While primarily designed for paper and board, the WTD-01 may also test some composite materials. Consult the manufacturer for specific applications.

4. What are the maintenance requirements for the Bending Stiffness Tester?

Regular maintenance involves cleaning the apparatus, checking for wear on moving parts, and ensuring the touchscreen interface is functioning correctly.

5. Is training required to operate the Bending Stiffness Tester?

While basic training is beneficial, the intuitive touchscreen interface makes the WTD-01 easy to use for operators with varying levels of experience.
