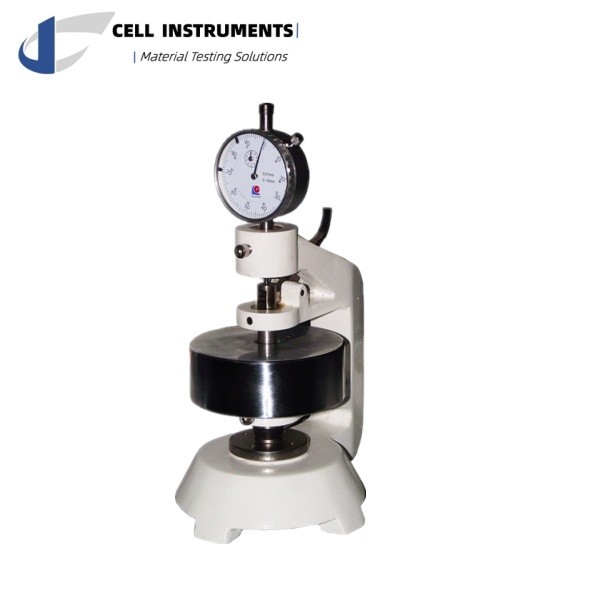

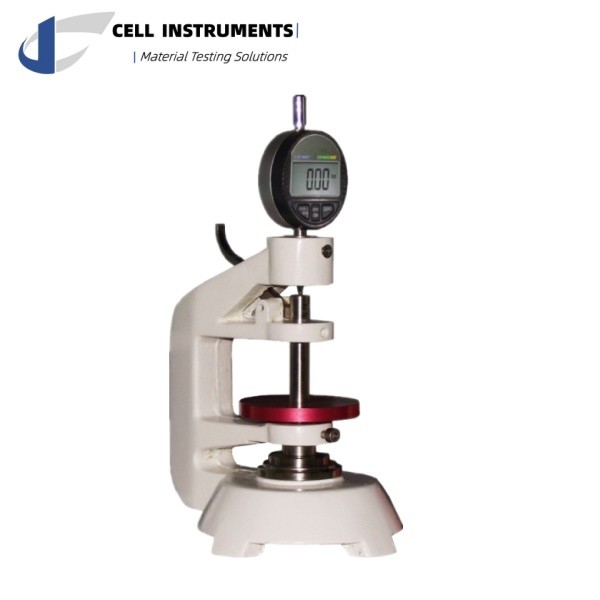

THD-01 Thickness Testing Gauge for Tissue Paper
Accurate Thickness Measurement for Paper Products

The THD-01 Thickness Testing Gauge is a precision instrument designed to measure the thickness and bulking thickness of tissue paper and its associated products under a controlled pressure of 2KPa. This versatile tool is essential for determining the quality and performance of tissue products, such as paper handkerchiefs, paper towels, napkins, and kitchen roll paper. The THD-01 Thickness Testing Gauge delivers highly accurate readings, ensuring that manufacturers, laboratories, and quality control departments can confidently assess the material properties of their paper-based products.

Key Features of the THD-01 Thickness Testing Gauge

The THD-01 Thickness Testing Gauge offers several advanced features that make it the ideal choice for precision thickness testing in the packaging, food, medical, and paper product industries.

• Wide Test Range: This gauge provides a broad testing range of 0 to 4 mm, making it suitable for a variety of tissue and paper products, including single-layer, sheet, and laminated products.
• High Resolution: With a resolution of 0.001 mm, the THD-01 Thickness Testing Gauge can detect even the smallest variations in material thickness, ensuring accurate and reliable measurements.
• Precise Contact Area: The contact area of 1000 ± 20 mm² ensures consistent pressure distribution across the test sample, minimizing measurement variability.
• Controlled Pressure: The instrument applies a precise pressure of 2 ± 0.1 KPa during testing, guaranteeing consistent results across different types of tissue products.
• Superior Surface Parallelism: The parallelism of the instrument's measuring surfaces is ≤ 0.001 mm, ensuring that the sample remains perfectly flat during testing, leading to accurate and repeatable measurements.
• Low Indication Error: With an indication error of ±0.05%, the THD-01 Thickness Testing Gauge ensures the highest level of measurement precision.

Working Principle of the Thickness Testing Gauge

The THD-01 Thickness Testing Gauge operates by measuring the thickness of tissue paper or tissue products at various stages of production. The measurement is performed by placing the sample between two parallel, horizontal faces. The lower face remains fixed, while the upper face (the pressure-foot) applies a controlled pressure of 2KPa. The upper face moves perpendicular to the lower face, pressing the sample and measuring its thickness with extreme accuracy.

This method is designed to assess the distance between the sample's resting position on the fixed reference plate and the pressure-foot. The pressure-foot has a diameter of 35.7 ± 0.1 mm, which provides a nominal area of 10.0 cm² for testing. The THD-01 Thickness Testing Gauge can be used to test both single-layer and multi-layer tissue products, making it versatile for various industry applications.

Applications of the THD-01 Thickness Testing Gauge

The THD-01 Thickness Testing Gauge is essential for industries that require consistent quality control of tissue and paper products. Its precise measurement capabilities make it suitable for:

• Tissue Paper Manufacturers: Ensuring the uniformity and quality of single-ply and multi-ply tissue paper.
• Paper Towel Producers: Verifying the thickness and bulk of paper towels to meet customer expectations.
• Napkin Manufacturers: Assessing the thickness of napkins for quality control and consistency in production.
• Kitchen Roll Paper Producers: Ensuring that kitchen roll paper meets the required thickness and bulk specifications.
• Laboratories: Conducting material testing for R&D and product development purposes.

Detailed Specifications of the THD-01 Thickness Testing Gauge

Why Choose the THD-01 Thickness Testing Gauge?

The THD-01 Thickness Testing Gauge is the go-to choice for businesses in the paper and packaging industries looking to ensure the consistent quality of their products. Its advanced features and high precision make it indispensable for companies aiming to comply with stringent industry standards and customer expectations. The ease of use, combined with its robust design, ensures that even complex thickness testing processes are simplified, allowing users to focus on delivering high-quality products.

How the THD-01 Thickness Testing Gauge Benefits Your Business

• Enhanced Product Quality: Accurate thickness measurements ensure that your tissue products meet the required quality standards, helping you avoid production flaws and maintain brand reputation.
• Cost Savings: By optimizing material usage based on precise thickness measurements, you can reduce material waste and improve operational efficiency.
• Regulatory Compliance: The THD-01 Thickness Testing Gauge helps ensure your products comply with industry standards, enhancing customer satisfaction and market competitiveness.
• Versatile Testing Capabilities: Whether you are measuring single-ply tissue paper or multi-layer laminated products, the THD-01 accommodates various applications, making it suitable for a wide range of industries.

Common Uses for the THD-01 Thickness Testing Gauge

• Single-Ply Thickness Measurement: Measures the thickness of a single ply of tissue paper under a static load of 2KPa.
• Sheet Thickness Measurement: Determines the thickness of a single sheet of tissue product, laminated or unlaminated, ensuring product consistency.
• Bulking Thickness Measurement: Measures the bulk of tissue products by calculating the thickness of several superimposed sheets, critical for assessing the performance and quality of the finished product.

FAQs About the THD-01 Thickness Testing Gauge

1. What is single-ply thickness?

   • Single-ply thickness refers to the distance between the two principal surfaces of a single ply of tissue paper, measured under a static load of 2KPa. It helps manufacturers ensure consistent product quality.

2. What is sheet thickness?

   • Sheet thickness is the distance between the two principal surfaces of a single sheet of tissue, whether laminated or unlaminated, measured under the same applied load.

3. What is bulking thickness?

   • Bulking thickness refers to the thickness of a tissue product calculated from the thickness of multiple superimposed sheets. This measurement is critical in determining the overall performance of the tissue product.

4. What industries benefit from the THD-01 Thickness Testing Gauge?

   • Industries such as packaging, food, medical, tissue paper manufacturing, and laboratories rely on the THD-01 Thickness Testing Gauge for quality control and material testing purposes.
