Best Cardboard Puncture Strength Testing Machine Corrugated Cardboard Puncture Measurement Instrument

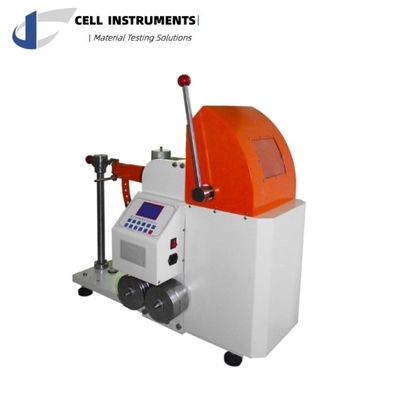

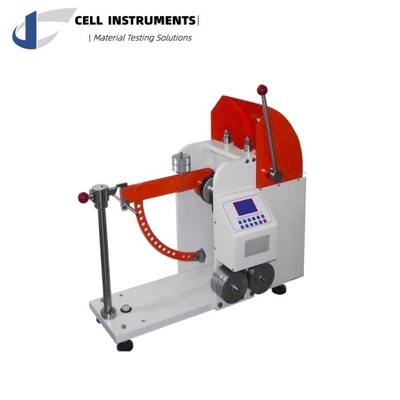

Introduction to the Cardboard Puncture Strength Testing Machine (PST-01)

The Cardboard Puncture Strength Testing Machine (PST-01) is an essential tool for evaluating the puncture resistance of corrugated and container boards. By measuring the energy required to puncture a material using a pyramidal point attached to a pendulum, this machine helps manufacturers and quality control labs assess the durability and toughness of their packaging materials. The test results are reported in "puncture units," a combination of the energy needed to tear and bend the material during the puncture process.

This Cardboard Puncture Strength Testing Machine is widely used in industries such as packaging, food, pharmaceuticals, and beverages, ensuring that packaging materials can withstand punctures and impacts during transport and handling.

Working Principle of the Cardboard Puncture Strength Testing Machine

The PST-01 Cardboard Puncture Strength Testing Machine operates using a puncture head, which is designed as a stainless steel right-angled triangular pyramid. This head is attached to a solid arm that swings under a controlled load through a precise arc. The specimen, typically cardboard or corrugated board, is clamped securely between two horizontal plates – one fixed and one spring-loaded.

As the pendulum arm swings, the puncture head penetrates the sample through a triangular hole in both plates. Once the puncture occurs, a collar affixed to the puncture head ensures that the hole remains open, preventing any braking effect on the pendulum. This ensures highly accurate and repeatable results.

Technical Features of the Cardboard Puncture Strength Testing Machine (PST-01)

1. High-Precision Control: The Cardboard Puncture Strength Testing Machine is equipped with a microcomputer control system that enables automatic data collection, statistics, storage, and printout of results. The intelligent judgment system provides real-time display of test outcomes.
2. User-Friendly Interface: The machine features an easy-to-use LCD display and PVC menu-type operation panel, allowing for smooth operation and configuration adjustments.
3. Versatile Test Range: Four adjustable gears (A, B, C, D) offer a test range of up to 48 joules, allowing you to test a variety of materials with different puncture resistance levels.
4. Sturdy Design: This machine is built with protective designs to prevent damage, ensuring long-term, stable performance even in high-volume laboratory environments.
5. Compliance with International Standards: The Cardboard Puncture Strength Testing Machine complies with globally recognized standards such as ISO 3036, TAPPI T803, DIN 53142, GB/T 2679, QB/T 1664, and SN T0262.

Why Choose the Cardboard Puncture Strength Testing Machine (PST-01)?

This Cardboard Puncture Strength Testing Machine is designed for industries where packaging strength and integrity are critical. By accurately measuring the puncture resistance of packaging materials, manufacturers can ensure their products are well-protected during shipping and handling.

Its versatile application across industries – including food, beverage, pharmaceuticals, and logistics – makes it a valuable asset for any laboratory or quality assurance department. Additionally, its compliance with international standards ensures the reliability of test results, which is crucial for maintaining product quality and adhering to industry regulations.

Core Applications of the Cardboard Puncture Strength Testing Machine

• Packaging Industry: Ensures that corrugated and container boards used for packaging can withstand impacts and punctures during transit.
• Food and Beverage Industry: Tests the integrity of packaging materials to prevent punctures that could lead to contamination or spillage.
• Pharmaceutical Industry: Helps to assess the durability of medical packaging, ensuring that products remain sterile and intact during handling.
• Quality Control Laboratories: Offers reliable data for testing puncture resistance in compliance with global standards, helping to improve product designs and packaging performance.

Technical Specifications of the Cardboard Puncture Strength Testing Machine

• Test Range: 1–48 J
• Four Adjustable Gears:
  • Gear A: <6J
  • Gear B: <12J
  • Gear C: <24J
  • Gear D: <48J
• Resolution: 0.001J
• Sample Size: 175 mm x 175 mm
• Pressure Head: 100 ± 2 KPa
• Friction Sleeve Resistance: <0.25J
• Pyramidal Head Dimensions: Edge Length 60 mm x 60 mm x 60 mm, Height 25 ± 0.7 mm
• Machine Dimensions: 900 mm x 410 mm x 800 mm
• Power Supply: AC 220V, 50Hz
• Weight: 110 kg

Standards Compliance

The Cardboard Puncture Strength Testing Machine is designed to meet the following international standards:

• ISO 3036: Corrugated Fibreboard Puncture Test
• TAPPI T803: Puncture Test for Containerboard
• DIN 53142: Testing of Packaging Materials
• GB/T 2679: Testing Methods for Puncture Resistance of Packaging
• QB/T 1664: Chinese Standard for Packaging Material Testing
• SN T0262: Standard Test Methods for Packaging Materials

Frequently Asked Questions (FAQs)

Q: What type of materials can be tested with the Cardboard Puncture Strength Testing Machine?
A: This machine is primarily designed to test corrugated and container boards. However, it can also be used for testing other materials that require puncture strength evaluation, such as paperboard and certain types of plastic packaging.

Q: How does the pendulum function in the puncture test?
A: The pendulum is attached to an arm with a 90-degree circular arc. It swings freely and punctures the sample with a right-angled triangular pyramid head. The machine measures the energy required for the pendulum to puncture the sample, providing a reliable indication of the material's puncture resistance.

Q: Can the Cardboard Puncture Strength Testing Machine store test results?
A: Yes, the machine features a microcomputer control system that can store, print, and display real-time test results, making data management and analysis easier for quality control professionals.

Q: What is the significance of the collar attached to the puncture head?
A: The collar is designed to adhere to the specimen after penetration. It keeps the puncture hole open and prevents any braking action on the pendulum, ensuring the accuracy of the test results.

Q: What industries typically use this machine?
A: The Cardboard Puncture Strength Testing Machine is widely used in industries such as packaging, food, pharmaceuticals, and beverages, as well as in quality control laboratories.
