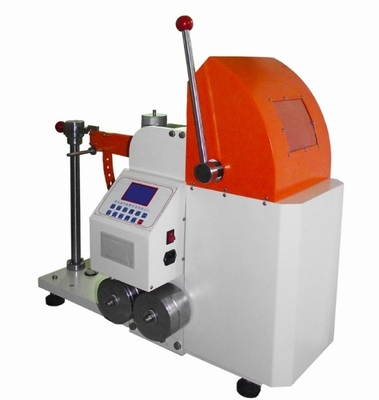

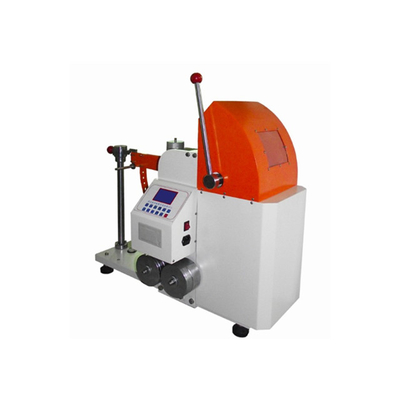

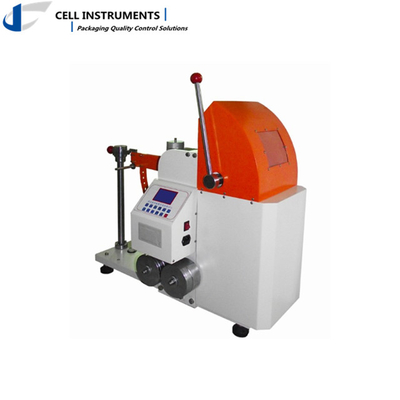

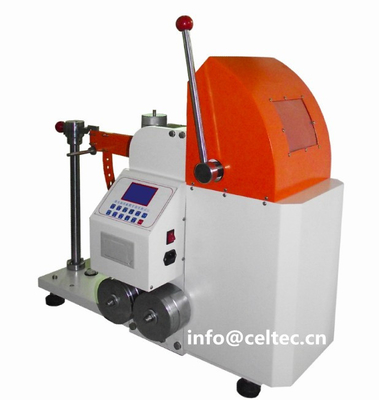

Puncture Tester Board Puncture Strength Tester ISO 3036 Puncture Tester Pendulum Puncture Tester For Paper And Board

The Board Puncture Strength Tester is a highly efficient and precise testing instrument designed to measure the energy required to puncture paperboard and other similar materials. This tester helps manufacturers, quality control labs, and research institutions evaluate the puncture resistance of packaging materials, ensuring that they meet stringent industry standards.

Whether you're working in packaging, food, pharmaceuticals, beverages, or any other sector that requires material strength testing, the Board Puncture Strength Tester provides reliable, repeatable results essential for quality assurance and product development.

How the Board Puncture Strength Tester Works

The Board Puncture Strength Tester operates based on a pendulum system that measures the energy required to puncture a material using a pyramidal head. The test simulates real-world conditions, where the material is subjected to puncture forces during packaging, storage, or transportation.

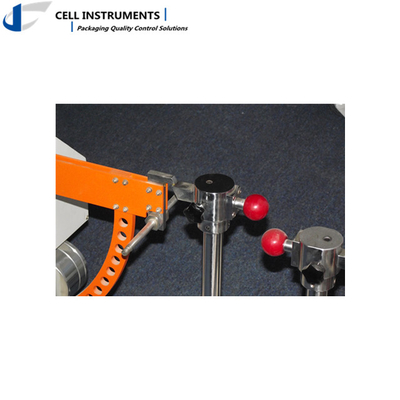

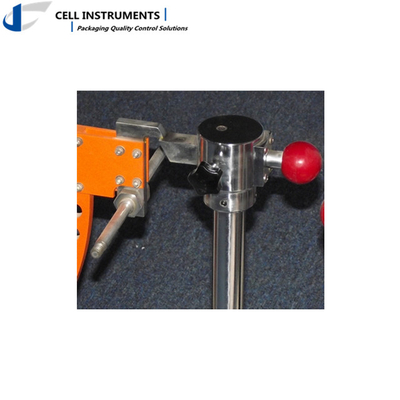

A stainless steel right-angled triangular pyramid is attached to a pendulum arm. The arm swings through an arc and strikes the specimen, which is clamped between two horizontal plates. The upper plate is fixed, while the lower plate is spring-loaded. This allows for precise contact with the material, and the pyramidal head penetrates the specimen with controlled force. A collar on the puncture head ensures that the hole stays open during testing, preventing unwanted resistance from affecting the pendulum’s motion.

This method effectively measures the puncture resistance, tear energy, and bending energy required for the material to yield under force. The Board Puncture Strength Tester provides an in-depth analysis of material performance, offering critical data to manufacturers aiming to improve packaging durability and optimize material selection.

Key Features of the Board Puncture Strength Tester

1. PVC Menu Type Operation Panel
   The user-friendly interface makes the Board Puncture Strength Tester easy to operate, even for novice users. The simple menu structure ensures seamless navigation through testing procedures.

2. Microcomputer Control with Data Management
   The advanced microcomputer control system allows the tester to store, analyze, and print test data. This feature facilitates automatic data recording and real-time test result displays, making it ideal for high-throughput environments.

3. Intelligent Test Control
   The tester features intelligent judgment and automatic measurement functions, delivering accurate, repeatable test results with minimal human intervention.

4. Four Gear Settings
   The Board Puncture Strength Tester comes with four adjustable gear settings to accommodate a wide range of materials and testing conditions:

   • A Gear: <6J
   • B Gear: <12J
   • C Gear: <24J
   • D Gear: <48J

5. Durable and Stable Performance

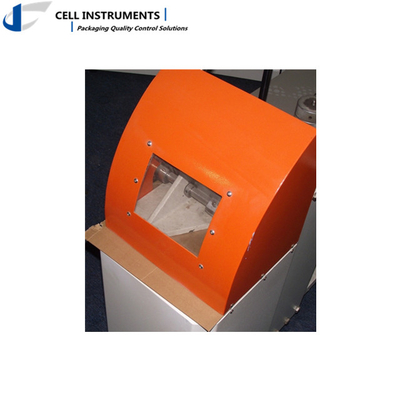

   The Board Puncture Strength Tester is designed for durability and consistent performance, even under continuous testing conditions. With a robust frame and protective design, this instrument ensures reliable long-term operation.

6. Precision Testing
   The tester is capable of measuring puncture energy with a resolution of 0.001J, providing highly accurate results for precise analysis.

7. Automatic Data Storage and Printing
   With built-in data storage and printing capabilities, the Board Puncture Strength Tester simplifies test result documentation and enables easy sharing and reporting.

8. Comprehensive Protection Design
   The tester’s protective features ensure both user safety and equipment longevity, making it an ideal choice for high-volume testing in research or production environments.

Technical Specifications

Standards Compliance

The Board Puncture Strength Tester is designed to meet a variety of industry standards, ensuring the accuracy and reliability of test results:

• ISO 3036
• ASTM D 781
• DIN 53142
• TAPPI T 803
• GB/T 2679.7
• QB/T 1664

Applications of the Board Puncture Strength Tester

The Board Puncture Strength Tester is primarily used to evaluate the puncture resistance of packaging materials such as paperboard, corrugated board, and other related substrates. Its applications include:

• Packaging Industry: Ensures that materials are strong enough to withstand puncture damage during shipping, handling, and storage.
• Food and Beverage Packaging: Tests the durability of materials used in food and beverage containers to ensure they provide sufficient protection during transport.
• Pharmaceuticals: Assesses the integrity of packaging materials used for sensitive pharmaceutical products that require secure, puncture-resistant packaging.
• Paper and Board Manufacturers: Helps paper mills and board manufacturers optimize their products for strength and durability.
• Research and Development: Supports R&D efforts by providing critical data for developing new materials with superior puncture resistance.

Why Choose the Board Puncture Strength Tester?

The Board Puncture Strength Tester is designed to offer unmatched precision and ease of use, making it an essential tool for any laboratory or production facility that needs to assess the puncture resistance of materials. Whether you are testing food packaging, medical device packaging, or industrial materials, this versatile instrument ensures that your materials meet industry standards for durability and performance.
