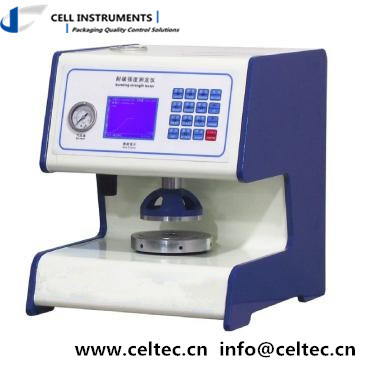

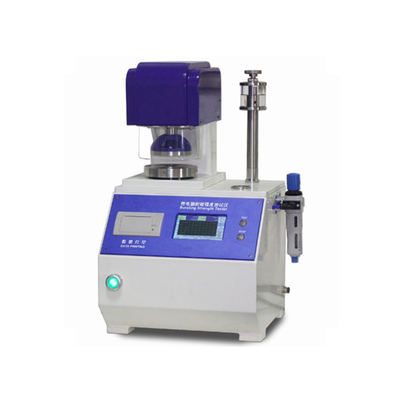

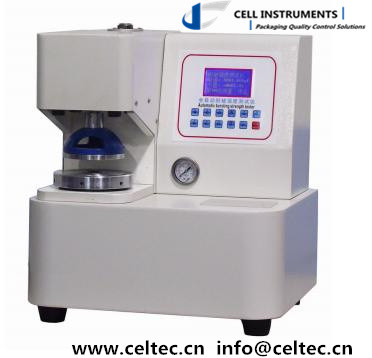

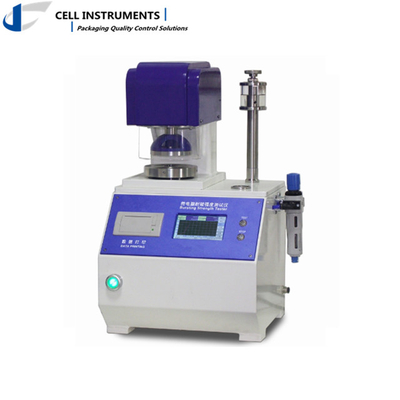

ISO 2759 board burst strength tester is for the bursting strength of corrugated boards, which is designed in accordance with ISO2759 'Board-Determination of bursting strength'.
Board burst strength tester principle:
A test piece, placed over a circular elastic diaphragm, is rigidly clamped at the periphery but free to bulge with the diaphragm. Hydraulic fluid is pumped at a constant rate, bulging the diaphram until the test piece rutures. The bursting strength of the test piece is the maxium value of the applied hydraulic pressure.
ISO 2759 board burst strength tester Technical features
1. LCD display and PVC operation panel
2. Automatic test process, automatic bursting judgment
3. Microcomputer real time data collection and data memory
4. Micro printing
5. Synchronous motor drive for stable and precise pressure output
Technical data
| Measuring Range | 150~6000kpa |
| Resolution | 0.01 kpa |
| Plates Concentricity | 0.25 mm or less(≤0.25mm) |
| Diaphragm resistance | bulge height 10mm/(170～220)kPa, bulge height 18mm/(250～350)kPa |
| Pressure Plate Diameter | upper:31.5±0.5mm, lower: 31.5±0.5mm |
| Display | 4.0 in. LCD with curve display |
| Clamping Force | ≥690kpa (adjustable) |
| Unit Conversion: | Kg/cm2, kpa, LBF/in2 |
Standards
ISO2759, GB1539, GB/T6545
.
