Paper Bursting Strength Tester Board Burst Tester Mullen Bursting Force Tester For Paperboard

Place of Origin China
Brand Name Cell Instruments
Certification CE
Model Number PNP-01
Minimum Order Quantity 1 SET
Price Get An Offer
Packaging Details Plywood Carton
Delivery Time 3~5 days
Payment Terms TT, LC
Supply Ability At Stock

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Electronic Product Name Corrugated Board Burst Strength Tester
Warranty 12 Months Usage Paper Testing Instrument,Auto Testing Machine,bursting Tester
Application Paper And Boards,paper Or Board,paper And Board Burst Pressure Testing Machine,textile
Leave a Message
Product Description

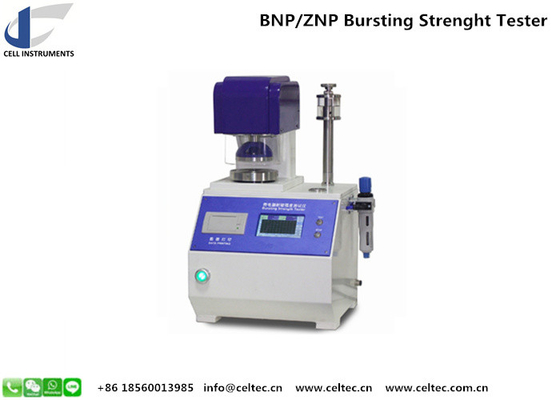

 Paper Bursting Strength Tester Board Burst Tester Mullen Bursting Force Tester For Paperboard

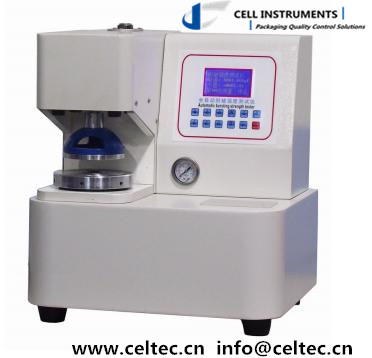

 Paper Bursting Strength Tester Board Burst Tester Mullen Bursting Force Tester For Paperboard 0

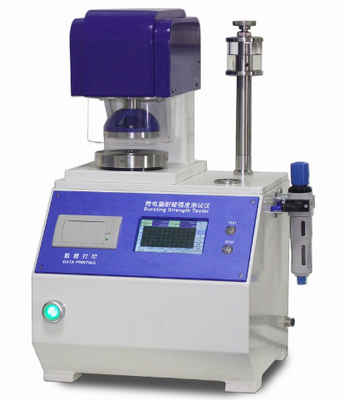

Paper Bursting Strength Tester – Accurate, Reliable Testing for Paper and Board

The Paper Bursting Strength Tester is a state-of-the-art testing instrument designed to accurately measure the bursting strength of paper and corrugated boards. Essential for quality control in packaging, food, pharmaceutical, and other industries, this instrument ensures that materials meet the highest standards for durability and reliability. Whether you're working with paperboard, corrugated sheets, or other paper-based materials, the Paper Bursting Strength Tester offers unparalleled precision and performance.

Key Features of the Paper Bursting Strength Tester:

  • 5-inch Touch Screen Operation: User-friendly interface for quick and easy operation. The touch screen enables efficient navigation through various settings and tests.

  • High-Strength, High-Pressure Oil Circuit Sealing System: Ensures durability and stability with double seal knobs to prevent leakage and enhance system longevity.

  • Delayed Pressurization and Pressure Relief Control: This feature allows for more precise control of pressure, ensuring consistent test results and longer device lifespan.

  • Water Vapor Filter and Protection Circuit Device: Provides additional protection, ensuring the instrument operates efficiently under various environmental conditions. It enhances the overall accuracy and stability of the results.

  • Calibration and Manual Pressurization Systems: Offers flexibility for both automated and manual control, allowing the operator to adjust pressure settings for different materials.

  • 304 Stainless Steel Construction: The upper and lower clamping parts, along with the cylinder section, are made of durable stainless steel, ensuring the tester’s long-lasting performance.

  • Safety Features: Equipped with a safety cover and power supply anti-interference protection module to guarantee the safety of the operator and the device.

  • Dual Language Support (Chinese & English): The interface allows for easy switching between Chinese and English, providing convenience for global users.

  • Unit Conversion: The Paper Bursting Strength Tester supports multiple units of measurement, including kg/cm², kPa, and lbf/in², offering flexibility to users across various regions and industries.

  • Micro Printing Capability: Enables precise documentation of results, enhancing traceability and accuracy for quality assurance and compliance.

Specifications of the Paper Bursting Strength Tester:

  • Model ZNP-01 (for Paper): Measurement range of 70~1600 KPa, designed specifically for paper materials.
  • Model BNP-01 (for Board): Measurement range of 150~5600 kPa, suitable for corrugated boards and thicker paper materials.
  • Force Resolution: 1/100,000 for highly accurate readings.
  • Resolution: 0.01 KPa for the finest granularity in measurements.
  • Diaphragm Resistance: (9±0.2)mm/(30±5)kPa for optimal testing conditions.
  • Hydraulic Volume Transmission: 95±5ml/min (for paper), 175±5ml/min (for board), ensuring consistent pressure delivery during the test.
  • Adjustable Clamping Force: Ranging from 100 kPa~1200 kPa, which allows for versatile testing of various paper and board materials.
Item ZNP-01 Paper Bursting Tester BNP-01 Board Bursting Tester
Measurement Range 70~1600kpa(paper) 150 ~5600kpa (board)
Force Resolution 1/100000
Data Analysis Sampling Sampling Frequency) 400 times/second
Force Accuracy ±0.1% (20~100% Full Scale)
Accuracy ≤±0.5%
Resolution 0.01kpa
Deformation Error ≤1mm
Concentricity of Upper and Lower Plates ≤0.25mm
Diaphragm Resistance (9±0.2)mm/(30±5)kPa
Oil Feeding Speed 95±5ml/min(paper) 175±5ml/min(board)
Platen Diameter Upper:30.5±0.1mm ; Upper:31.5±0.1mm ;
  Lower:33.1±0.1mm(paper) Lower:31.5±0.1mm(board)
Air Source 0.6~0.7Mpa
Display 5in Touch Screen
Testing Control Equipped with delayed pressurization control and pressure release delay control.
Clamping Force Adjustable pressure range from 100kPa to 1200kPa with a stabilizing function to ensure consistent clamping force.
Oil Cup System High-Strength High-Pressure Oil Circuit Sealing System with Dual Sealing Knobs, (25mm High-Pressure 304 Stainless Steel Oil Pipe
Circuit Board Chip Protection Equipped with a built-in water vapor filtration device to ensure the stability of the circuit.
Calibration System Includes a built-in calibration system and a self-contained manual pressure and pressure release control system.
Material of Testing Head The oil cylinder section, upper clamping, and lower clamping parts are all made of 304 stainless steel.
Safety Devices Comes with a protective cover and a power supply anti-interference protection module.
Language Switching Allows for free switching between Chinese and English languages.
Unit Conversion Kg/cm2,kpa,lbf/in2
Print Output Modular Integrated Thermal Printer

Applications of the Paper Bursting Strength Tester

The Paper Bursting Strength Tester is widely used in various industries for the following applications:

  • Packaging: Ensuring the strength and durability of paper and corrugated boards used in packaging materials.
  • Food and Beverage: Testing the integrity of paper-based packaging in contact with food and beverages.
  • Pharmaceuticals: Ensuring that packaging materials for pharmaceutical products can withstand handling and pressure during transport.
  • Textiles and Paper Products: Quality control for paper products and textiles that require specific strength thresholds.

Why Choose Our Paper Bursting Strength Tester?

  • Enhanced Accuracy: With a high-resolution force system and advanced hydraulic volume transmission, this tester delivers highly accurate results every time.
  • Durability and Reliability: Built with high-quality materials, such as stainless steel, and featuring an advanced sealing system, the Paper Bursting Strength Tester is built to last.
  • Ease of Use: The intuitive touch screen and dual language interface make the tester accessible to users worldwide, while the adjustable settings ensure it can be tailored to different materials.
  • Flexible Testing: With adjustable pressure and clamping force, the tester is versatile enough to handle a wide variety of materials, from lightweight paper to heavy-duty board.

The Paper Bursting Strength Tester is an indispensable tool for anyone in need of precise and reliable bursting strength testing for paper and corrugated materials.

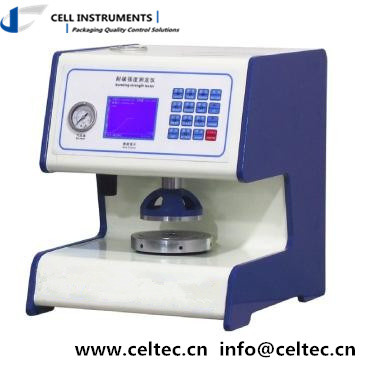

Paper Bursting Strength Tester Board Burst Tester Mullen Bursting Force Tester For Paperboard 1
