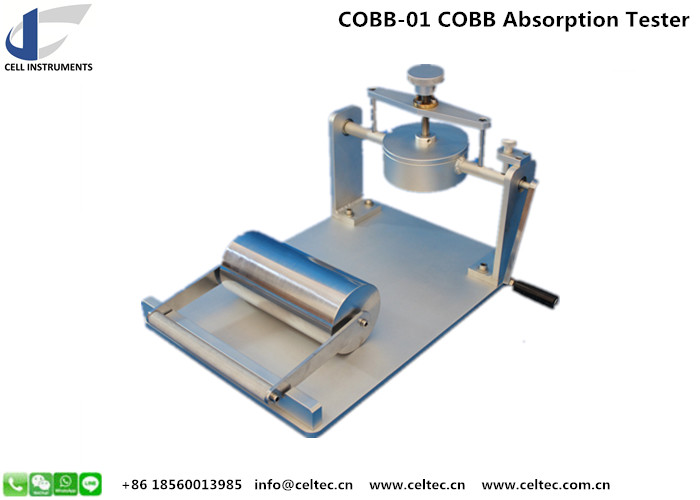

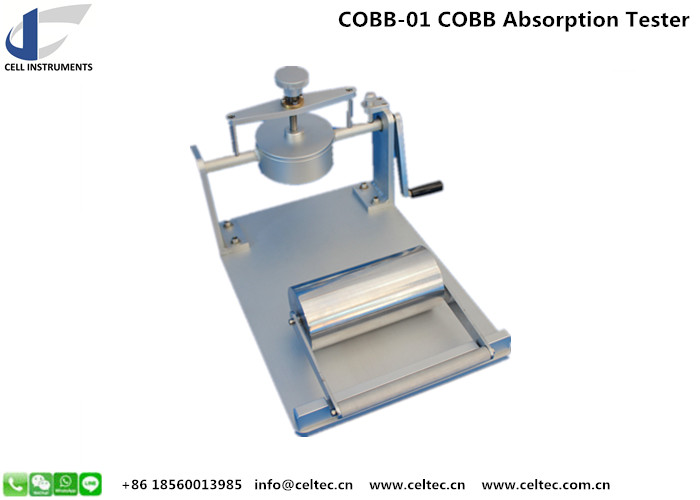

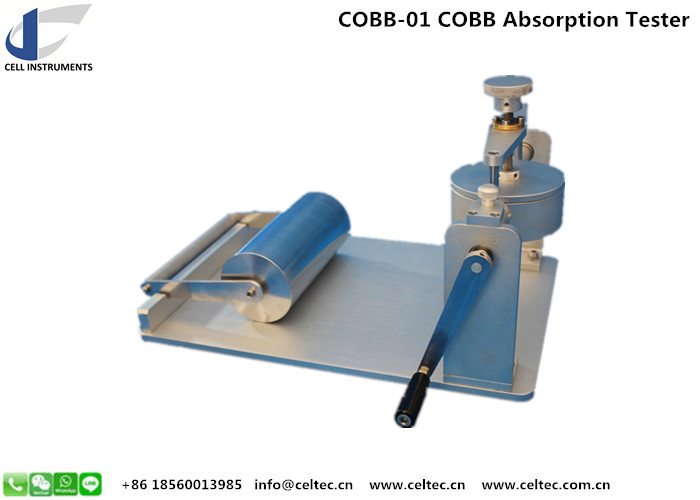

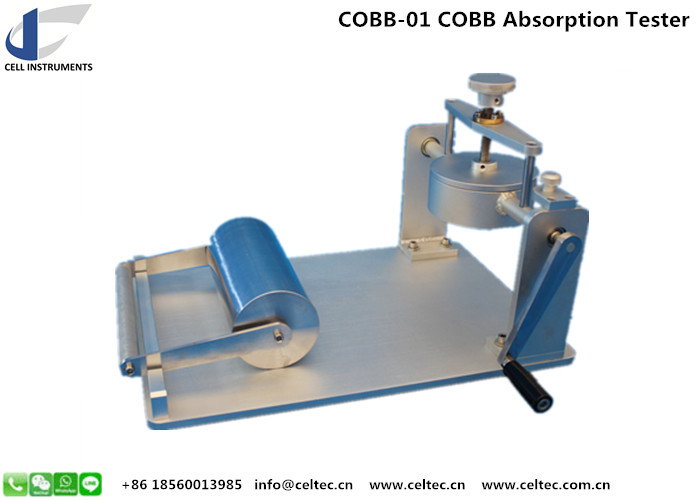

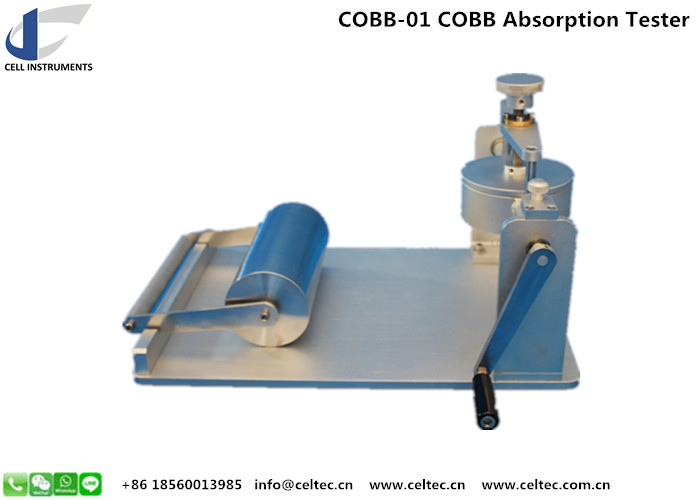

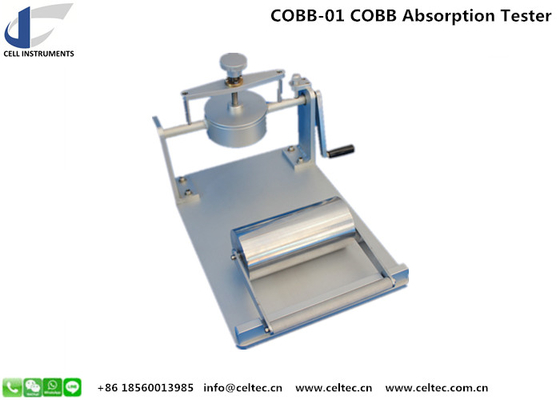

Iso 535 Cobb Absorption Tester 10kg Metal Roller Blotting Paper Cobb Tester
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Usage | Paper Testing Instrument | Warranty | 1 Year |
|---|---|---|---|
| Application | Paper And Boards |
Product Description
ISO 535 COBB absorption tester is for the measurement of surface water absorption of paper and paper board. Loose paper, e.g. newsprint, unsized paper, e.g. blotter and other high absorbability paper is not for this tester.
ISO 535 COBB Absorption Tester Principle
The Cobb value of surface water absorption of paper and paperboard.:
The calculated mass of water absorbed in a specified time by a unit area of paper or board under specified pressure and temperature conditions. It is expressed in g/㎡.
C=(G2-G1)×100.
C-water absorptiveness
G2-wet mass, in grams, of the test piece
G1-dry mass, in grams, of the test piece
When Cobb value is less than 200～250 g/㎡ for single layer, more layers can used.
ISO 535 COBB Absorption Tester Technical Data
|
Metal roller sectional area |
100±0.2㎝2 |
|
Metal roller diameter |
112.8±0.2mm |
|
Roll height |
50mm |
|
Blotting paper: |
200～250g/㎡ |
|
Absorption speed: |
75mm/10min |
|
Smooth metal roller: |
length 200±0.5mm,mass10±0.5kg. |
| Water volume: | 100mm±5ml. |
ISO 535 COBB Absorption Tester Standard
ISO 535,GB/T 1540,QB/T 1668
Configuration
mainframe,metal roller,Cobb absorption sampler
