Crush Tester(ring crush, edge crush, flat crush, plybond adhesion) RCT ECT FCT tester
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | Electronic | Usage | Paper Testing Instrument |
|---|
Product Description

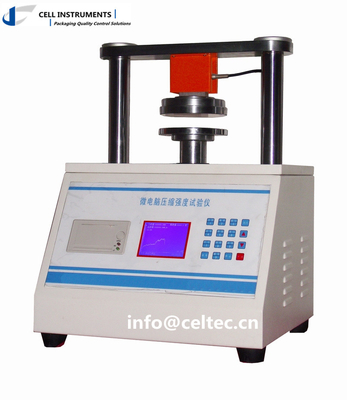

Crush Tester(ring crush, edge crush, flat crush, plybond adhesion) is used for the ring crush(RCT) for paper with thickness between 0.15 and 1mm, edge crush(ECT), plybond adhesion (PAT) and flat crush(FCT) test for board. It can also be used for the compression test (CMT) for tube with diameter less than 60mm.
Crush Tester(ring crush, edge crush, flat crush, plybond adhesion) Features
1Four test modes of RCT, ECT, FCT and PAT available
2. Microcomputer control, auto measuring and intelligent test result judgment, auto returning.
3. Real time display of curve, data auto collecting, calculating, analysis, storage and printing.
4. LCD display, PVC operation manual
5. Synchronous motor drive for precise pressure output.
Crush Tester(ring crush, edge crush, flat crush, plybond adhesion) technical data
| Test range | 5-3000N |
| Accuracy | ≤±1% |
| Resolution | 0.01N |
| Platen parallelism | ≤0.05mm |
| Upper platen diameter | 125mm |
| Lower platen diameter | 125mm |
| Compression speed | 12.5±1mm/min |
| Stroke | 80mm |
Crush Tester(ring crush, edge crush, flat crush, plybond adhesion) Standard
ISO 12192, ISO 3035, ISO 3037, ISO 7263, GB/T2679.6, GB/T6546, GB/T2679.8, GB/T6548
We are professional manufacturer of instruments and devices, covering testing instruments, PLC and customer-made machinery.
We have few lines of material testing instruments
1) Plastic film, bag, polymer testing
2) Paper and board testing
3) Bottle and container testing
4) Medical packaging testing
5) Other customized
