Product Description

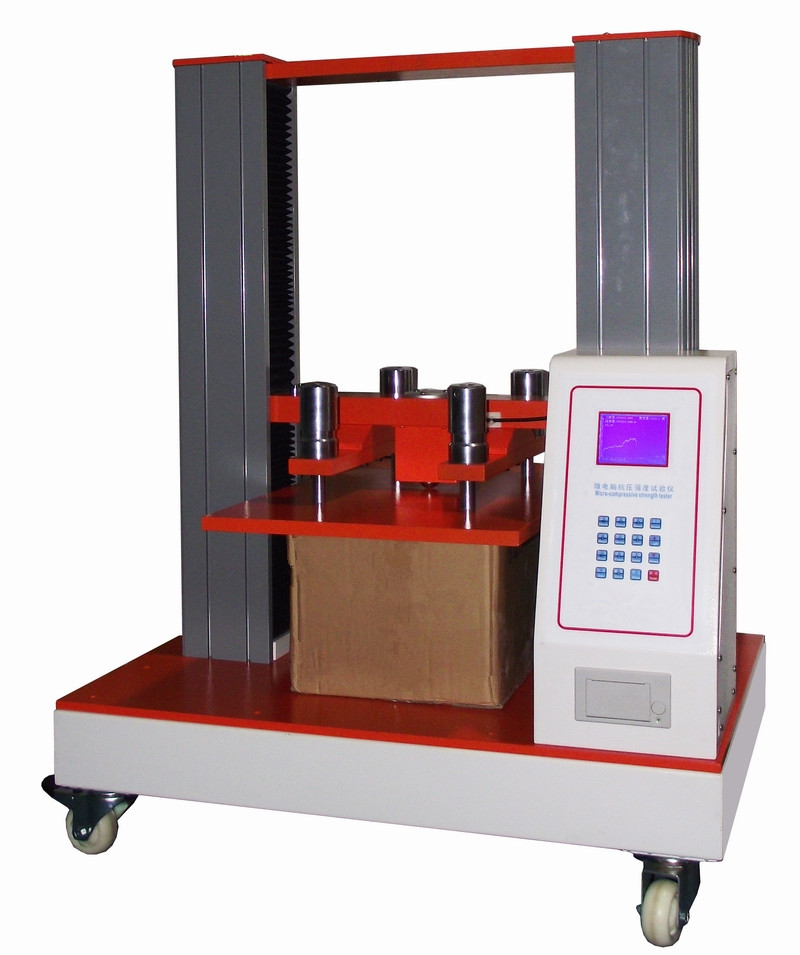

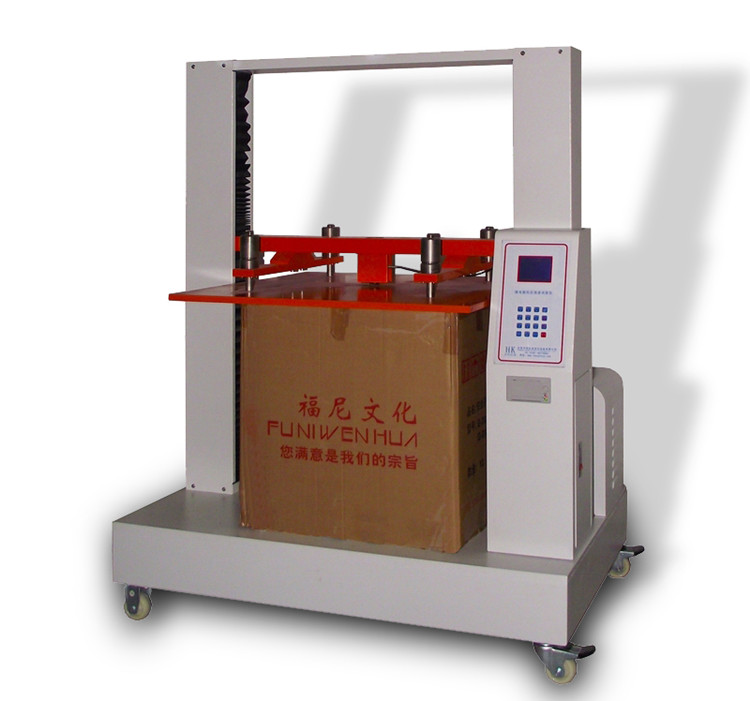

Box Compression Tester
| Item | Parameters |
| Test Range | 0.25KN, 0.5KN, 1KN, 2KN, 5KN, etc |
| Resolution | 0.01N |
| Deformation error | ≤±1mm |
| Plate parallelism | ≤1mm |
| Loadcell Error | ±1% |
| Test Speed | 5~300mm/min |
| Return Speed | 100mm/min |
| Compression Speed | 10±3mm/min |
| Stacking Speed | 5±1mm/min |
| Units | N/Lbf /kgf |
| Analysis | 7-inch touchscreen with curve analysis and integrated thermal printing |
| Output | RS232 (optional) |
| Power | AC 220V 50Hz |
| Model | Test Space (mm, LWH) |
| BCT-1500 | 1500*1500*1500 |
| 1500*1200*1500 | |
| BCT-1200 | 1200*1200*1200 |
| 1200*1000*1200 | |
| BCT-1000 | 1000*800*1000 |
| 1000*1000*1000 | |
| BCT-800 | 800*600*800 |
| 800*800*800 | |
| BCT-600 | 600*400*600 |
| 600*600*600 | |
| BCT-500 | 500*500*500 |
The Box Compression Tester is an essential instrument designed for evaluating the compression strength and stacking capability of medium and small packaging solutions, particularly corrugated cartons. This robust tester is crucial for industries like packaging, food, medicine, and beverages, ensuring that your products can withstand various stress conditions during shipping and handling.
Technical Features
The Box Compression Tester boasts a user-friendly design with an LCD display and a comprehensive PVC operation manual. Engineered with a microcomputer processing system, it facilitates automatic measurements and intelligent judgment of test results. Its advanced microcomputer technology allows for efficient data collection and computation, which can be easily printed via an integrated microprinter.
Real-time monitoring is a standout feature, providing immediate feedback on compression resistance force, deformation, and a changing curve that helps assess the packaging's integrity. This tester offers three distinct test modes: compression resistance, stacking tests, and compression under fixed time and pressure, catering to various testing needs.
The synchronous motor ensures precision in operation, while the accurate thread lead screw drive system enhances reliability. The Box Compression Tester is a critical tool for quality assurance in packaging and materials testing.
Technical Data
- Pressure Range: 0-10KN
- Force Resolution: 0.1N
- Display Error: ±2%
- Deformation Measurement Accuracy: ±1mm
- Compressing Speed Adjustable Range: 5mm/min to 90mm/min
- Compressing Speed Relative Error: ±3% (within 5 to 90mm/min)
- Standard Compressing Speed: 12mm/min
- Stacking Test Speed: 5mm/min
- Lower Platen Stroke: 800mm
- Test Space Dimensions: 400mm (L) x 600mm (W) x 600mm (H)
- Upper and Lower Platen Parallelism Degree: ≤1mm
- Overall Dimensions: 850mm (L) x 600mm (W) x 1100mm (H)
- Weight: 200kg
- Standards: ISO 2874, TAPPI T804
This high-performing Box Compression Tester not only adheres to industry standards but also enhances your laboratory's efficiency, allowing for thorough testing of packaging materials.
