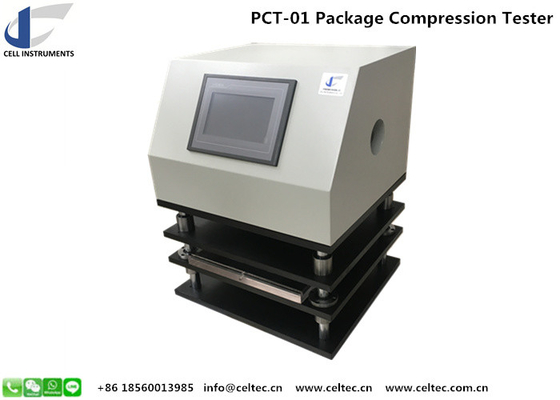

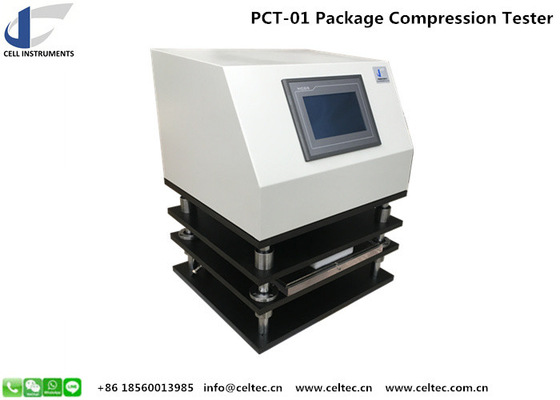

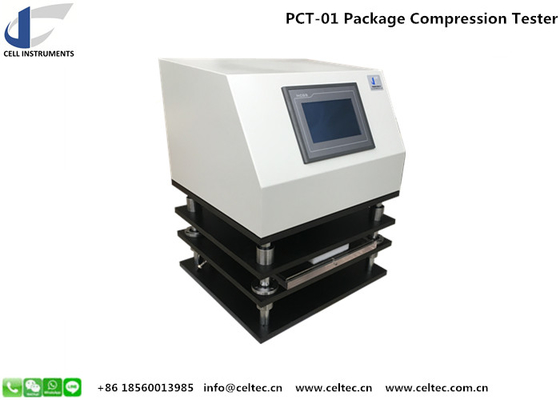

Medical use liquid fill pack compression leak tester Liquid filled pack compression force tester is used for pressure resistance measurement of composite film pack , paper cup/bowl, etc., which are used in food, medicine, cosmetics etc. It can also be applied to infusion bags, plastic infusion bottles, blood bags, ice bags, etc.
Test principle

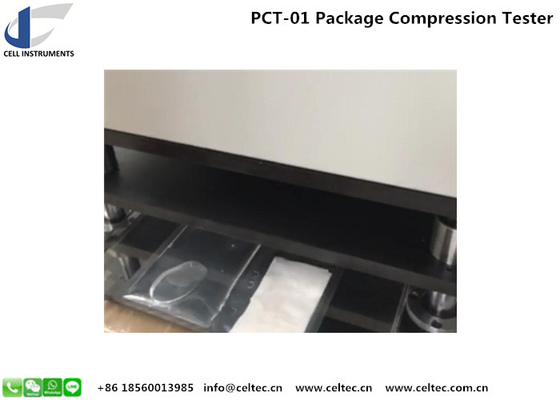

The sample to be tested is placed between the upper and lower pressure plates, and the upper pressure plate is operated downward, and the force value of the lower pressure plate is collected in real time to test the bursting performance of the package and constant pressure resistance capacity.
Medical use liquid fill pack compression leak tester Liquid filled pack compression force tester Technical characteristics

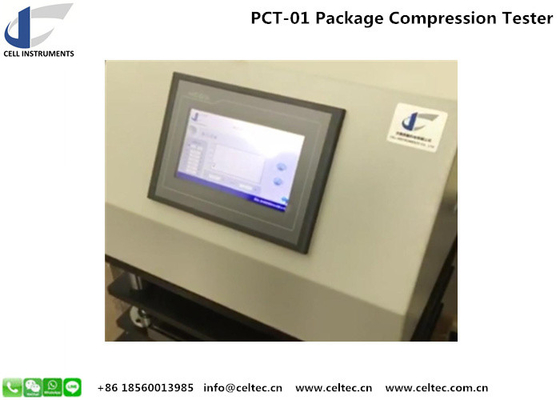

1. HMI touch screen parameter setting and test operation
2. Industrial grade PLC control system
3. Two test modes of maximum bursting force test and constant pressure resistance
4. Automatic constant pressure compensation adjustment function
5. with automatic data statistics
6. Liquid collection device to avoid contamination in case of sample rupture
7. Non-standard test size can be customized
8. Professional software is an option
Medical use liquid fill pack compression leak tester Liquid filled pack compression force tester specification
| Measuring range | 2000N (other optional) |
| Measurement accuracy | 0.5 % |
| Time range | 0~10000S |
| Platen size | 250mm*300mm (can be customized) |
| Power supply | 220V, 50HZ |
| Dimension | 460mm*410mm*590mm |
Standards
GB/T 10004, YBB 00112005
