DIGITAL TORQUE TESTER TORQUE WRENCH TESTER DYNAMIC TORQUE METER TORQUE MEASURING INSTRUMENT

Place of Origin	China
Brand Name	Cell Instruments
Certification	CE
Model Number	TT-01
Minimum Order Quantity	1 SET
Price	Get An Offer
Packaging Details	Plywood Carton
Delivery Time	3~5 days
Payment Terms	TT, LC
Supply Ability	At Stock

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Usage	Digital Cap Torque Tester	Type	Torque Measuring Instrument
Range	10Nm Or Others	Power	110~240V
Output	HMI Touch Screen And Microprinter

Leave a Message

Product Description

Digital torque tester is used for the measurement of the open force and lock force of the caps of medicine bottles, PET bottles, spout bags and flexible tube packages.

Digital torque tester can determine the proper lock and open force of caps in production and thus guide the transportation and consumption process.

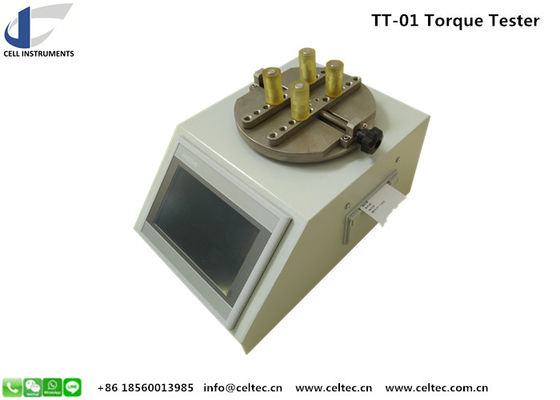

DIGITAL TORQUE TESTER TORQUE WRENCH TESTER DYNAMIC TORQUE METER TORQUE MEASURING INSTRUMENT 0

Digital torque tester Technical data

Test Range	10 Nm
Accuracy	1% FS
Resolution	0.001 Nm
Clamp Range	Φ5mm～Φ170mm
Dimension	240×350×270 mm

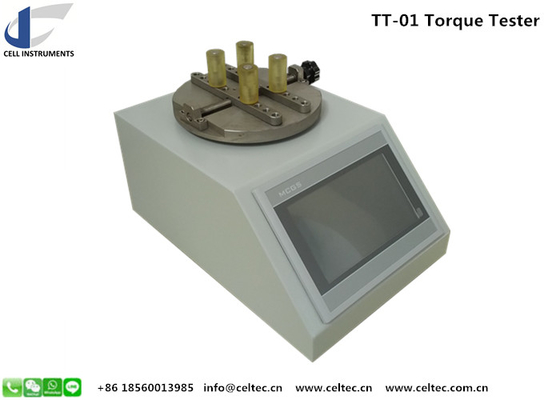

DIGITAL TORQUE TESTER TORQUE WRENCH TESTER DYNAMIC TORQUE METER TORQUE MEASURING INSTRUMENT 2

Digital cap torque tester Technical features

PLC control unit and touch screen operation
Both locking and opening force can be measured
Peak value auto keeping
Micro printer for easy data recording
RS232 port and professional computer software (optional)
protection, auto zeroing function

Standards

ASTM D 2063, ASTM D3198, ASTM D3474, GB/T17876, BB/T0025, BB/T0034

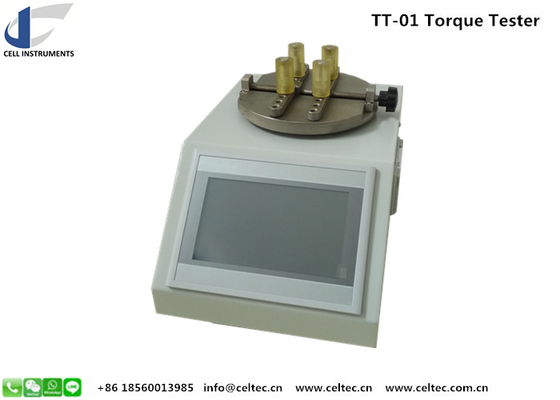

DIGITAL TORQUE TESTER TORQUE WRENCH TESTER DYNAMIC TORQUE METER TORQUE MEASURING INSTRUMENT 3

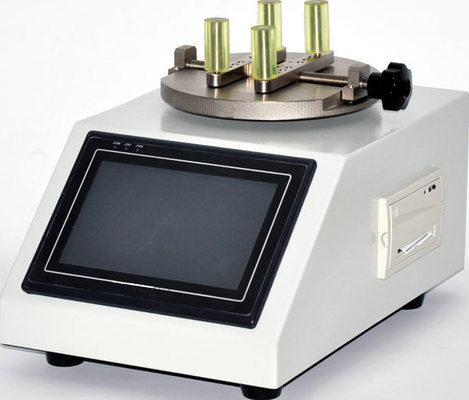

DIGITAL TORQUE TESTER TORQUE WRENCH TESTER DYNAMIC TORQUE METER TORQUE MEASURING INSTRUMENT 4

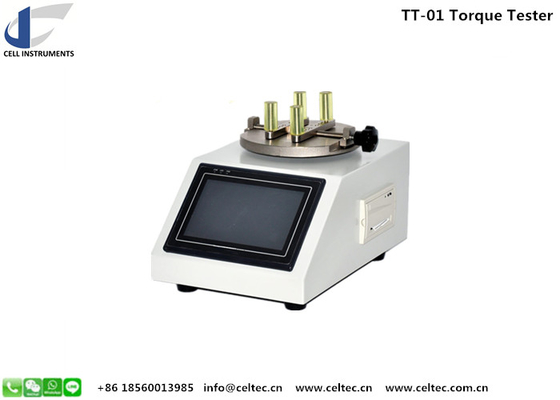

DIGITAL TORQUE TESTER TORQUE WRENCH TESTER DYNAMIC TORQUE METER TORQUE MEASURING INSTRUMENT 5
