BOX AND CARTON COMPRESSIVE FORCE TESTER BCT COMPRESSING TESTING MACHINE

  • BOX AND CARTON COMPRESSIVE FORCE TESTER BCT COMPRESSING TESTING MACHINE
  • BOX AND CARTON COMPRESSIVE FORCE TESTER BCT COMPRESSING TESTING MACHINE
  • BOX AND CARTON COMPRESSIVE FORCE TESTER BCT COMPRESSING TESTING MACHINE
  • BOX AND CARTON COMPRESSIVE FORCE TESTER BCT COMPRESSING TESTING MACHINE
Place of Origin China
Brand Name Cell Instruments
Certification CE
Model Number CST-S
Minimum Order Quantity 1 SET
Price Get An Offer
Packaging Details Plywood Carton
Delivery Time 3~5 days
Payment Terms TT, LC
Supply Ability At Stock

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Box Compression Tester Testing Space 400mm(L)*600mm(W)*600mm(H) Or Large
Display Touch Screen Color Force Range 10KN Or Others
Leave a Message
Product Description

BOX AND CARTON COMPRESSIVE FORCE TESTER measures the strength and stacking ability of medium and samll size packagings like corrugated carton.



BOX AND CARTON COMPRESSIVE FORCE TESTER Features

  1.  Touch screen operation
  2.  Microcomputer processing system, automatic measurement, test result intelligent judging, self-return
  3.  Auto data collecting and computing,
  4.  Embedded micro printer
  5.  Real-time display of compression force, deformation and curve
  6.  Three test modes of compression resistance, stacking and compression at fixed time and pressure
  7.  Synchronous motor and accurate thread lead screw drive system

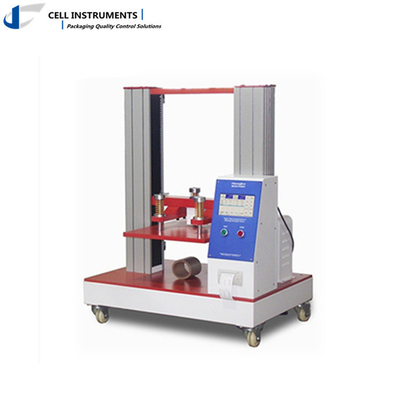

BOX AND CARTON COMPRESSIVE FORCE TESTER BCT COMPRESSING TESTING MACHINE 0



Technical Data of BCT CARTON COMPRESSING AND STACKING TESTER

Pressure range
0-10KN(other load available)
Force resolution 0.1N
Display variation ≤2%
Compressing speed range 5mm/min～90mm/min
compressing speed 12mm/min
Stacking test speed 5mm/min
Lower platen stroke 800mm
Test space 400mm(L)*600mm(W)*600mm(H)
Other Spaces Available 600mm*800mm*800mm；800mm*1000mm*1000mm；
1000mm*1200mm*1200mm；1200mm*1200mm*1200mm)

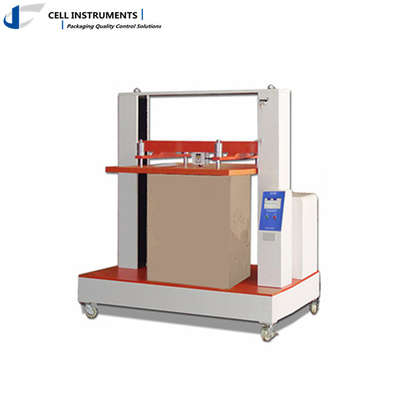

BOX AND CARTON COMPRESSIVE FORCE TESTER BCT COMPRESSING TESTING MACHINE 1





BCT carton compression tester Standard: ISO2874 Tappi T804

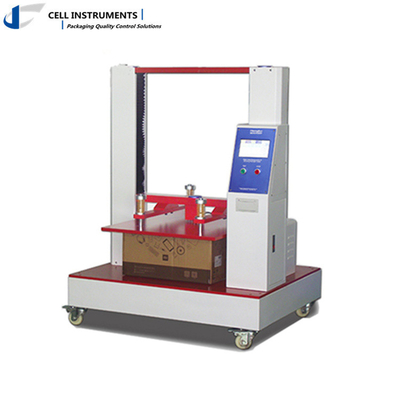

BOX AND CARTON COMPRESSIVE FORCE TESTER BCT COMPRESSING TESTING MACHINE 2

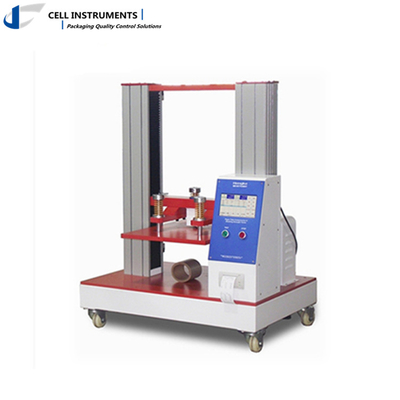

BOX AND CARTON COMPRESSIVE FORCE TESTER BCT COMPRESSING TESTING MACHINE 3
