ASTM D3654 Adhesive Attachment Durability Testing Machine For Double Sided Tape Holding Power Tester JIS Z0237

Place of Origin China
Brand Name Cell Instruments
Certification CE
Model Number LAT
Minimum Order Quantity 1 Set
Price GET AN OFFER
Packaging Details Plywood Carton
Delivery Time 3 days
Payment Terms L/C, T/T
Supply Ability 100 Sets/Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Test Stations 5,10,20,30 Test Time 0~99H99M99S
Test Mass 1000±5g Panel 60*40*1.5 LWD
Roller 2000g±50g Gas Port Size Ф6 Mm
Power AC 220V 50Hz
Leave a Message
Product Description

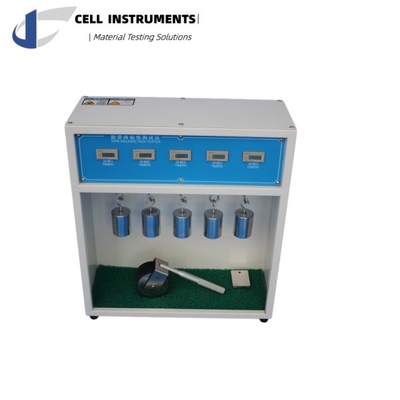

Introduction of LAT Lasting Adhesiveness Tester

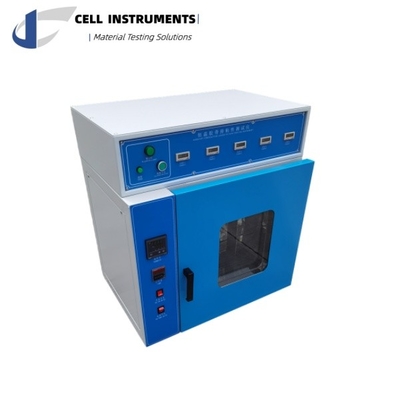

ASTM D3654 Adhesive Attachment Durability Testing Machine For Double Sided Tape Holding Power Tester JIS Z0237 0

The LAT Lasting Adhesiveness Tester, also known as the Tape Shear Adhesion Tester, is a cutting-edge testing instrument developed by Cell Instruments. This device is specifically designed to evaluate the ability of pressure-sensitive tapes and labels to maintain adhesion under a constant load applied parallel to the surface of the tape and substrate. By providing precise and reliable results, the LAT Lasting Adhesiveness Tester plays a crucial role in quality control for industries such as plastics, paper, textile, food, pharmaceuticals, toiletries, printing, adhesives, and more.

Technical Features of LAT Lasting Adhesiveness Tester

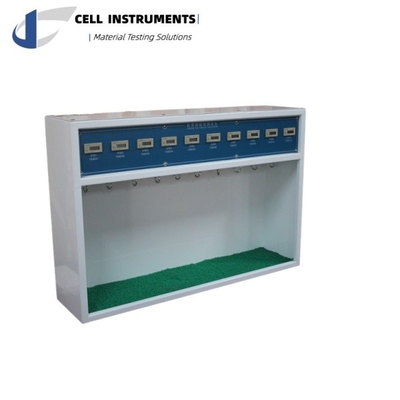

ASTM D3654 Adhesive Attachment Durability Testing Machine For Double Sided Tape Holding Power Tester JIS Z0237 1

The LAT Lasting Adhesiveness Tester boasts several advanced technical features to ensure accurate and efficient testing:

- Microcontroller for timing: The inclusion of a microcontroller enhances the precision of the testing process.
- LCD display and time-locking function: The tester is equipped with an LCD display for easy monitoring and a time-locking function to secure accurate testing durations.
- Customizable for different testing stations: Users have the flexibility to configure the tester for different numbers of testing stations based on their specific requirements.
- Customizable for different temperature environments: The LAT Lasting Adhesiveness Tester can be adapted for various temperature conditions, providing versatility in testing environments.

Why do you need LAT Lasting Adhesiveness Tester?

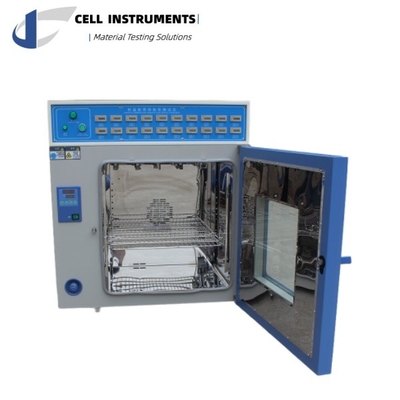

ASTM D3654 Adhesive Attachment Durability Testing Machine For Double Sided Tape Holding Power Tester JIS Z0237 2

The LAT Lasting Adhesiveness Tester is an indispensable tool for industries that rely on pressure-sensitive tapes and labels. This instrument ensures the quality and reliability of adhesive products by assessing the uniformity of the adhesive under constant stress. It is particularly crucialin applications where adhesion strength plays a critical role in product performance and longevity.

Purpose of LAT Lasting Adhesiveness Tester

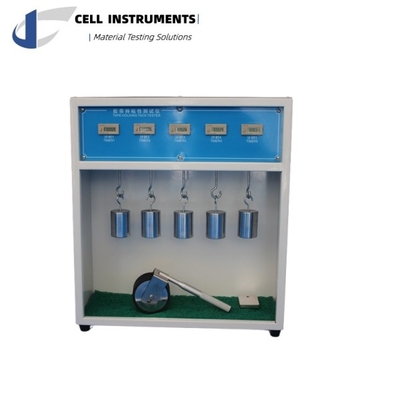

ASTM D3654 Adhesive Attachment Durability Testing Machine For Double Sided Tape Holding Power Tester JIS Z0237 3

The primary purpose of the LAT Lasting Adhesiveness Tester is to evaluate the lasting adhesiveness, shear adhesion, shear resistance, and static shear adhesion of pressure-sensitive adhesive tapes, labels, and related products. By subjecting the specimens to controlled conditions, such as standardized temperature and load, the tester provides valuable insights into the adhesive properties of the materials, aiding manufacturers in optimizing product formulations and ensuring compliance with industry standards.

Application

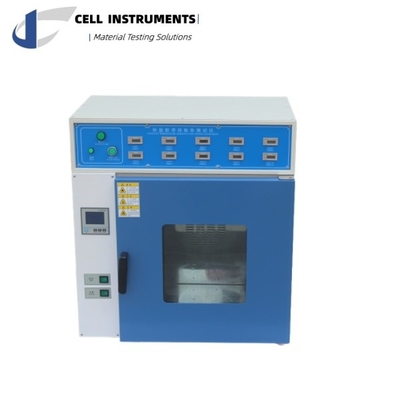

ASTM D3654 Adhesive Attachment Durability Testing Machine For Double Sided Tape Holding Power Tester JIS Z0237 4

The LAT-01 Lasting Adhesiveness Tester is specifically designed for testing the lasting adhesive/holding power of pressure-sensitive adhesive tapes, labels, and other related products. Its application spans across industries where the adhesion strength of tapes and labels is crucial for product performance and reliability.



Main Parameter

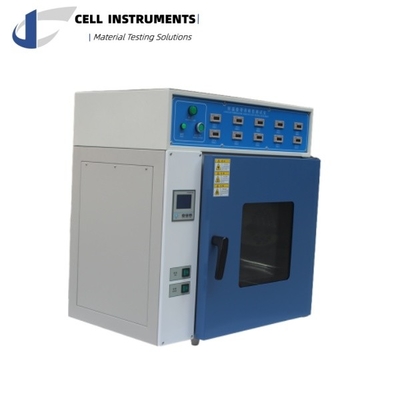

ASTM D3654 Adhesive Attachment Durability Testing Machine For Double Sided Tape Holding Power Tester JIS Z0237 5

LAT
Item LAT-5 LAT-10 LAT-20 LAT-30 LAT-5TC LAT-10TC
Test Stations 5 10 20 30 5 10
Temp. Range N/A       Ambient~80℃
Test Time 0~99H99M99S
Test Mass 1000±5g
Panel 60*40*1.5 LWD

Roller 2000g±50g
Gas Port Size Ф6 mm
Power AC 220V 50Hz

Standard

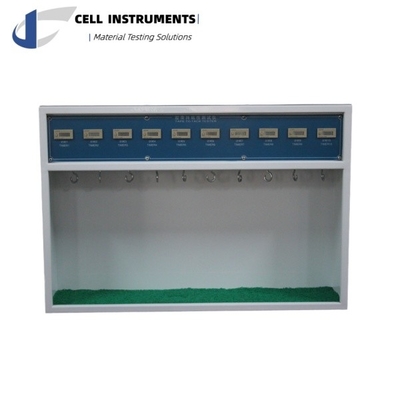

ASTM D3654 Adhesive Attachment Durability Testing Machine For Double Sided Tape Holding Power Tester JIS Z0237 6

The LAT Lasting Adhesiveness Tester adheres to international standards, including ASTM D3654, PCTC-107, JIS Z0237, and GT/T 4851. These standards ensure the reliability and accuracy of the testing process, making the LAT Lasting Adhesiveness Tester a trusted choice for quality control.

FAQs

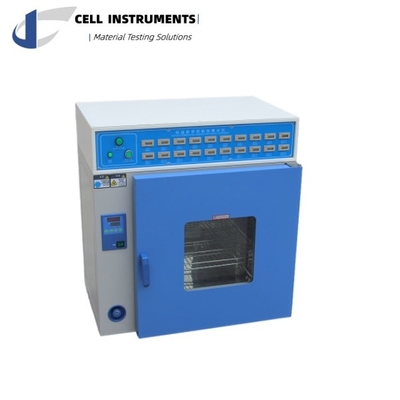

ASTM D3654 Adhesive Attachment Durability Testing Machine For Double Sided Tape Holding Power Tester JIS Z0237 7

  1. How is the test result recorded?
    After the test time concludes, weights are removed, and the amount of slippage or the time for the tape to separate completely from the panel is recorded using a magnifying glass with graduations.
  2. How is the test sample prepared in the tape shear adhesion test?
    The specimen is centered parallel to the longitudinal axis of the two panels, attached to the central part of the panels. The roller is used to roll the specimen at a speed of approximately 300mm/min or 10mm/s, ensuring that only the force generated by the roller's mass is applied. The number of rolling cycles can be specified based on product requirements.
