Aluminum-Plastic Combination Cap Opening Force Tester

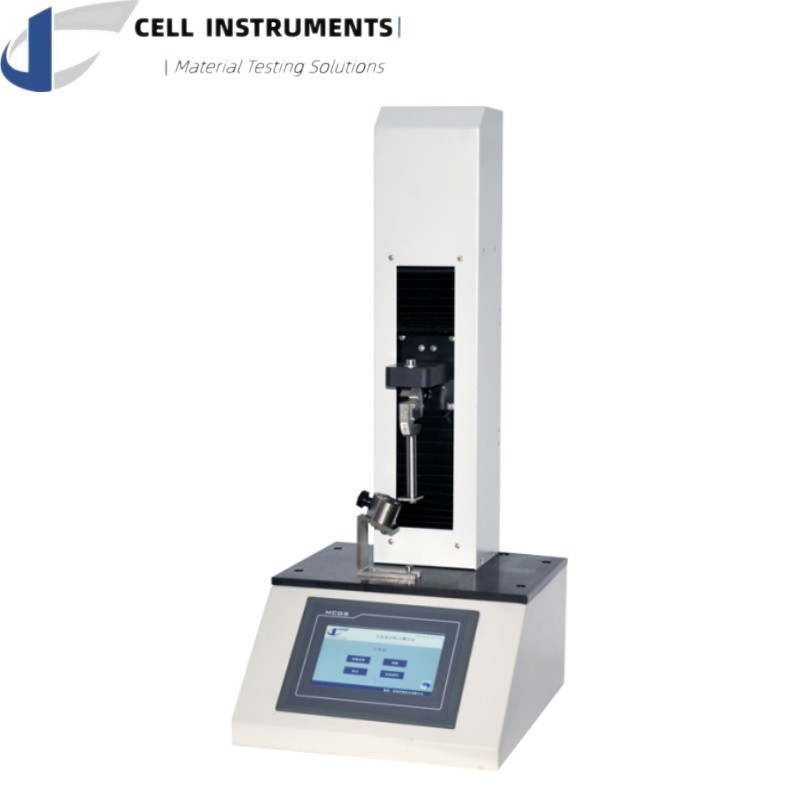

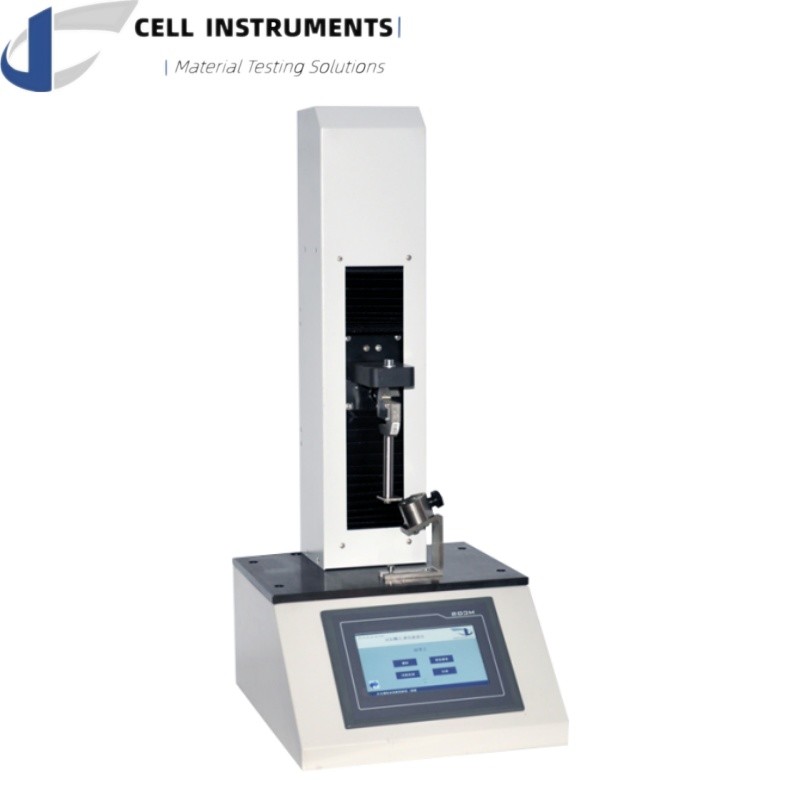

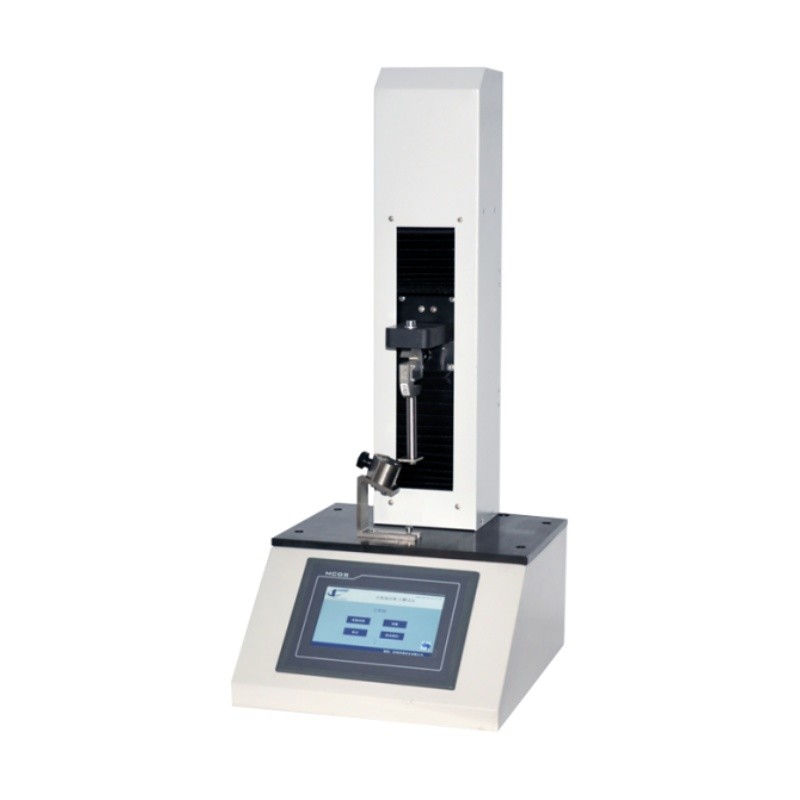

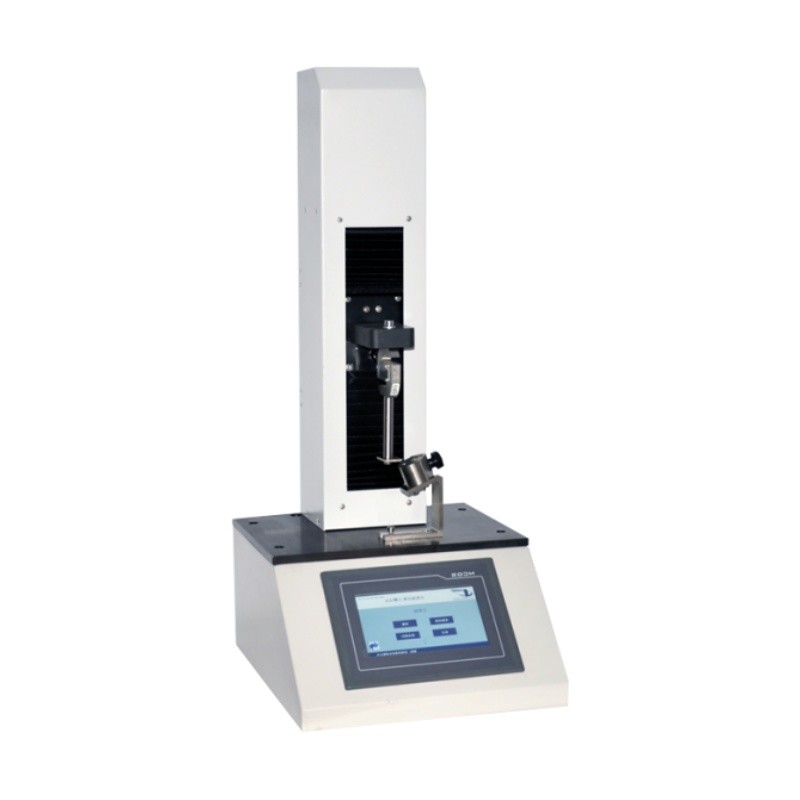

LSG-01 Aluminum-Plastic Combination Cap Opening Force Tester

Introduction

The LSG-01 Aluminum-Plastic Combination Cap Opening Force Tester is a high-precision instrument designed specifically for testing the opening force of aluminum-plastic combination caps. This advanced tester is an essential tool in the packaging, pharmaceutical, cosmetics, and beverage industries where maintaining the integrity and safety of bottle seals is paramount. By utilizing the LSG-01, businesses can ensure that their products meet stringent quality standards and regulatory requirements.

Application

The aluminum-plastic combination cap is widely used in various industries due to its superior sealing properties and tamper-evident features. This type of closure combines the durability of aluminum with the flexibility and cost-effectiveness of plastic, making it ideal for sealing bottles of beverages, pharmaceuticals, cosmetics, and other liquids. Specifically, in the pharmaceutical industry, these caps are crucial for ensuring robust sealing, providing tamper evidence, and maintaining product integrity.

Composition

• Aluminum: Utilized for the outer shell, aluminum provides a robust, tamper-evident, and attractive finish.
• Plastic: Typically used for the inner liner or as part of the closure mechanism, plastic ensures a tight seal and easy opening.

Force Tests on Aluminum-Plastic Combination Cap

The LSG-01 Aluminum-Plastic Combination Cap Opening Force Tester performs various critical force tests, including:

1. Tab Tear-Off Force (Tab Removing Force): Compliant with ISO 8872 and ISO 10985 standards.
2. Force Required to Pull Off Plastic Component: According to ISO 10985.
3. Force Required to Remove Plastic Component: As per ISO 8536-7 and ISO 8536-6.
4. Tensile and Elongation Force for Aluminum Part: Ensures the durability and flexibility of the aluminum component.

Technical Features

1. Industrial-Grade PLC Control System and HMI Interface: Offers stable, accurate, and easy operation.
2. Compatibility with Various Accessories: Suitable for tensile, compression, breaking force, hardness, peel, opening, puncture, push-pull, and other tests.
3. Real-Time Display of Test Results: Provides immediate feedback and data processing outcomes.
4. Dot-Matrix Type Micro Printer: Facilitates long-term preservation of test results.
5. Advanced Safety Features: Includes power-off parameter memory, overload protection, limit protection, and automatic return at the end of the test.
6. RS232 Communication Interface and Professional Software (Optional): Enhances data management and analysis capabilities.

Wide Applications

The LSG-01 Aluminum-Plastic Combination Cap Opening Force Tester is versatile and can perform various tests critical in the medical packaging industry to ensure the quality and safety of packaging materials and components. These include, but are not limited to:

• Ampoule Bottle Breaking Force Test
• Infusion Bottle Cap Opening Force and Tear Tab Tear Force Tests
• Heat Seal Strength, Tensile Strength, Peel Strength, and Elongation at Break Tests: For aluminum foil, PVC rigid sheets, and composite film products.
• Vial Combination Cap Opening Force, Puncture Force, and Aluminum Foil Tear Force Tests

Standards

The LSG-01 adheres to several international standards, ensuring reliable and consistent test results:

• ISO 8872
• ISO 7500-1
• ISO 10985
• ISO 8362-6
• ISO 8362-7

Main Parameters

Conclusion

The LSG-01 Aluminum-Plastic Combination Cap Opening Force Tester is an indispensable tool for industries that require precise and reliable testing of cap opening forces. By integrating advanced technology and adhering to international standards, this tester ensures that your products maintain the highest levels of quality and safety.
