ISO 11501 ASTM D2732 Film Free Shrinkage Tester Shrinkage Tester Hot Fluid Oil Bath Method Shrink Tester

Place of Origin China
Brand Name Cell Instruments
Certification CE
Model Number FST-01
Minimum Order Quantity 1 SET
Price Get An Offer
Packaging Details Plywood Carton
Delivery Time 3~5 days
Payment Terms TT, LC
Supply Ability At Stock

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Electronic Usage Plastic Testing Machine
Standard ASTM D2732
Leave a Message
Product Description

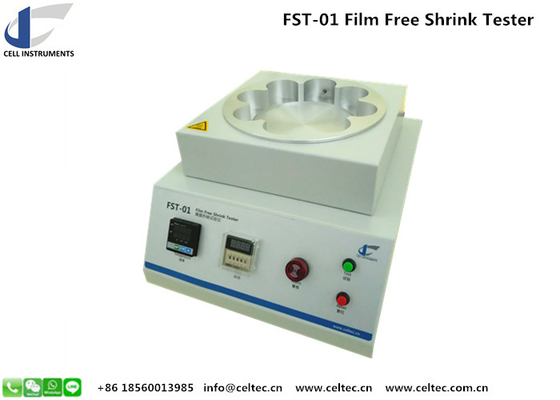

ISO 11501 ASTM D2732 Film Free Shrinkage Tester Shrinkage Tester Hot Fluid Oil Bath Method Shrink Tester

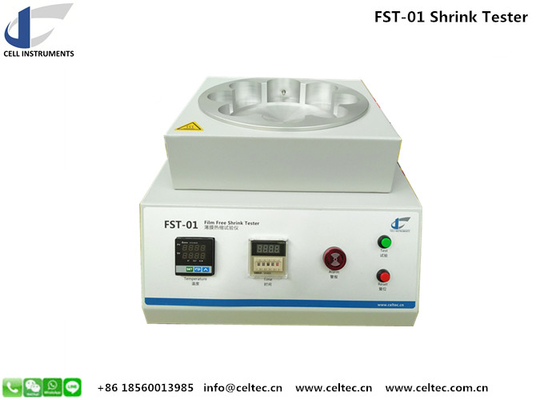

ISO 11501 ASTM D2732 Film Free Shrinkage Tester Shrinkage Tester Hot Fluid Oil Bath Method Shrink Tester 0

The ASTM D2732 Film Free Shrinkage Tester is a specialized laboratory instrument designed to measure the unrestrained linear thermal shrinkage of plastic films and sheeting under controlled conditions. This test is critical for packaging, food, pharmaceutical, beverage, and research industries, where film dimensional stability directly affects product quality, sealing performance, and end-use reliability.

By simulating the conditions specified in ASTM D2732 and ISO 11501, the tester evaluates how films behave when exposed to elevated temperatures in a hot fluid bath. Understanding shrinkage characteristics is essential for manufacturers to optimize film formulations, ensure compliance with international standards, and improve packaging performance.


Why Shrinkage Testing Matters

Plastic films are widely used in packaging because of their flexibility, sealing properties, and cost efficiency. However, thermal shrinkage during processing or usage can lead to:

  • Distortion in packaging appearance

  • Seal misalignment and leakage

  • Reduced shelf-life of food and pharmaceuticals

  • Inconsistent labeling or graphics

The ASTM D2732 Film Free Shrinkage Tester provides accurate shrinkage data, enabling manufacturers and research institutions to:

  • Select suitable film materials

  • Adjust production parameters

  • Guarantee compliance with customer specifications

  • Reduce material waste and production costs


Key Features of the ASTM D2732 Film Free Shrinkage Tester

  • P.I.D. Temperature Control: Ensures precise temperature regulation throughout the heating process.

  • High Precision Timer: Accurate measurement of exposure time for repeatable results.

  • Alarming Function: Alerts operators to deviations, ensuring safe and reliable testing.

  • Stable Heating of Fluid Medium: Maintains uniform conditions for consistent shrinkage evaluation.

  • Standard Square Metal Clamp and Free Shrink Holder: Provides reliable specimen fixation and minimizes operator variability.


Technical Specifications

Sample Size ≤160 mm x 160 mm
Temperature Range Ambient ~ 200°C
Accuracy ±0.3°C
Dimension 37*44*28 LWH cm
Power Supply 220V 50Hz

Compliance with International Standards

The ASTM D2732 Film Free Shrinkage Tester meets multiple international standards:

  • ASTM D2732 – Test method for unrestrained linear thermal shrinkage of plastic films

  • ISO 11501 – Determination of shrinkage in plastic films and sheeting

  • GB/T 13519 – National Chinese standard for film shrinkage testing

This multi-standard compliance makes the instrument suitable for global companies that must meet different regulatory requirements.


Application Industries

The ASTM D2732 Film Free Shrinkage Tester is widely adopted across various industries:

  1. Packaging Industry

    • Evaluating film shrinkage ensures consistent pouch, bag, or wrap dimensions.

    • Helps prevent sealing problems and leakage.

  2. Food Industry

    • Films with excessive shrinkage can compromise product safety.

    • Testing ensures films retain integrity under sterilization and storage conditions.

  3. Pharmaceutical Industry

    • Critical for blister packs, sachets, and medical device packaging.

    • Assures patient safety by preventing packaging failure.

  4. Beverage Industry

    • Used for shrink sleeves, bottle wraps, and labels.

    • Guarantees proper fit and branding alignment.

  5. Research and Education

    • Universities and R&D labs use shrinkage testers to study polymer properties.

    • Supports material development and innovation.


Working Principle

The ASTM D2732 Film Free Shrinkage Tester works by immersing a pre-cut specimen of film into a hot fluid bath maintained at a defined temperature. As the film is exposed, it shrinks freely without external constraints. The dimensional changes in both the machine direction (MD) and transverse direction (TD) are measured.

This test allows researchers to determine:

  • Shrinkage percentage in MD and TD

  • Anisotropic behavior of films

  • Impact of processing conditions on final film performance


Benefits for Quality Assurance

  • Improved Product Consistency: Ensures every batch of film performs reliably.

  • Compliance Guarantee: Helps meet ASTM, ISO, and GB standards.

  • Customer Satisfaction: Packaging retains appearance and function throughout product life.

  • Cost Optimization: Reduces risks of recalls and rejects due to packaging defects.


Why Choose This Instrument

The ASTM D2732 Film Free Shrinkage Tester stands out because of its combination of accuracy, reliability, and compliance. Unlike basic lab setups, it incorporates precise P.I.D. controls, automated timers, and robust clamping systems that minimize operator influence. These design features ensure reproducible results, making the tester a trusted tool for quality assurance departments worldwide.


Maintenance and Safety

The system is designed for durability and safety:

  • Easy-to-clean oil bath chamber

  • Over-temperature protection system

  • Long service life with minimal calibration needs

Operators benefit from a user-friendly interface and straightforward specimen handling.

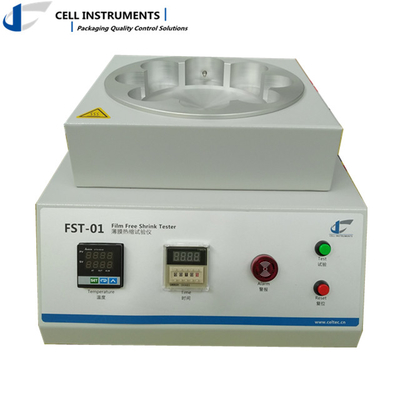

ISO 11501 ASTM D2732 Film Free Shrinkage Tester Shrinkage Tester Hot Fluid Oil Bath Method Shrink Tester 1
