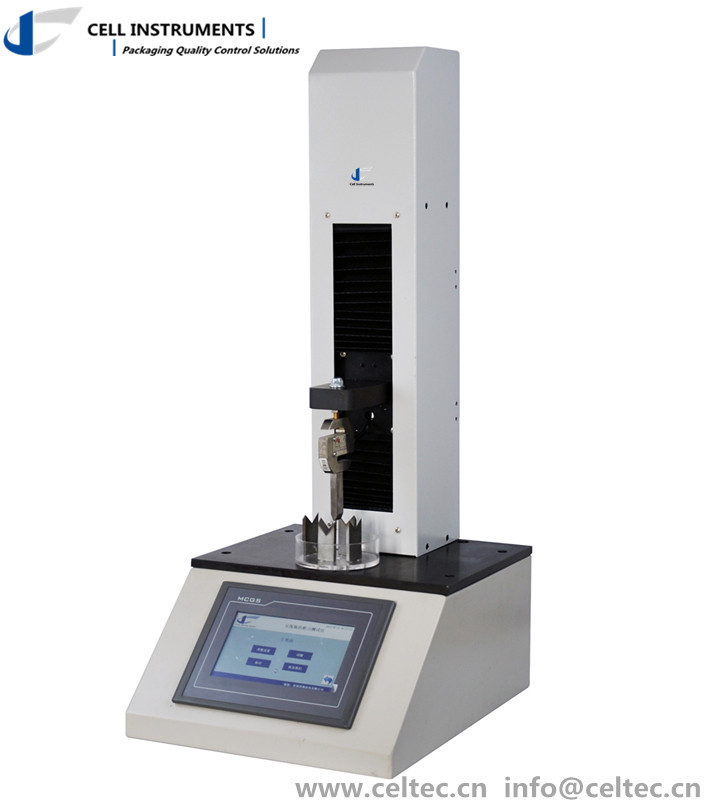

Ampoule Breaking Strength Tester Ampul Bottle Break Tester

The Ampoule Breaking Strength Tester is a precision instrument designed to measure the breaking force required to snap off the neck of glass ampoules, ensuring pharmaceutical safety and optimal clinical application. Ampoules are small hermetically sealed glass containers used to store injectable medicines, which must be broken open to access the contents. The proper breaking strength is critical in maintaining sterility and ease of use in clinical settings. With its advanced features, this Ampoule Breaking Strength Tester provides a quantitative analysis of the breaking force, allowing laboratories and manufacturers to ensure that ampoules meet industry standards for safe and reliable performance.

Key Features of the Ampoule Breaking Strength Tester

• 7-inch TFT Touchscreen Display: The user-friendly interface allows for easy parameter settings and convenient test operation.
• PLC Programmable Logic Controller: Ensures precise control over the driving system, enhancing overall instrument performance and accuracy.
• High Precision Ball Screw: Guarantees accurate speed and displacement during testing, crucial for achieving reliable and repeatable results.
• Adjustable Test Speed: Flexibility to adjust the test speed from 1 mm/min to 800 mm/min, with a specific 10 mm/min setting for ampoule breaking strength tests.
• Multiple Test Capabilities: The instrument supports both tensile and compression tests, making it versatile for various test applications.
• Interchangeable Fixtures: Provides compatibility with different types of pulling and compression tests, enabling broader use for other material testing.
• Limiting Device & Automatic Returning Function: These safety features ensure that the tester returns to its default position after each test, preventing over-pressurizing and damage to the ampoules.

Why the Ampoule Breaking Strength Tester is Essential for Laboratories

In the pharmaceutical industry, ensuring the integrity of ampoules is crucial for protecting product quality and safety. The Ampoule Breaking Strength Tester allows manufacturers and laboratories to assess whether ampoules can be opened with the correct amount of force, ensuring patient safety. If an ampoule breaks too easily, it could compromise sterility; if it requires too much force, it could present handling difficulties for healthcare professionals. By offering consistent, repeatable measurements, this tester helps ensure that every ampoule meets stringent industry standards.

Working Principle of the Ampoule Breaking Strength Tester

The Ampoule Breaking Strength Tester uses a mechanical system to apply force to the neck of the ampoule. The sample ampoule is securely placed on the instrument’s fixtures, and the pressing head moves down at a controlled speed of 10 mm/min (as per the ampoule breaking test standard). The tester’s high-precision load cell measures the force applied as the pressing head contacts the neck of the ampoule and breaks it. This measurement reflects the ampoule’s breaking strength, helping manufacturers assess whether the ampoules conform to industry requirements.

Detailed Specifications

• Test Range: 200N (Standard)
• Test Speed: 1 to 800 mm/min, with 10 mm/min being the standard speed for ampoule tests.
• Dimensions: 400 mm (L) x 340 mm (W) x 800 mm (H)
• Applicable Standards: GB 2637, YBB00332002

Benefits of Using the Ampoule Breaking Strength Tester

1. Ensures Regulatory Compliance: The tester complies with industry standards such as GB 2637 and YBB00332002, ensuring that all ampoules tested meet the required safety and quality regulations.
2. Enhanced Accuracy: The precision load cell and ball screw ensure highly accurate readings, minimizing any variations that could arise from manual testing.
3. User-Friendly Operation: The touchscreen interface and PLC system make operation intuitive, requiring minimal training for laboratory personnel.
4. Versatile Testing Capabilities: Not only can the instrument test ampoule breaking strength, but it is also equipped to handle other compression and tensile tests, making it a versatile tool in any laboratory.
5. Safety Features: The limiting device and automatic returning function protect both the instrument and the operator by preventing overloading and ensuring that the pressing head returns to its default position after each test.

Applications of the Ampoule Breaking Strength Tester

The Ampoule Breaking Strength Tester is widely used across various industries to ensure the safety and quality of glass ampoules. Key sectors include:

• Pharmaceutical Industry: For testing ampoules used to store and deliver injectable drugs, ensuring they break cleanly and safely in clinical settings.
• Medical Device Manufacturing: To confirm that ampoules meet precise breaking strength specifications.
• Food and Beverage Packaging: Though primarily used in pharmaceuticals, the tester can also be adapted to assess the strength of similar break-seal packaging used in food and beverage industries.

Compliance with Industry Standards

The Ampoule Breaking Strength Tester adheres to major industry standards:

• GB 2637: This standard governs the packaging of sterile injectables, ensuring that ampoules meet necessary safety measures.
• YBB00332002: Specifies requirements for ampoule packaging in the pharmaceutical sector, including breaking strength and material integrity.

Why Choose Our Ampoule Breaking Strength Tester?

With advanced technology and multiple features designed to simplify and enhance testing, our Ampoule Breaking Strength Tester is the ideal choice for laboratories focused on material safety and quality assurance. Its versatility, combined with the ability to perform a range of tests, makes it an indispensable tool for industries involved in the production and testing of ampoules.
