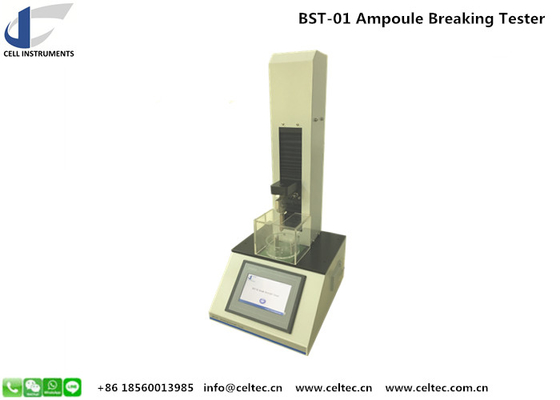

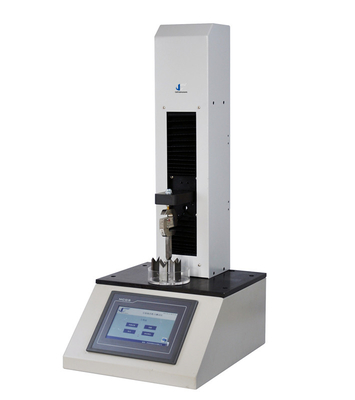

Ampoule Breaking Strength Tester Ampule neck break force Medical Pack Testing Machine Tablet Compression Tester

The Ampoule Breaking Strength Tester is a specialized instrument designed for the precise measurement of ampoule breaking strength, crucial for ensuring the reliability and safety of pharmaceutical packaging. This tester evaluates the force required to break the neck of an ampoule, a glass container commonly used to store pharmaceuticals. The Ampoule Breaking Strength Tester provides essential data for quality control and compliance, ensuring that ampoules meet industry standards and function correctly during use.

Manufactured with advanced technology, the Ampoule Breaking Strength Tester offers a high level of accuracy and ease of use, making it an indispensable tool for pharmaceutical laboratories, quality control departments, and research facilities. By ensuring that ampoules are properly sealed and can be reliably opened, this tester helps maintain the integrity of pharmaceutical products and enhances safety for end-users.

Principle of Operation

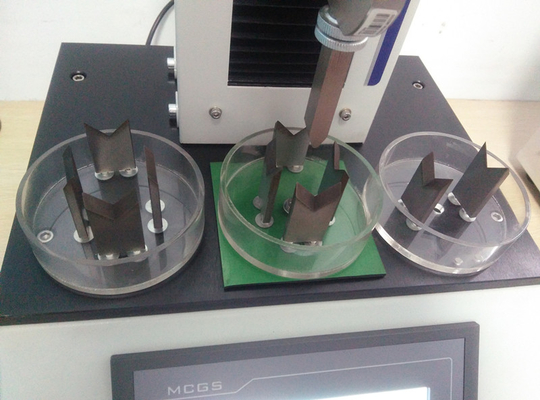

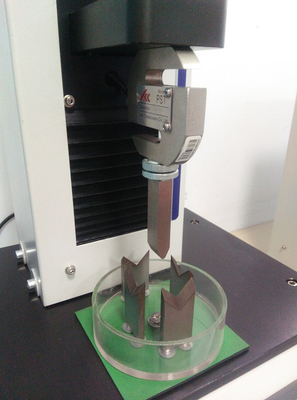

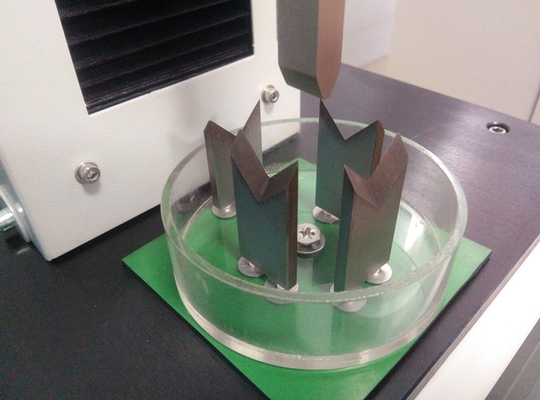

The operation of the Ampoule Breaking Strength Tester is straightforward yet highly effective. The ampoule sample is placed on designated fixtures, and a pressing head is driven downwards at a controlled speed of 10 mm/m. As the pressing head applies force to the ampoule neck, a high-precision load cell measures the breaking strength required to snap the ampoule open. This precise measurement ensures that the ampoules meet the required strength specifications for secure sealing and safe opening.

Key Features of the Ampoule Breaking Strength Tester

1. 7-Inch TFT Touch Screen: The Ampoule Breaking Strength Tester is equipped with a 7-inch TFT touch screen, facilitating easy parameter setting and intuitive test operations. The touch screen interface simplifies the setup process and enhances user experience.

2. PLC Programmable Logic Controller: A PLC programmable logic controller is integrated into the Ampoule Breaking Strength Tester to provide precise control over the driving system and overall instrument performance. This ensures consistent and accurate testing results.

3. Precision Ball Screw Mechanism: The tester utilizes a precision ball screw mechanism for accurate speed and displacement control. This feature ensures reliable and repeatable measurements of ampoule breaking strength.

4. Adjustable Test Speed: The Ampoule Breaking Strength Tester allows for adjustable test speeds, accommodating various testing requirements and ensuring flexibility in different testing scenarios.

5. Versatility in Testing: In addition to ampoule breaking strength, the tester can perform tensile and compression tests. Multiple fixtures are available to facilitate a range of pulling and compression tests, enhancing the versatility of the instrument.

6. Safety Features: The Ampoule Breaking Strength Tester is designed with a limiting device and automatic returning function, ensuring safe operation and minimizing the risk of operator injury or equipment damage.

Technical Specifications

• Test Range: 0-200 N (standard)
• Speed: 10 mm/m (standard speed for ampoule breaking; other speeds available)
• Dimensions: 400 mm (L) × 340 mm (W) × 800 mm (H)
• Power Supply: AC 220V 50Hz

Compliance and Standards

The Ampoule Breaking Strength Tester complies with industry standards such as GB 2637 and YBB 00332002, ensuring that it meets the necessary quality and performance criteria for pharmaceutical testing. Compliance with these standards guarantees that the tester provides reliable and accurate results, making it a trusted choice for laboratories and quality control departments.

Applications of the Ampoule Breaking Strength Tester

1. Pharmaceutical Industry: Essential for testing the strength of ampoule seals to ensure that pharmaceuticals remain secure and uncontaminated. This tester is crucial for quality control and regulatory compliance in drug packaging.

2. Medical Packaging: Used to evaluate the performance of ampoules and other glass containers in medical packaging, ensuring that they meet safety and performance requirements.

3. Research and Development: Ideal for R&D laboratories focusing on the development of new ampoule designs or materials. The tester provides critical data for optimizing packaging solutions.

4. Quality Control: Useful for quality control departments in verifying the strength of ampoule seals and ensuring consistency across production batches.

Advantages of the Ampoule Breaking Strength Tester

1. Enhanced Accuracy: The Ampoule Breaking Strength Tester offers high precision in measuring ampoule breaking strength, ensuring accurate and reliable test results.

2. User-Friendly Interface: With its 7-inch TFT touch screen and intuitive controls, the tester is easy to operate, reducing the likelihood of user errors and enhancing overall efficiency.

3. Versatile Testing Capabilities: The ability to perform both tensile and compression tests, along with adjustable test speeds, makes the Ampoule Breaking Strength Tester a versatile tool for various applications.

4. Safety and Reliability: Built with safety features such as a limiting device and automatic return function, this tester ensures safe operation and long-term reliability.

Conclusion

The Ampoule Breaking Strength Tester is a critical tool for ensuring the quality and safety of pharmaceutical packaging. Its precise measurement capabilities, user-friendly interface, and compliance with industry standards make it an invaluable asset for laboratories and quality control departments. Whether used for routine quality checks or advanced research, the Ampoule Breaking Strength Tester delivers reliable results, helping maintain the integrity and safety of pharmaceutical products.

By incorporating the Ampoule Breaking Strength Tester into your quality control processes, you can ensure that your ampoules meet the highest standards of strength and reliability, ultimately enhancing the safety and effectiveness of your pharmaceutical products.
