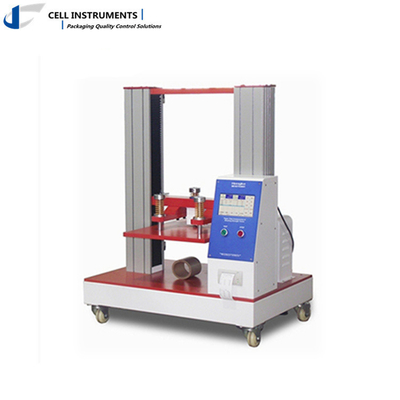

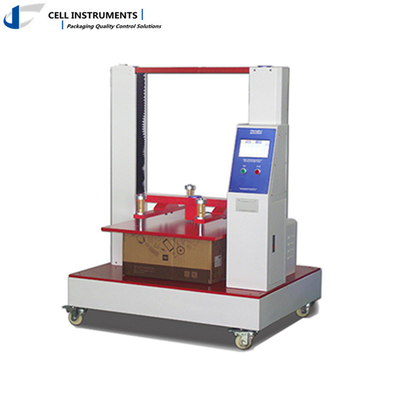

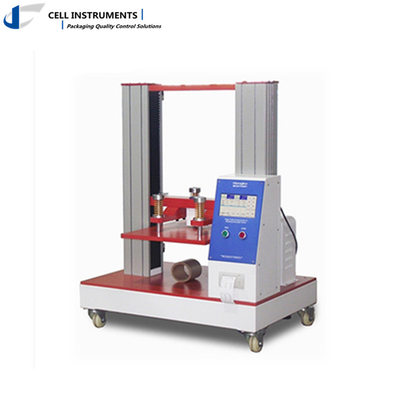

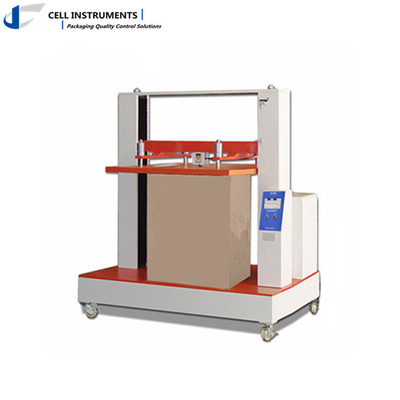

Carton compression force crush force tester is for measurement of medium and small size packaging like corrugated carton. One tester can realize compressive force, stacking and fix load&force tests.
Carton compression force crush force tester Technical Feature
● Touch screen operation
● Microcomputer processing system, automatic measurement, test result intelligent judging,self-return
● Auto data collecting and computing,
● Embedded micro printer
● Real-time display of compression force,deformation and curve
● Three test modes of compression resistance,stacking and compression at fixed time and pressure
● Synchronous motor and accurate thread lead screw drive system
Carton compression force crush force tester Technical Data
| Pressure range | 0-10KN(other load available) |
| Force resolution | 0.1N |
| Deformation accuracy | ±1mm |
| Compressing speed range | 5mm/min～90mm/min |
| compressing speed | 12mm/min |
| Stacking test speed | 5mm/min |
| Lower platen stroke | 800mm |
| Test space |
400mm(L)*600mm(W)*600mm(H) (Other Spaces Available |
Standards
ASTM D642, ASTM D4169, ISO12048, TAPPI T804, JIS Z0212, GB/T 16491, GB/T 4857.4
