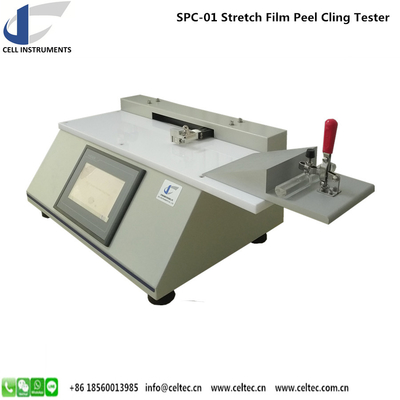

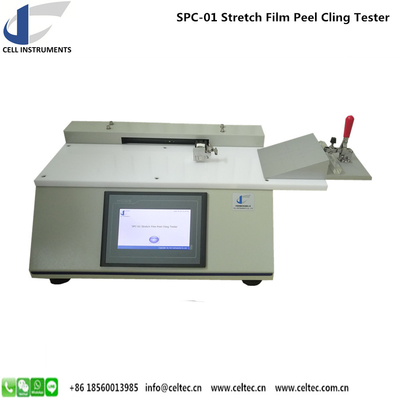

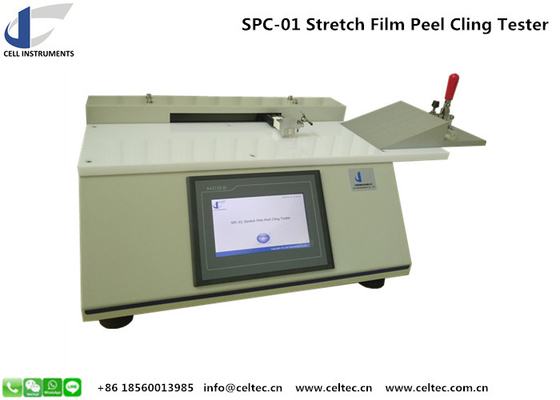

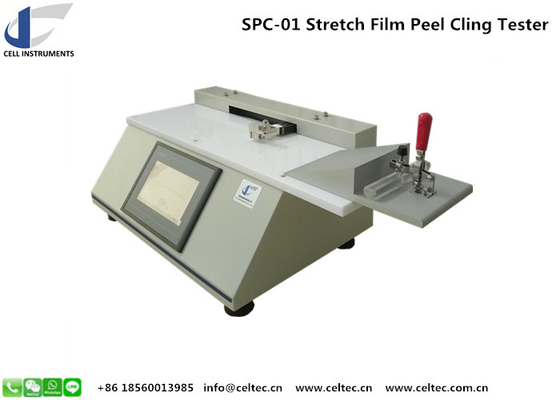

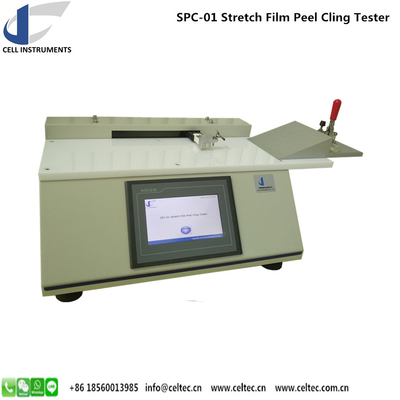

Stretch Film Peel Cling Tester ASTM D5458 BB/T 0024 Wrapping Film Peel Cling Force Tester

The Stretch Film Peel Cling Tester ASTM D5458 is a cutting-edge testing instrument specifically designed to evaluate the cling force or tackiness of stretch films and wrapping films. This advanced tester fully complies with ASTM D5458 and BB/T 0024 standards, ensuring reliable and standardized testing for a wide range of industries, including packaging, food, medicine, beverage, research institutions, and more. By accurately measuring the peel cling force, this instrument provides critical data to assess the self-adhering ability of stretch films and optimize material performance in various applications.

Precise Cling Force Measurement

The Stretch Film Peel Cling Tester ASTM D5458 measures the cling or adhesion strength between two layers of film. This key property ensures that the stretch film maintains proper load stability during transportation and storage. The tester’s innovative design and precision loadcell technology eliminate common sources of error, such as the friction and gravity effects found in traditional pulley-and-string methods, delivering highly accurate and repeatable test results.

Key Features and Benefits

• Compliance with International Standards: Fully adheres to ASTM D5458 and BB/T 0024 standards, meeting global testing requirements.

• Advanced Touchscreen Operation: Equipped with a 7-inch TFT touchscreen interface, enabling intuitive control and clear data visualization.

• PLC Control System: The programmable logic controller (PLC) ensures stable, consistent, and automated test procedures, enhancing reliability and repeatability.

• Real-Time Data Display: View test curves and record peak values in real time, facilitating detailed analysis and quality control.

• Adjustable Test Speed: Test speed can be easily set between 1–500 mm/min to accommodate different material properties and testing requirements.

• Precision Ball Screw Drive: Guarantees precise speed and displacement control for accurate cling force measurements.

• Automatic Features: Includes an automatic return function and built-in limiting device for safe, efficient operation.

• Elongation Rates Markings: Supportive lines for elongation rates of 50%, 100%, and 200% are engraved, aiding in precise testing of film stretchability.

• Microprinter Output: Onboard microprinter allows for immediate printing of test results, simplifying data management and documentation.

• Optional Coefficient of Friction Testing: Expand the instrument’s capabilities with an optional coefficient of friction (COF) testing feature, offering more comprehensive film performance analysis.

Technical Specifications

Applications Across Industries

The Stretch Film Peel Cling Tester ASTM D5458 is widely used in quality control laboratories, R&D centers, and manufacturing environments to verify and optimize the cling properties of stretch films used in packaging and wrapping applications. Industries relying on secure load unitization, such as food and beverage, pharmaceuticals, logistics, and consumer goods, benefit from precise cling strength analysis to ensure material reliability and performance.

For example, in the packaging industry, the cling performance of stretch wrap materials directly impacts load containment and transportation safety. In food and beverage production, cling strength testing helps ensure that products remain securely wrapped and protected during shipment. Pharmaceutical and medical applications require similarly reliable cling properties to maintain product integrity and avoid contamination. By using the Stretch Film Peel Cling Tester ASTM D5458, manufacturers and labs can ensure that their materials meet stringent performance and safety standards.

Enhanced Testing Accuracy and Reliability

Traditional methods for testing cling force often suffer from measurement inaccuracies due to external factors like friction and gravity effects. The Stretch Film Peel Cling Tester ASTM D5458 eliminates these variables through a direct loadcell connection with the sample. This advanced design ensures that the true cling force is measured without the interference of mechanical components, delivering superior data reliability and minimizing operator-induced variability.

The real-time display of test data and curves on the large TFT touchscreen provides operators with immediate insights into cling performance. This transparency not only streamlines the testing process but also supports data-driven decision-making for material selection, process optimization, and quality assurance.

User-Friendly and Efficient Design

With its ergonomic design and intuitive operation, the Stretch Film Peel Cling Tester ASTM D5458 is an essential tool for any laboratory or quality control department. The integrated microprinter allows for easy documentation and record-keeping, while the automated test process minimizes human error and boosts productivity. Safety features such as automatic return and test limiters further ensure operator protection and extend the instrument’s service life.

Optional Coefficient of Friction Testing

Understanding the coefficient of friction (COF) is critical for many film applications, as it affects film handling, unwinding, and application processes. The Stretch Film Peel Cling Tester ASTM D5458 can be optionally equipped to perform COF tests, providing additional value for comprehensive film characterization. By measuring both cling force and COF, users gain a complete understanding of the material’s performance, enabling informed decisions in packaging design, transportation, and storage.

Why Choose Our Stretch Film Peel Cling Tester ASTM D5458?

• Global Standard Compliance: Meets the highest international testing standards, ensuring credibility and reliability in quality control programs.

• Superior Testing Precision: Advanced measurement technology for precise cling force analysis.

• Flexible Test Settings: Adjustable speed and customizable test range to suit diverse material requirements.

• Robust and Durable: Engineered with high-quality components for long-term reliability and low maintenance.

• Comprehensive Data Analysis: Real-time display and printout of test data facilitate thorough quality evaluations.

• Custom Solutions: Our expert team can provide tailored testing solutions and support to meet your specific application needs.

By investing in the Stretch Film Peel Cling Tester ASTM D5458, you gain a dependable partner in your material testing program, enhancing product quality, meeting regulatory standards, and satisfying customer expectations.
