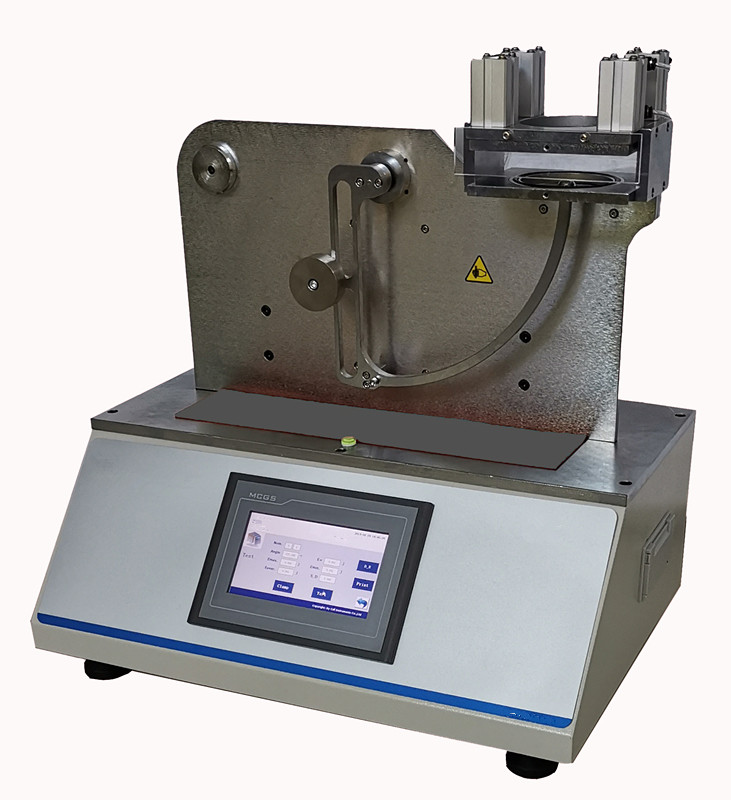

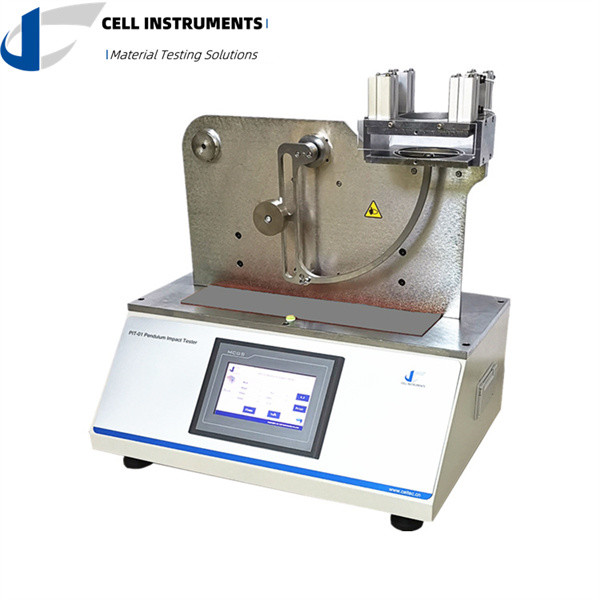

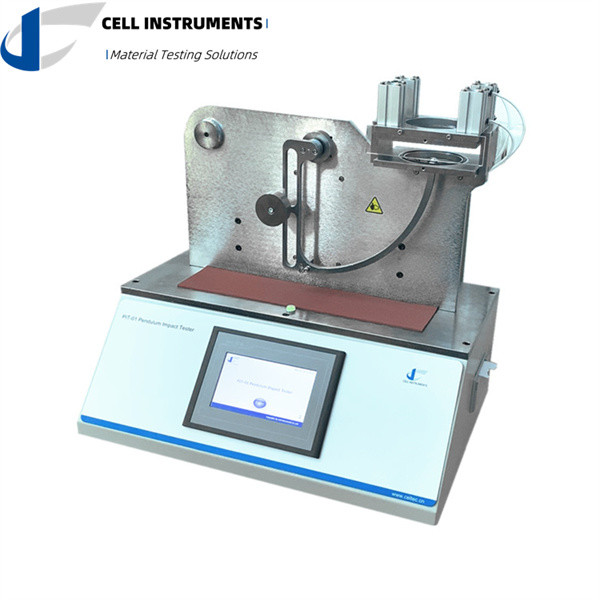

ASTM D3420 impact tester Falling weight impact tester PIT-01 Cell Instruments

ASTM D3420 impact tester measures the energy to burst and penetrate the center of a specimen, which is determined by loss in mechanical work capacity due to the expenditure of kinetic energy by a pendulum.

The pendulum impact test gives a quantitative measurement of impact resistance properties of pendulum of films, sheets, composites, foils, paper and other materials.

ASTM D3420 impact tester  has below features

● PLC control and HMI touch screen operation

● Pneumatic specimen clamping and pendulum automatic release

● Data auto statistics, storage

● Precious angle measurement

● Support customized Microprinter

● RS232 port and software (Optional)

Impact Energy 1 J, 2 J, 3 J (could be modified)

Resolution 0.001 J

Impact Head Size Ф25.4 mm, Ф19 mm, Ф12.7 mm (Customization available)

Specimen Clamp Diameter Ф89 mm, Ф60 mm

Specimen Size 100 mm x 100 mm or Ф100 mm

Gas Supply Pressure 0.6 MPa

Port Size Ф6 mm

Power Supply AC 110~220V 50/60 Hz
