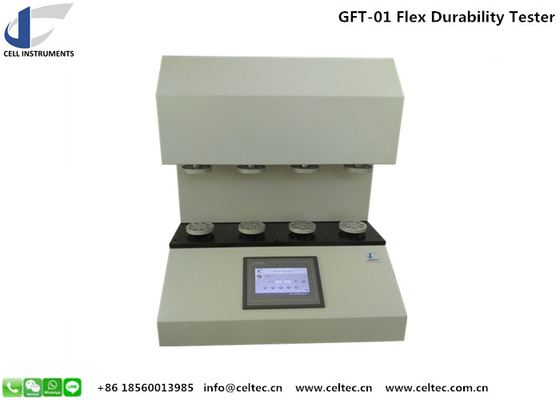

Gelbo flex tester ASTM F392 Barrier material flex durablity endurance tester Testing Instruments for Film
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Power||Electronic||Usage||Plastic Testing Machine,flex Durability|
|Product Name||Flex Durability Tester||Application||Durability Test Machine|
|Power Supply||AC 220 V 50 Hz||Function||Flex And Abrasion Test For Textile And Leather|
Gelbo flex tester ASTM F392 is used to measure the resistance against repetitive strain for films, composites and coating films, etc. Flex failure is determined by measuring the pinholes formed in the sample structure. It is also called Gelboflex.
Gelbo flex tester ASTM F392 Principle
The sample (200*280 mm) is attached to the flex tester mandrels. The flexing action consists of a twisting motion combined with a horizontal motion (compression), thus repeatedly twisting and crushing the film. The test set up gives a twisting motion of 440º in the first 90 mm of the stroke and is followed by a straight horizontal motion of 65 mm. The speed is 45 cycles per minute.
Gelbo flex tester ASTM F392 Technical data
|Flex Frequency||45 /minute|
|Flex Angle||440° (90 mm) or 400° (80 mm)|
|Horizontal Stroke||155 mm or 80 mm|
|Sample Size||280 mm x 200 mm|
ASTM F392 Flex Durability Tester Features
- ● PLC control and 7 inch touch screen operation
- ● 5 standard test modes and 4 test stations
- ● Long and short stroke fast switching
- ● Protection front cover
- ● Condition A,B,C,D and E can be chosen
- ● Micro printer
- ● Could realize test frequency random setting
