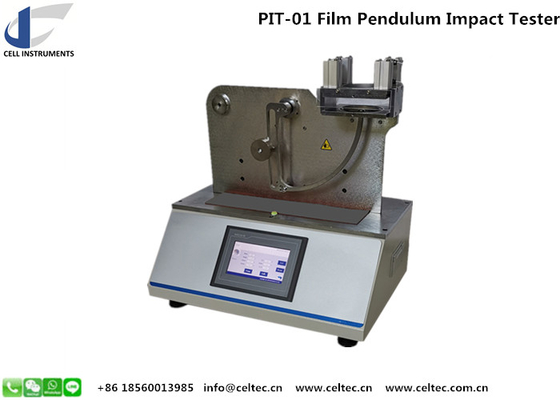

ASTM D3420 Polymer Pendulum Impact Tester Impact Resistance Tester Testing Machine For Laboratory
The Polymer Pendulum Impact Tester is a state-of-the-art instrument designed to evaluate the impact resistance of various materials, including plastic films, sheets, composites, foils, and paper. Conforming to the ASTM D3420 standard, this tester is essential for industries requiring precise measurement of material toughness under dynamic loading conditions.
Key Features:
-
ASTM D3420 Compliance: Ensures standardized testing procedures for reliable and reproducible results.
-
PLC Control with HMI Touch Screen: Offers intuitive operation and precise control over testing parameters.
-
Pneumatic Specimen Clamping & Automatic Pendulum Release: Facilitates consistent sample positioning and testing efficiency.
-
High-Resolution Angle Measurement: Provides accurate detection of pendulum swing angles for precise energy calculations.
-
Data Statistics & Storage: Automatically records and stores test data for analysis and quality control.
-
Customizable Microprinter Support: Allows for immediate printing of test results.
-
RS232 Port & Optional Software: Enables seamless data transfer and integration with laboratory information systems.
Technical Specifications:
Impact Energy | 1 J, 2 J, 3 J |
Resolution | 0.001 J |
Impact Head Size | Ф25.4, Ф19, Ф12.7 mm |
Specimen Clamp | Pneumatic Clamp |
Clamp Diameter | Ф89 mm, Ф60 mm |
Gas Supply | 0.6 MPa Φ6 mm PU Tubing |
Specimen Size | 100*100 mm or Ф100 mm |
Power Supply | AC 110~220V 50Hz |
Applications:
The Polymer Pendulum Impact Tester is versatile and applicable across various industries:
-
Packaging Industry: Assessing the durability of packaging materials to withstand mechanical stresses during handling and transportation.
-
Food & Beverage Sector: Ensuring the integrity of packaging films used in food preservation and safety.
-
Pharmaceutical Industry: Testing blister packs and flexible packaging for drug safety and compliance.
-
Academic & Research Institutions: Facilitating material science research and educational demonstrations.
-
Material Manufacturing: Quality control of films, composites, and foils to meet industry standards.
Advantages:
-
Enhanced Accuracy: High-resolution measurements ensure precise evaluation of material impact resistance.
-
User-Friendly Interface: The touch screen interface simplifies operation and reduces training time.
-
Customizable Testing Parameters: Adaptable to various material types and testing requirements.
-
Robust Data Management: Automatic data recording and storage streamline quality control processes.
-
Compliance Assurance: Adheres to international testing standards, ensuring global applicability.
Conclusion:
The Polymer Pendulum Impact Tester is an indispensable tool for laboratories and industries focused on material durability and quality assurance. Its compliance with ASTM D3420, coupled with advanced features and user-friendly design, makes it a reliable choice for accurate impact resistance testing.
