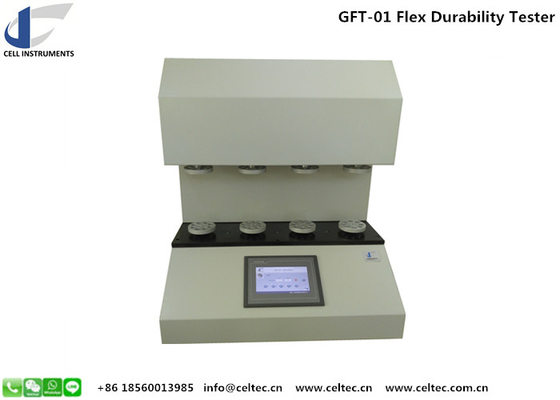

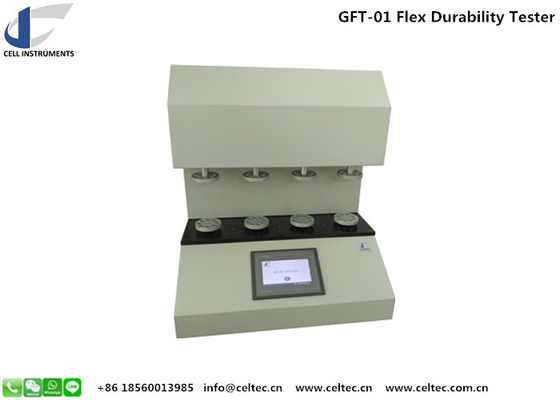

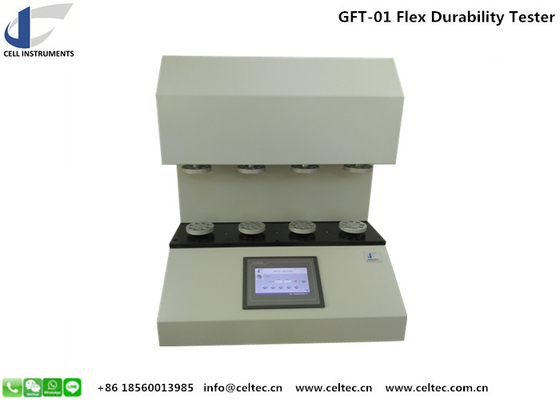

Gelbo Flex Durability Tester Astm F392 Complied Gelbo Flex Tester Flex Tester Machines

Place of Origin China
Brand Name Cell Instruments
Certification CE
Model Number GFT-01
Minimum Order Quantity 1 SET
Price Get An Offer
Packaging Details Plywood Carton
Delivery Time 3~5 days
Payment Terms TT, LC
Supply Ability At Stock

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Electronic Usage Plastic Testing Machine,flex Durability
Product Name Flex Durability Tester Application Durability Test Machine
Power Supply AC 110~220 V Function Flex And Abrasion Test For Textile And Leather
Standard ASTM F392
Leave a Message
Product Description

Gelbo Flex Durability Tester Astm F392 Complied is used for flex test for the repetitive strain for films, composites and coating films, etc.



Flex failure is determined by measuring the pinholes formed in the sample structure and change in permeability performance.. It is also called Gelboflex.



Gelbo Flex Durability Tester Astm F392 Complied​ technical data

Flex Frequency 45 /minute
Flex Angle 440° (90 mm) or 400° (80 mm)
Horizontal Stroke 155 mm or 80 mm
Stations 4
Sample Size
280 mm x 200 mm



Gelbo Flex Durability Tester Astm F392 Complied Gelbo Flex Tester Flex Tester Machines 0

Principle

The sample (200*280 mm) is attached to the flex tester mandrels. The flexing action consists of a twisting motion combined with a horizontal motion (compression), thus repeatedly twisting and crushing the film. The test set up gives a twisting motion of 440º in the first 90 mm of the stroke and is followed by a straight horizontal motion of 65 mm. The speed is 45 cycles per minute.


Gelbo Flex Durability Tester Astm F392 Complied Gelbo Flex Tester Flex Tester Machines 1

Gelbo flex tester ASTM F392​ Features

  1. PLC control and 7 inch touch screen operation
  2. 5 standard test modes and 4 test stations
  3. Long and short stroke fast switching
  4. Protection front cover
  5. Condition A,B,C,D and E can be chosen
  6. Micro printer
  7. Could realize test frequency random setting
