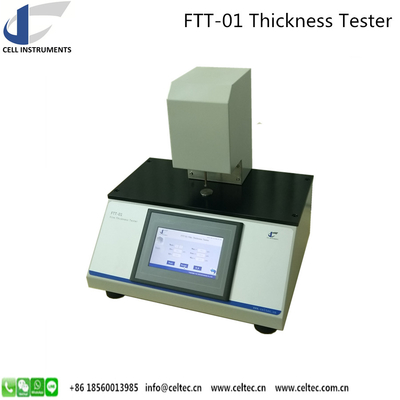

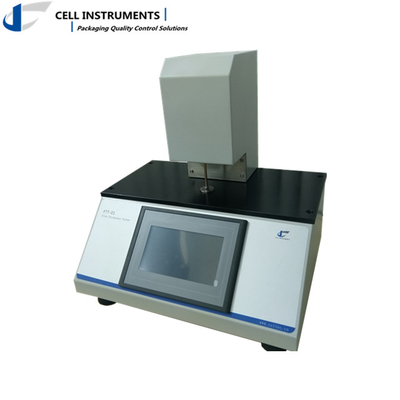

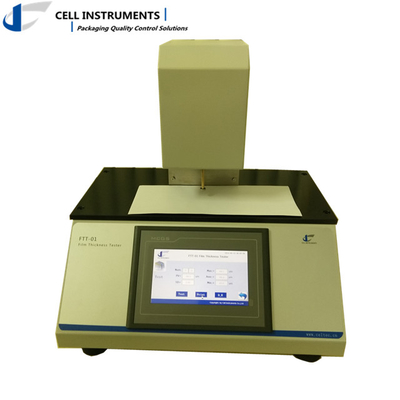

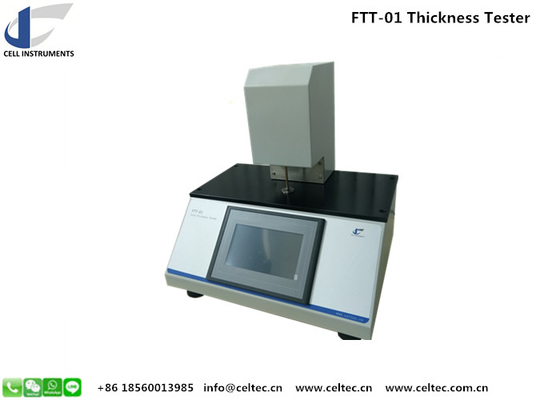

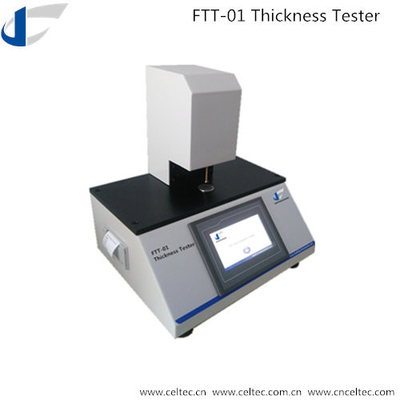

Accurate Thickness Gauge 0.1μM Plastic Film And Wafer Thickness Tester Dead Weight Mechnical Contact Method

  • Accurate Thickness Gauge 0.1μM Plastic Film And Wafer Thickness Tester Dead Weight Mechnical Contact Method
  • Accurate Thickness Gauge 0.1μM Plastic Film And Wafer Thickness Tester Dead Weight Mechnical Contact Method
  • Accurate Thickness Gauge 0.1μM Plastic Film And Wafer Thickness Tester Dead Weight Mechnical Contact Method
  • Accurate Thickness Gauge 0.1μM Plastic Film And Wafer Thickness Tester Dead Weight Mechnical Contact Method
  • Accurate Thickness Gauge 0.1μM Plastic Film And Wafer Thickness Tester Dead Weight Mechnical Contact Method
Place of Origin China
Brand Name Cell Instruments
Certification CE
Model Number FTT-01
Minimum Order Quantity 1 SET
Price Get An Offer
Packaging Details Plywood Carton
Delivery Time 3~5 days
Payment Terms TT, LC
Supply Ability At Stock

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 110~220V Usage Thickness Tester
Product Name Film Thickness Tester Accuracy 0.1 μm
Display HMI Touch Screen Display Warranty 12 Months
Calibration Block Included
Leave a Message
Product Description

Plastic Film And Wafer Thickness Tester measures the thickness of plastic films, sheets, board, fabrics, textile, membranes, paper, foil, wafers and other materials.





Working mechanism

A specimen is placed on the base and a weighted presser foot lowered. The displacement between the base and the presser foot is measured as the thickness of the specimen.



Plastic Film And Wafer Thickness Tester Technical Features

  1. PLC control and HMI touch screen operation
  2. Standard conformed hemispherical measure head is equipped
  3. Presser foot automatic lifting
  4. Real time display of maximum, minimum, average and standard deviation
  5. Test result storage and micro printing
  6. RS232 port and software (Optional)



Accurate Thickness Gauge 0.1μM Plastic Film And Wafer Thickness Tester Dead Weight Mechnical Contact Method 0

THICKNESS TESTER MECHANICAL SCANNING CONTACT METHOD Technical data



Test Range 0~2mm
Resolution 0.1 μm
Mesure Head Hemispherical type
(Optional) Flat Foot 17.5±1 KPa/50 mm2 (for film)
(Optional) Flat Foot 50±1 KPa/200 mm2 (for paper)
Power AC  110~ 240V 50/60Hz

Accurate Thickness Gauge 0.1μM Plastic Film And Wafer Thickness Tester Dead Weight Mechnical Contact Method 1
It complies with the following standards:

ASTM D374-99: Standard Test Methods for Thickness of Solid Electrical Insulation

ASTM D1777: Standard Test Method for Thickness of Textile Materials

ISO 4593: Plastics; Film and sheeting; Determination of thickness by mechanical scanning

ISO 534-2011: Paper and board -- Determination of thickness, density and specific volume

ISO 3034:2011: Corrugated fibreboard -- Determination of single sheet thickness

TAPPI T411, JIS K6250, JIS K6783, JIS Z1702, BS 3983, BS 4817
