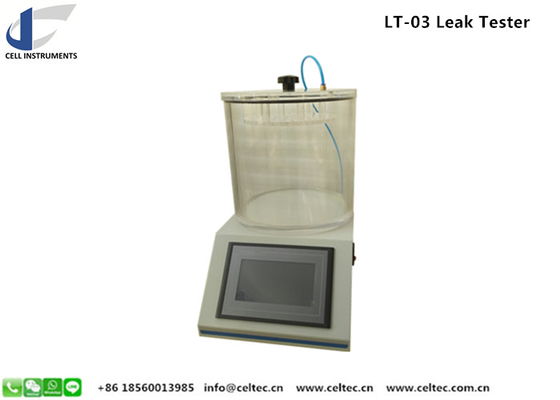

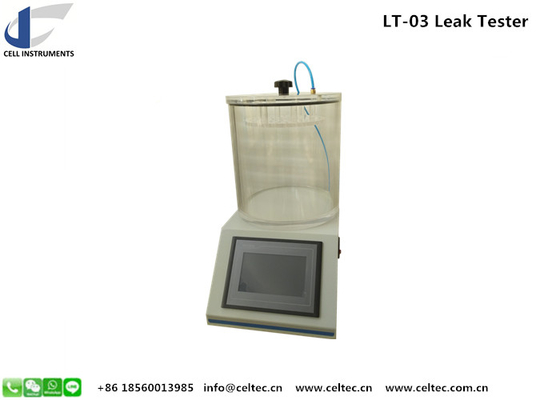

Vacuum Chamber Space 270mm*210mm Leakage Tester Negative Pressure Method PLC Controlled Leak Tester
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xStandard | ASTM D3078 | Test Sample | Sealed Pack, Container Etc |
---|---|---|---|
Vacuum Range | 0~-90 KPa | Test Space | 270mm*210mm |
Plastic Bag Seal Strength and Leak Tester is for the examination of airproof property of packages, containers, bags, pipes. It ss widely used in food, beverage, pharmaceutical, daily chemical, electrical and electronic industries, etc.
It complies with ASTM D3078 and GB/T 15171 standards.
Plastic Bag Seal Strength and Leak TesterFeatures
It uses vacuum ejector to generate stable vacuum environment. The state-of-the-art human-computer interface and PLC control unit on the leak tester make the parameter setting and test operation direct and easy. By saving different groups of parameters, users are free from the troubles of setting parameters each time before use. At the same time, different testing results and total test numbers can be saved to avoid any human errors.
1. Leak test process all automatic
2. Touching screen operation
3. Digital vacuum degree and test time input
4. Parameters and test data automatic saving
5. Automatic vacuum maintenance and air back-flushing
6. Strong cast vaccum chamber
7. Different chamber sizes available
8. No vacuum pump required
9. Easy operation and maintenance
Plastic Bag Seal Strength and Leak Tester Technical Specification
Vacuum | 0~-90KPa/0~-13PSI |
Vacuum chamber size |
Φ270 mm x 210 mm (H) (Customization available) |
Gas source |
Compressed air |
Gas Pressure | 0.7MPa/101.5PSI |
Plastic Bag Seal Strength and Leak Tester Standards
ASTM D3078 , GB/T 15171
