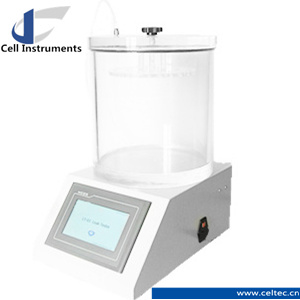

Plastic Package leaking tester Vacuum decay leak tester ASTM D3078 leak tester

Plastic Package leaking tester is designed for the examination of airproof property of packages, containers, bags, pipes. It ss widely used in food, beverage, pharmaceutical, daily chemical, electrical and electronic industries, etc. Plastic Package leaking tester complies with ASTM D3078 and GB/T 15171 standards.

Plastic Package leaking tester features

It uses vacuum ejector to generate stable vacuum environment. The state-of-the-art human-computer interface and PLC control unit on the leak tester make the parameter setting and test operation direct and easy. By saving different groups of parameters, users are free from the troubles of setting parameters each time before use. At the same time, different testing results and total test numbers can be saved to avoid any human errors.

1. Leak test process all automatic

2. Touching screen operation

3. Digital vacuum degree and test time input

4. Parameters and test data automatic saving

5. Automatic vacuum maintenance and air back-flushing

6. Extra-thick Perspex

7. Different chamber sizes available

8. No vacuum pump required

9. Easy operation and maintenance

Plastic Package leaking tester technical specification

Vacuum: 0~-90KPa/0~-13PSI

Vacuum chamber size: Φ270 mm x 210 mm (H) ( Customization available)

Gas source: Compressed air

Gas Pressure: 0.7MPa/101.5PSI

Plastic Package Test Equipment Standards

ASTM D3078 , GB/T 15171
