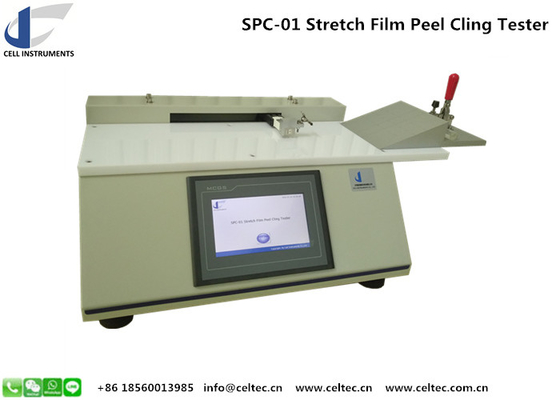

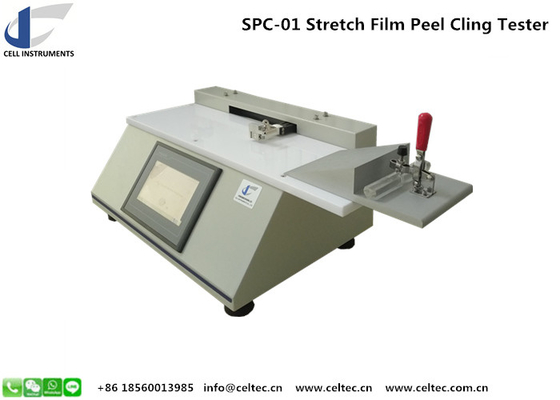

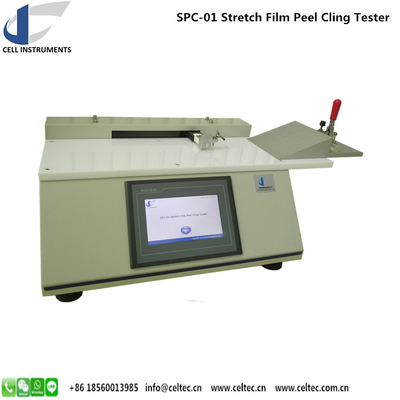

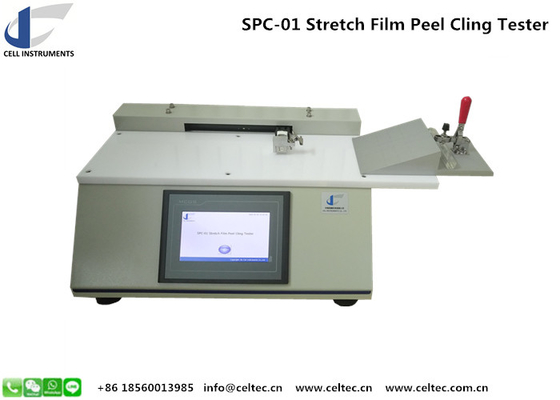

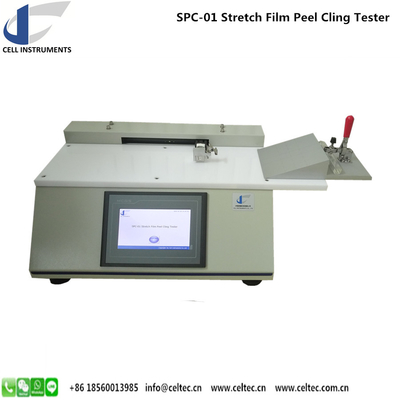

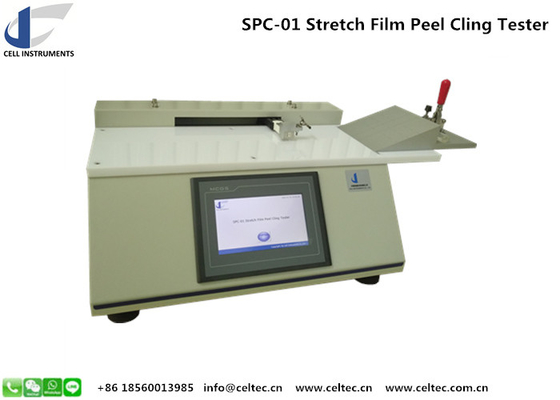

Pvc Wrapping Film Cling Peeling Force Test Machine Model Spc-01 Stretch Film Two Layer Wrapping Force Tester

The Wrapping Film Cling Peeling Force Test Machine is a high-precision laboratory instrument specifically designed for testing the cling properties of stretch films, PVC wrapping films, and other types of packaging wraps. As industries such as food, beverage, pharmaceuticals, logistics, and packaging increasingly rely on film wrapping for product protection and transportation efficiency, ensuring the optimal cling strength of wrapping materials has become crucial.

Our Wrapping Film Cling Peeling Force Test Machine model SPC-01 is engineered to deliver accurate, repeatable, and standardized test results to evaluate the cling force between two layers of film. This essential data helps manufacturers and researchers determine how well a stretch film adheres to itself, which is a key indicator of its suitability for secure packaging.

Why Choose the Wrapping Film Cling Peeling Force Test Machine (SPC-01)?

This instrument adopts a fully automated and intelligent testing process, featuring a 7-inch TFT touch screen interface, PLC control, and precision components to ensure maximum test accuracy. By eliminating traditional pulley and string systems that introduce friction and gravity errors, the SPC-01 ensures direct force measurement for reliable data integrity.

Whether you're testing stretch film for pallet wrapping or PVC wrapping film for food packaging, the Wrapping Film Cling Peeling Force Test Machine delivers the confidence and consistency needed for R&D, quality assurance, and production control.

Key Features of the Wrapping Film Cling Peeling Force Test Machine

• 7-Inch TFT Touchscreen: Intuitive and user-friendly interface enhances operational efficiency.

• PLC-Controlled System: Ensures test stability and precise control throughout the testing process.

• Precision Ball Screw Mechanism: Offers accurate control of speed and displacement for consistent test results.

• Adjustable Test Speed: Customizable to meet different testing standards and materials.

• Direct Load Cell Connection: Avoids external interference, ensuring authentic cling force readings.

• Automatic Return Function: Enhances efficiency and safety in testing operations.

• Real-Time Curve Display: Visual representation of force vs. time during the test process.

• Peak Force Recording: Automatically captures and records the maximum cling force.

• Supportive Elongation Indicators: Displays elongation lines at 50%, 100%, and 200%.

• Micro Thermal Printer: For instant printouts of test results on-site.

• Optional Coefficient of Friction Testing: Additional capability for evaluating surface interaction of films.

Standards Compliance

The Wrapping Film Cling Peeling Force Test Machine is designed in strict accordance with international standards to ensure consistent and reliable results:

• ASTM D5458 – Standard Test Method for Peel Cling of Stretch Film

• BB/T 0024 – Chinese Packaging Industry Standard for Cling Testing

Compliance with these recognized standards ensures the test data can be used for regulatory reporting, product development, and comparative analysis across markets.

Applications Across Industries

This test machine is a vital tool for a wide range of industries, including:

• Packaging Manufacturers: Ensures film wrap quality meets product protection requirements.

• Food Industry: Evaluates PVC film used in fresh produce, meat, and prepared food packaging.

• Pharmaceuticals: Verifies secure stretch wrap applications for medical product shipments.

• Logistics and Warehousing: Ensures load unitization with optimal film tension and adhesion.

• Colleges and Research Institutions: Supports material studies, product innovation, and educational training.

By using the Wrapping Film Cling Peeling Force Test Machine, these industries can maintain high standards of safety, efficiency, and performance in their packaging solutions.

Technical Specifications

How It Works

The Wrapping Film Cling Peeling Force Test Machine performs a peel test by placing two layers of stretch film or PVC film in contact, then measuring the force required to separate them at a constant speed and angle. The force applied is recorded throughout the test, and the maximum value is taken as the cling force. This quantitative method provides clear data for comparing film formulations, production batches, or evaluating the impact of storage conditions on cling properties.

Benefits of Using SPC-01 Cling Peeling Tester

• Improved Product Development: Understand how different film formulations perform.

• Quality Assurance: Detect inconsistencies in production or raw material supply.

• Packaging Optimization: Ensure the right amount of cling for product stability without excessive film use.

• Regulatory Compliance: Provide documentation in line with ASTM and industry-specific standards.

Optional Function – Coefficient of Friction Measurement

With an optional upgrade, the SPC-01 can be equipped to perform coefficient of friction tests. This is especially useful for packaging engineers who want to understand how films interact during wrapping or unwrapping processes. A high or low coefficient may affect film performance on automated packing lines or during transport.

Who Should Use This Machine?

• Packaging Film Manufacturers

• Stretch Film Producers

• Food Packaging Suppliers

• Quality Control Labs

• Research and Development Centers

• University Laboratories

• Logistics and Transportation Companies

The Wrapping Film Cling Peeling Force Test Machine is indispensable wherever film performance matters.

Customization and After-Sales Support

At Cell Instruments, we understand that each application can be unique. That’s why the Wrapping Film Cling Peeling Force Test Machine can be customized to meet specific user requirements in terms of film type, test method, or data output formats. We provide complete technical support, calibration, and training to help you get the most from your investment.

Related Instruments

If you are testing multiple physical properties of packaging materials, we recommend exploring our full range of equipment:

• Heat Seal Testers

• Tensile Strength Testers

• Coefficient of Friction Testers

• Leakage Detection Systems

• Impact Resistance Testers

These instruments are fully compatible with packaging films and comply with international standards such as ASTM, ISO, and TAPPI.

Conclusion

The Wrapping Film Cling Peeling Force Test Machine from Cell Instruments is your ideal solution for accurate, efficient, and standards-compliant testing of film cling properties. With its precision engineering, intelligent controls, and customizable features, this machine helps ensure product safety, quality, and consistency—critical factors in modern packaging systems.
