Flex Resistance Or Flex Durability Tester Before Barrier Film Permeation Test And Pin Hole Test ASTM F392

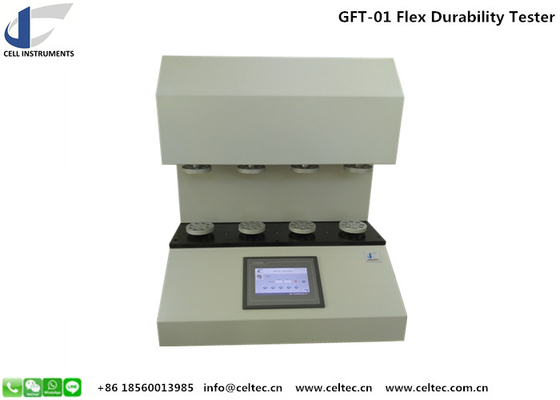

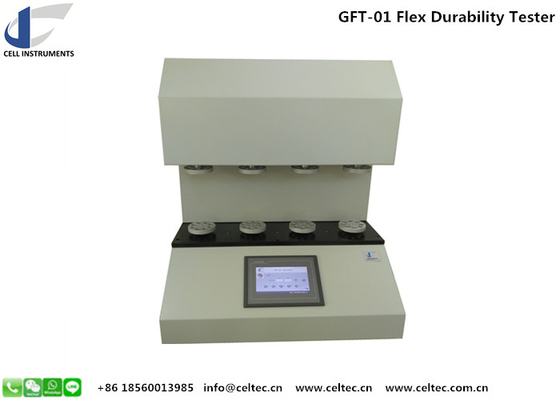

The Flex Durability Tester, also known as the Gelbo Flex Tester, is a professional laboratory instrument designed for evaluating the flex resistance of flexible barrier materials, including plastic films, laminates, foils, and coated substrates. By simulating mechanical stress through twisting and compressive movements, this tester helps assess material integrity and durability under repeated strain, essential before conducting permeation or pin hole tests.

This testing method is critical in industries such as packaging, pharmaceuticals, food and beverage, and medical devices, where the mechanical reliability of packaging materials directly impacts product protection, shelf life, and regulatory compliance.

▶ What Is a Flex Durability Tester?

A Flex Durability Tester replicates real-world conditions that packaging materials endure during handling, transportation, and usage. The test simulates continuous mechanical strain on barrier films, determining their resistance to cracking and pinhole formation. This performance indicator is especially crucial for high-barrier packaging materials that must remain impermeable throughout the product lifecycle.

▶ Principle of Operation

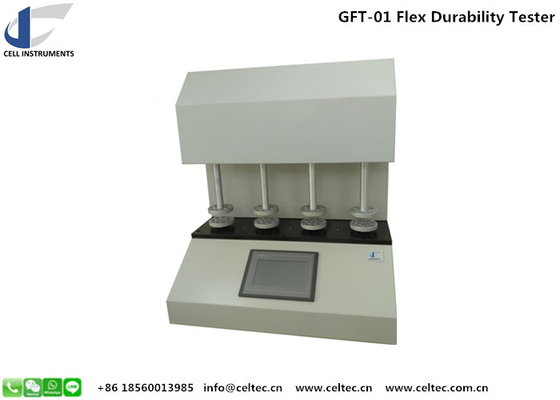

The test sample, typically 280 mm × 200 mm, is clamped onto mandrels. During each cycle, the film undergoes:

• Twisting motion up to 440°

• Horizontal compression stroke of 65 mm

• Cycle speed of 45 flexes per minute

This unique twist-compression action creates multidirectional stress patterns that replicate stress during transportation or usage. Pinholes or failures are then detected by visual inspection or secondary tests like gas permeation or dye penetration.

▶ Key Technical Specifications

▶ Features of the Gelbo Flex Durability Tester

1. User-Friendly Interface

   • 7-inch color touchscreen for intuitive navigation

   • Easy test parameter setup and real-time status monitoring

2. Automated Control System

   • PLC-controlled flex cycles for consistent performance

   • Programmable test modes (5 standard modes)

3. High Testing Efficiency

   • Four independent test stations allow parallel sample evaluation

   • Adjustable stroke length for varied material types

4. Compact and Durable Design

   • Heavy-duty frame designed for continuous industrial lab use

   • Built-in optional micro-printer for result output

5. Standards-Compliant

   • Fully compliant with ASTM F392 – "Standard Test Method for Flex Durability of Flexible Barrier Materials"

▶ Applications of the Flex Durability Tester

The Flex Durability Tester is used in various industries to evaluate the structural integrity and barrier properties of:

• Flexible packaging films (PET, PE, nylon, EVOH)

• Medical pouch laminates

• Aluminum foil laminates

• Food packaging materials

• Pharmaceutical blister foils

• Composite or multi-layer coatings

▶ Why Flex Testing Matters

Before barrier testing such as oxygen transmission rate (OTR), water vapor transmission rate (WVTR), or pin hole detection, it's crucial to evaluate how the material withstands mechanical flexing. A poor flex score could mean premature barrier failure, product spoilage, or regulatory non-compliance.

Flex Durability Testing helps:

• Predict material lifespan

• Optimize material formulation

• Reduce material failure risks

• Meet international quality standards

▶ ASTM F392: Flex Durability Standard

The Flex Durability Tester strictly follows ASTM F392, a globally recognized standard for evaluating flex failure in flexible barrier materials. This ensures that the test results are reproducible, reliable, and accepted across industries for quality assurance, R&D, and compliance purposes.

▶ Why Choose Cell Instruments?

Cell Instruments Co., Ltd. is a trusted manufacturer specializing in physical property testing instruments for packaging, materials, and medical industries. Our Flex Durability Tester offers advanced automation, compliance with international standards, and robust design tailored for busy QA/QC labs.

We also provide:

• Customized PLC programming

• Test process automation services

• Global customer support

▶ Flex Durability Tester – Summary of Benefits

✅ Simulates real-world handling stress
✅ Accurate and repeatable testing results
✅ Supports multi-sample testing simultaneously
✅ Compliant with ASTM F392
✅ Ideal for labs in packaging, pharmaceuticals, food, medical, and academic research

▶ Technical Services and Support

Cell Instruments offers complete support including:

• Installation guidance

• Testing protocol consultation

• Annual calibration services

• Spare parts availability

• Operator training and certification
