Peel Tensile Testing machine Ulimate Tensile Strength Test ASTMD882
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Nylon Material Tensile Testing Machine,Electronic Tensile Testing Machine | Accuracy | ±0.5% |
---|---|---|---|
Test Speed | 1-500mm/min (adjustable ) | Screw | High Precise Ball Screw |
Bench top tensile testers can be used to measure tensile, peeling, deformation, tearing, heat sealing, adhesive, puncture force, opening force and other performance of plastic films, composite materials, soft package materials, plastic flexible tube, adhesives, adhesive tape, label stickers, medical plasters, release paper, protection films, combined caps, aluminum foil, diaphragm, back sheets, non-woven fabrics, rubber, paper, etc.

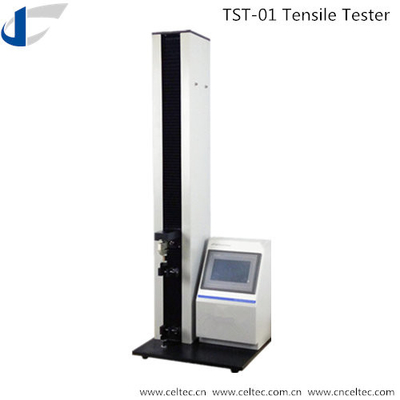

Bench top tensile tester TST-01 features
- 7 inch TFT touch screen makes parameter setting and test operation easy and convenient.
- PLC programmable logic controller realizes precise control of the driving system and the overall performance of the instrument.
- Precision ball screw for accurate speed and displacement.
- Test speed is adjustable.
- Multiple test items are available.
- Multiple fixtures available for other types of pulling and compression tests.
- Limiting device and automatic returning function ensure safe operation.
- microprinter(optional)
Bench Top Tensile Tester Technical Specifications
Test Range | 0-500N (Standard, 50N,100N,200N,1000N are optional) |
Speed | 1-500 mm/min |
Accuracy | 0.5% F.S. |
Effective stroke | 800mm |
Bench Top Tensile Tester Standards
ISO 37, ASTM D882, ASTM E4, ASTM D3330, ASTM F904,ASTM F88, ASTM D1938, JIS P8113
