xProduct Details
| Power | Electronic | Usage | Paper Testing Instrument,Textile Testing Instrument,Other,Plastic Testing Machine |
|---|---|---|---|
| Standard | ISO8295,ASTM D1894 | Warranty | 12 Months |
| Product Name | Packaging Materials Coefficient Of Friction Tester | Function | Kinetic And Static Coefficients Of Coefficient Of Friction Test,coefficient Friction Tester,detecting Dynamic Frition Coefficient |
| Power Supply | 110~220V |
Product Description

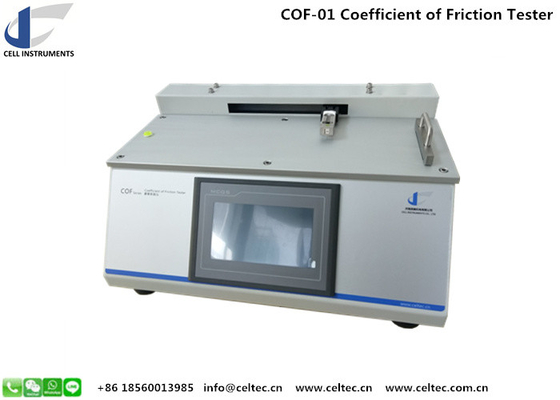

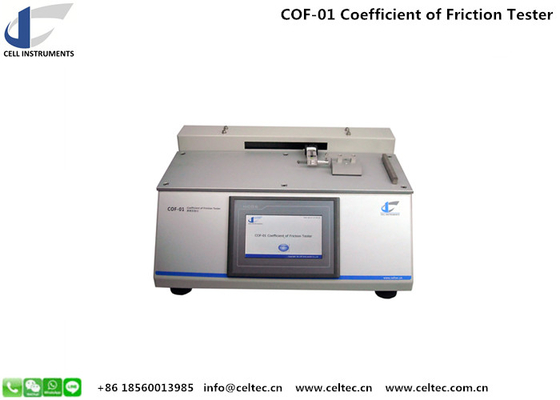

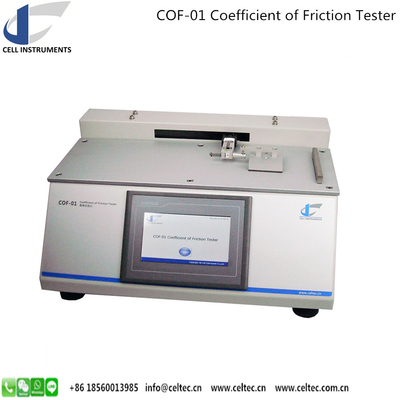

ASTM D1894 Film Coefficient of Friction Tester Surface Slip Tester Friction Coefficient Tester Equipment
The ASTM D1894 Film Coefficient of Friction Tester is a precision instrument designed to measure the static and kinetic coefficients of friction for materials such as plastic films, sheets, rubber, paper, and paperboard. Understanding these frictional properties is essential for industries like packaging, food, pharmaceuticals, and beverages to ensure optimal material performance during processing and application.
Test Principle
The testing process involves placing two samples together: a long strip fixed on a flat surface and a square sample subjected to force via a sled. The instrument measures the frictional force as the samples slide against each other, determining both static and kinetic coefficients of friction.
Technical Features
- Advanced Control System: Equipped with a PLC control and user-friendly touch screen interface for intuitive operation.
- Real-Time Data Display: Provides immediate visualization of test data, results, and friction curves.
- Comprehensive Measurements: Capable of assessing both static and kinetic coefficients of friction.
- International Standards Compliance: Designed to meet multiple global standards, including ASTM D1894, ISO 8295, TAPPI T816, and GB 10006.
- Data Analysis Capabilities: Offers test result calculation, detailed analysis, and curve superposition features.
- Connectivity and Reporting: Features RS232 output with optional professional software and a microprinter for easy result documentation.
Technical Specifications
| Load Cell | 5 N(or as required) |
| Accuracy | 0.5 F.S. |
| Sled | 200±1g (or as required) |
| Sled Size | 63.5mm*63.5mm (or as required) |
| Test Speed | 100mm/min (ISO), 150mm/min (ASTM) |
| Dimensions | 540mm(L)*380mm(W)*240mm(H) |
| Weight | NW 21kg |
| Power | 110~220V 50/60Hz |
Applications
This tester is essential for manufacturers and quality control laboratories aiming to evaluate the slip properties of materials, ensuring product efficiency and safety in real-world applications.
