Plastic Film And Sheeting Thermal Shrinkage Plastic Film Shrinkage Tester Instrument

Place of Origin China
Brand Name Cell Instruments
Certification CE
Model Number FST-01
Minimum Order Quantity 1 SET
Price Get An Offer
Packaging Details Plywood Carton
Delivery Time 3~5 days
Payment Terms TT, LC
Supply Ability At Stock

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Electronic Usage Plastic Testing Machine
Standard ASTM D2732
Leave a Message
Product Description

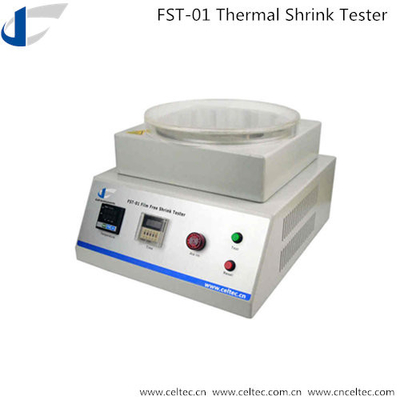

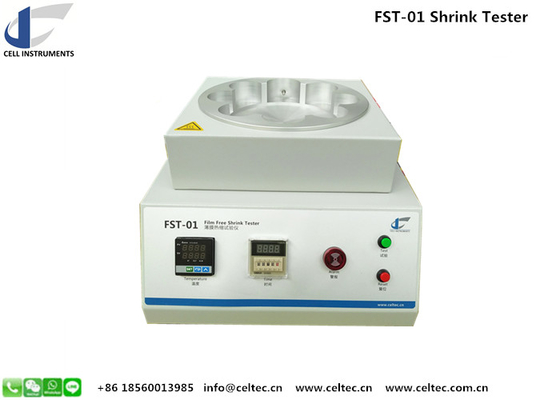

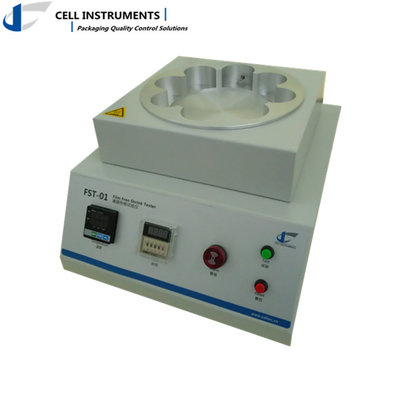

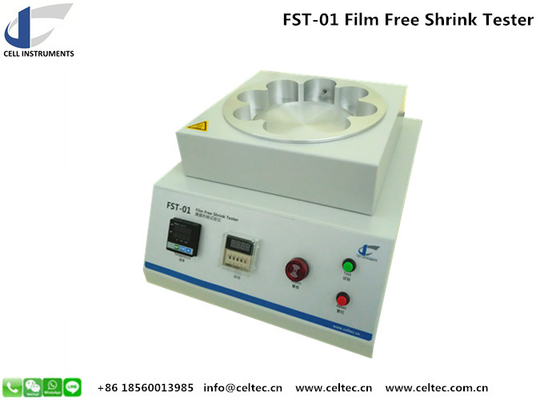

Plastic Film And Sheeting Thermal Shrinkage Plastic Film Shrinkage Tester Instrument

Introduction to the Shrinkage Tester Instrument

The Shrinkage Tester Instrument is a precision testing device designed to evaluate the unrestrained linear thermal shrinkage of plastic films and sheeting when exposed to specified temperatures. Compliant with international standards such as ISO 11501, ASTM D2732, and GB/T 13519, this instrument is essential for laboratories, quality control centers, and R&D departments seeking to maintain product integrity in applications involving heat exposure.

Plastic Film And Sheeting Thermal Shrinkage Plastic Film Shrinkage Tester Instrument 0

Whether you are in the packaging, food, medical, pharmaceutical, or academic sectors, the Shrinkage Tester Instrument enables reliable evaluation of material behavior under thermal stress, ensuring consistency in product quality, process validation, and regulatory compliance.


Why Use a Shrinkage Tester Instrument?

Understanding the thermal shrinkage properties of materials—especially plastic films—is critical to ensure packaging stability, printing alignment, and sealing performance. The Shrinkage Tester Instrument provides accurate, repeatable measurements of shrinkage rates across temperature ranges, helping manufacturers select optimal materials and adjust process parameters.

Applications include:

  • Quality inspection of packaging films in food and beverage manufacturing

  • Evaluation of shrink wrap and heat-sensitive materials

  • Research and development in material science

  • Verification of supplier material conformance


Key Features of the ISO 11501 Shrinkage Tester Instrument

Engineered with laboratory precision and ease of use in mind, this Shrinkage Tester Instrument includes the following core features:

  • P.I.D. Temperature Control: Maintains stable heating across a wide temperature range with precise tuning.

  • High-Precision Timer: Ensures accurate test timing, crucial for consistent test outcomes.

  • Audible Alarm Function: Notifies users upon test completion, improving laboratory workflow.

  • Uniform Fluid Heating System: Delivers consistent and stable heat for repeatable shrinkage testing.

  • Standardized Metal Clamp and Free Shrink Holder: Allows accurate positioning and secure holding of film specimens during testing.


Technical Specifications

Parameter Details
Maximum Specimen Size ≤ 160 mm × 160 mm
Temperature Range Room Temperature ~ 200°C
Temperature Accuracy ±0.3°C
External Dimensions (L×W×H) 370 mm × 440 mm × 280 mm
Applicable Standards ISO 11501, ASTM D2732, GB/T 13519

Test Principle and Operation

The Shrinkage Tester Instrument evaluates the thermal shrinkage by immersing the test specimen in a heated liquid medium for a set duration. The sample is initially clamped in a free-shrink condition using a square metal holder. Once the test temperature is reached, the sample undergoes heat exposure. Post-exposure measurements determine the change in dimensions, which reflects the material’s shrinkage behavior.

The fluid medium approach offers excellent thermal conductivity and uniform heating, yielding highly accurate results. With the advanced PID control system, laboratories can set precise temperature and time parameters tailored to their testing protocol.


Benefits of Using the Shrinkage Tester Instrument

  • Enhanced Product Development: Gain insight into the thermal response of new film materials.

  • Improved Process Control: Identify inconsistencies in film shrinkage behavior to refine production.

  • Regulatory Compliance: Ensure your products meet ISO 11501, ASTM D2732, and other international standards.

  • Cost Reduction: Avoid packaging failure, product damage, and rework due to improper material selection.

  • Data Traceability: With stable operation and reproducible results, the instrument supports traceable testing for audits and certifications.


Common Test Materials

The Shrinkage Tester Instrument is ideal for testing a wide range of thermoplastic films and sheets, including:

  • Polyethylene (PE)

  • Polypropylene (PP)

  • Polyvinyl Chloride (PVC)

  • Polyethylene Terephthalate (PET)

  • Polystyrene (PS)

  • Shrink film and heat-sealable packaging

These materials are commonly used in flexible packaging, shrink wrap applications, medical packaging, and multilayer structures requiring consistent dimensional behavior upon heat exposure.


Industry Applications

The Shrinkage Tester Instrument serves a broad range of industries, including:

  • Packaging: Evaluation of shrink film properties in heat shrink tunnels

  • Food and Beverage: Ensuring label alignment and shrink wrap performance

  • Pharmaceutical: Compliance testing for blister packaging and film layers

  • Academic Research: Material characterization and polymer behavior studies

  • Plastic Film Manufacturing: Batch QC and raw material verification


Compliance with International Standards

This Shrinkage Tester Instrument fully conforms to the following standards:

  • ISO 11501: Plastics—Film and sheeting—Determination of dimensional change on heating

  • ASTM D2732: Standard Test Method for Unrestrained Linear Thermal Shrinkage of Plastic Film and Sheeting

  • GB/T 13519: Chinese national standard for plastic film shrinkage evaluation


Why Choose Our Shrinkage Tester Instrument?

At Cell Instruments, we deliver precision-engineered testing equipment designed to meet your material testing needs. Our Shrinkage Tester Instrument offers the ideal blend of high accuracy, robust design, and intuitive operation. With years of experience serving packaging, medical, and materials industries, we ensure that every product reflects our commitment to quality, innovation, and customer satisfaction.

We also provide custom automation, data logging, and remote validation options for advanced lab workflows.
