Film Packaging Material Heat seal tester equipment PLCcontrol

1 set
MOQ
Film Packaging Material Heat seal tester equipment PLCcontrol
Features Gallery Product Description Request A Quote
Features
Specifications
Power: 220V
Name: Heat Seal Tester
Warranty: 1 Years
Basic Infomation
Place of Origin: China
Brand Name: Cell Instruments
Model Number: HST-01
Payment & Shipping Terms
Packaging Details: export carton
Payment Terms: TT LC
Supply Ability: 100 sets per month
Minimum Order Quantity: 1 set
Product Description

Heat Seal Tester is professionally designed for the precise measurement of the three parameters of temperature, time and pressure in the heat seal process.



It conforms to standards of ASTM F2029, QB/T 2358 and YBB 00122003.

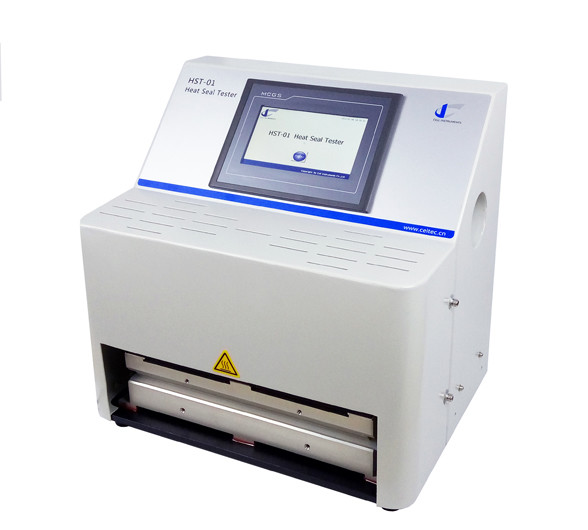

Film Packaging Material Heat seal tester equipment PLCcontrol 0

Heat Seal Tester Biscuit pack heat sealer Milk pack heat seal tester principle



Place a sample between two-heated sealing jaws of HST-01 Heat Seal Tester with flat surfaces when the required temperature reaches equilibrium. The upper seal jaw, driven by a gas cylinder, is pushed down, to exert a certain pressure on the sample and remain for some time. When the preset sealing time ends, the upper sealing jaw returns to its original position and the whole heatsealability testing process finishes.









Heat Seal Tester Biscuit pack heat sealer Milk pack heat seal tester Features

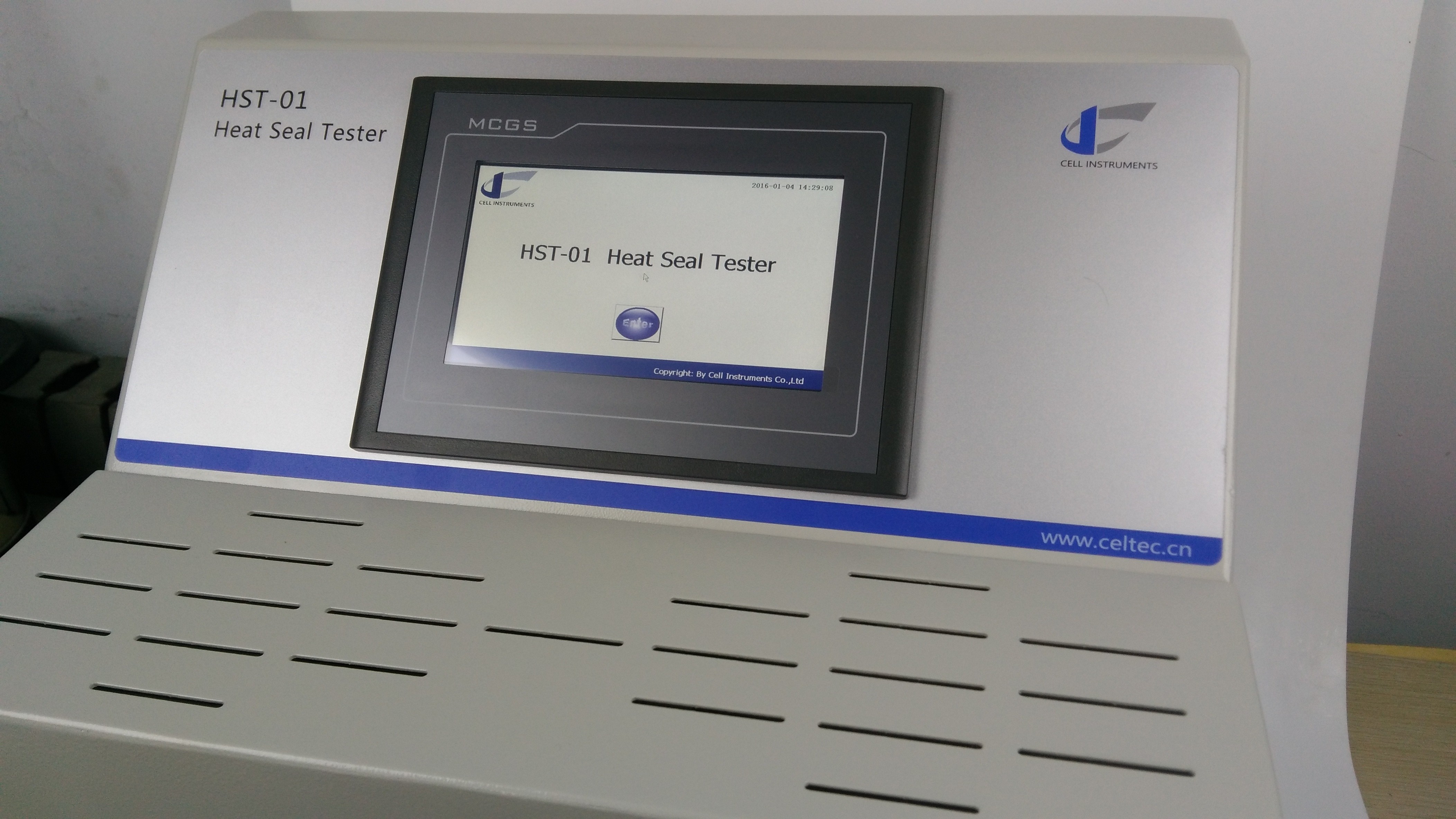

1. 7 inch TFT touching screen makes parameter setting and operation easy and convenient for HST-01 Heat Seal Tester.

2. PLC for precise dwell time and sealing pressure control

3. P.I.D. for precise sealing temperature control

4. Uniform heating by aluminum encapsulated sealing jaws and no inhomogeneous heating

5. Independent heating of upper and lower jaws

6. Sealing jaw customization available

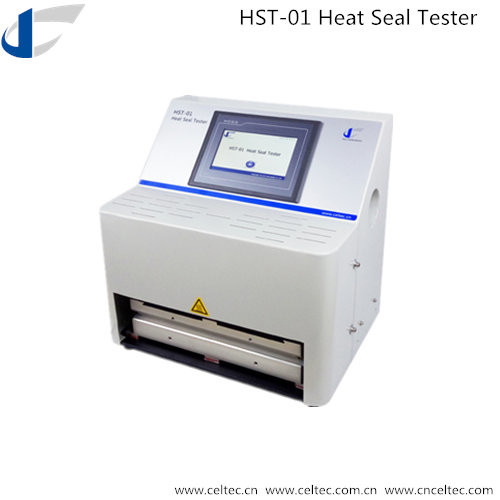

Film Packaging Material Heat seal tester equipment PLCcontrol 1



Heat Seal Tester Biscuit pack heat sealer Milk pack heat seal tester Technical specifications

temperature Room Temperature ~ 300℃
Deviation ±0.2℃
Dwell time 0.1 s~9999s
Sealing pressure 0.15 MPa ~ 0.7 MPa
Sealing Jaws 330mm×10mm(Sealing Surface)
Double Heating of Upper and Lower Jaws (Customization Available)



Standard

ASTM F2029, QB/T 2358, YBB 00122003



Heat Seal Tester Plastic Heat Sealer ASTM F2029 Plastic Film Heat Sealing Hot Tack Test Machine

Heat Seal Tester Plastic Heat Sealer ASTM F2029 Plastic Film Heat Sealing Hot Tack Test Machine
