ASTM F2029 Medical Foil Heat Seal Performance Tester for Lab Use

Place of Origin China
Brand Name Cell Instruments
Certification CE
Model Number HST-01
Minimum Order Quantity 1 SET
Price Get An Offer
Packaging Details Plywood Carton
Delivery Time 3~5 days
Payment Terms TT, LC
Supply Ability At Stock

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 220V Name Heat Seal Tester
Warranty 1 Years
Leave a Message
Product Description

Heat Seal Tester is professionally designed for the precise measurement of the three parameters of temperature, time and pressure in the heat seal process.



It conforms to standards of ASTM F2029, QB/T 2358 and YBB 00122003.

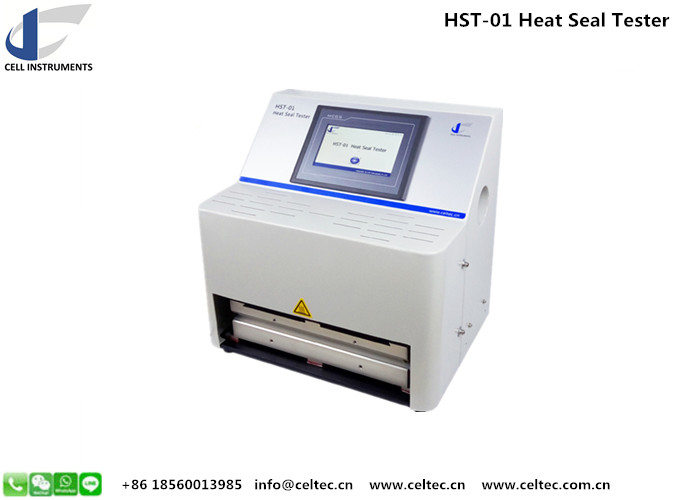

ASTM F2029 Medical Foil Heat Seal Performance Tester for Lab Use 0

Heat Seal Tester Biscuit pack heat sealer Milk pack heat seal tester principle



Place a sample between two-heated sealing jaws of HST-01 Heat Seal Tester with flat surfaces when the required temperature reaches equilibrium. The upper seal jaw, driven by a gas cylinder, is pushed down, to exert a certain pressure on the sample and remain for some time. When the preset sealing time ends, the upper sealing jaw returns to its original position and the whole heatsealability testing process finishes.









Heat Seal Tester Biscuit pack heat sealer Milk pack heat seal tester Features

1. 7 inch TFT touching screen makes parameter setting and operation easy and convenient for HST-01 Heat Seal Tester.

2. PLC for precise dwell time and sealing pressure control

3. P.I.D. for precise sealing temperature control

4. Uniform heating by aluminum encapsulated sealing jaws and no inhomogeneous heating

5. Independent heating of upper and lower jaws

6. Sealing jaw customization available

ASTM F2029 Medical Foil Heat Seal Performance Tester for Lab Use 1



Heat Seal Tester Biscuit pack heat sealer Milk pack heat seal tester Technical specifications

temperature Room Temperature ~ 300℃
Deviation ±0.2℃
Dwell time 0.1 s~9999s
Sealing pressure 0.15 MPa ~ 0.7 MPa
Sealing Jaws 330mm×10mm(Sealing Surface)
Double Heating of Upper and Lower Jaws (Customization Available)



Standard

ASTM F2029, QB/T 2358, YBB 00122003



ASTM F2029 Medical Foil Heat Seal Performance Tester for Lab Use 2
