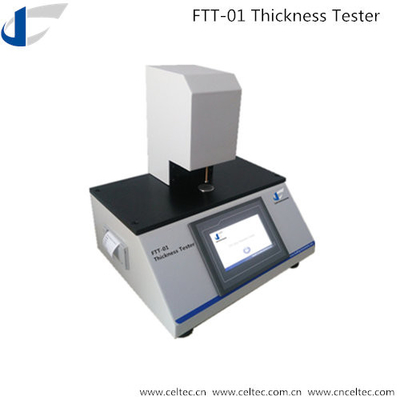

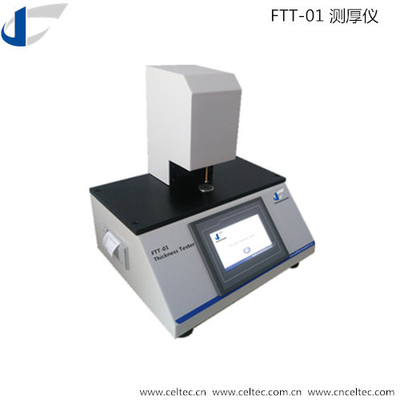

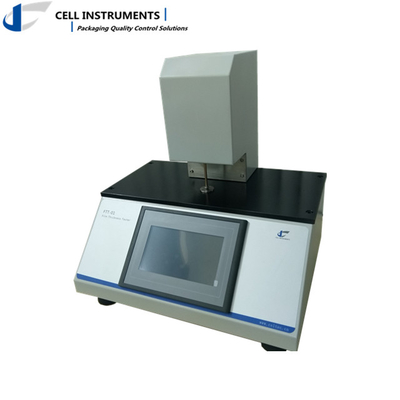

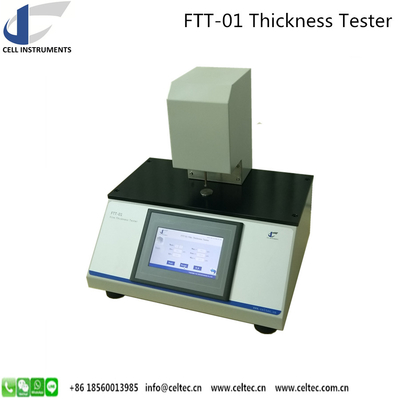

Thickness tester employs mechanical scanning method to measure the thickness of plastic films, sheets, board, fabrics, textile, membranes, paper, foil, wafers and other materials.
Summary of test method

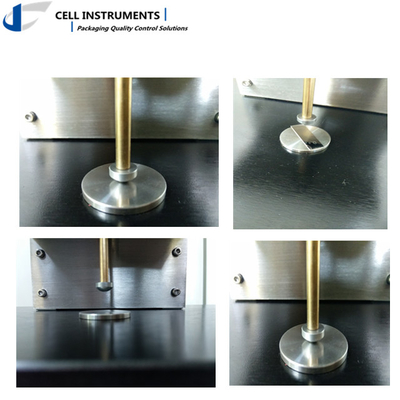

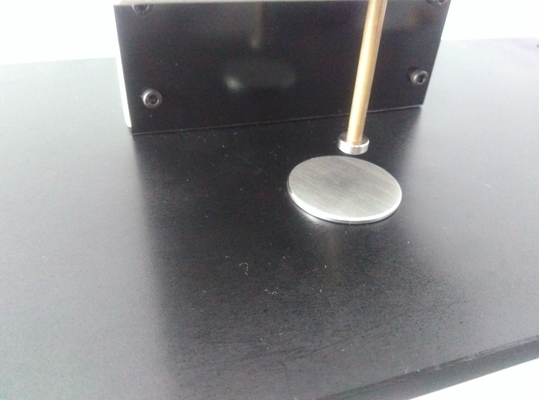

A specimen is placed on the base and a weighted presser foot lowered. The displacement between the base and the presser foot is measured as the thickness of the specimen.
Test Range 0~2mm(Customization available)
Resolution 0.1 μm
Measuring pressure 17.5±1 KPa (for film); 50±1 KPa (for paper, optional)(flat foot)
Contact area 50 mm2 (for film); 200 mm2 (for paper, optional)(flat foot)
Power AC 220V 50Hz (Customization available)
It complies with the following standards:
ASTM D374-99: Standard Test Methods for Thickness of Solid Electrical Insulation
ASTM D1777: Standard Test Method for Thickness of Textile Materials
ISO 4593: Plastics; Film and sheeting; Determination of thickness by mechanical scanning
ISO 534-2011: Paper and board -- Determination of thickness, density and specific volume
ISO 3034:2011: Corrugated fibreboard -- Determination of single sheet thickness
TAPPI T411, JIS K6250, JIS K6783, JIS Z1702, BS 3983, BS 4817
