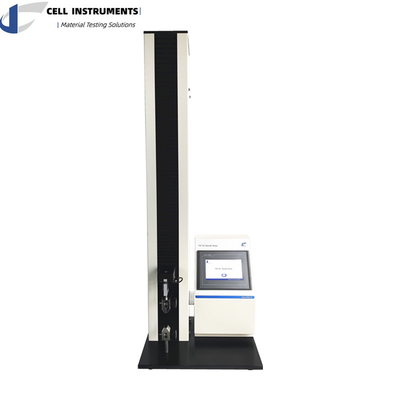

Astm D3330 Pressure Sensitive Tape Peel Tester For Tape Adhesion Tensile Testing Equipment 180 Degree Peel Tester

Place of Origin China
Brand Name Cell Instruments
Certification CE
Model Number TST-01
Minimum Order Quantity 1 Set
Price GET AN OFFER
Packaging Details Plywood Carton
Delivery Time 3 days
Payment Terms L/C, T/T
Supply Ability 100 Sets/Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Test Range 0-500N (or 50N, 100N, 200N, Etc) Stroke 800mm (customizable For Other Strokes)
Test Speed 1~500mm/min Displacement Accuracy 0.01mm
Accuracy 0.5% Full Scale Sample Width 27mm (optional Width Available)
Control PLC And HMI Screen Data Output Microprinter (optional), RS232 (optional)
Leave a Message
Product Description

Introduction of Rubber Tensile Testing Machine

Tensile testing machines play a crucial role in the quality inspection of pressure-sensitive adhesive tapes. This machine is designed to measure the tensile strength, elongation, and other mechanical properties of materials, including adhesive tapes.

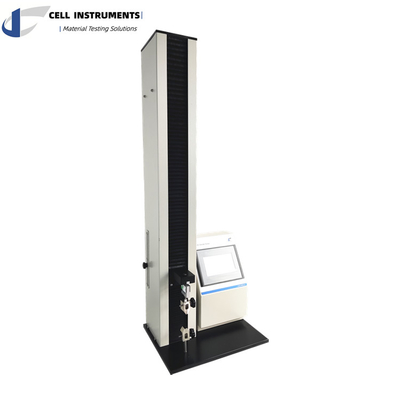

Astm D3330 Pressure Sensitive Tape Peel Tester For Tape Adhesion Tensile Testing Equipment 180 Degree Peel Tester 0



Tensile Testing Application

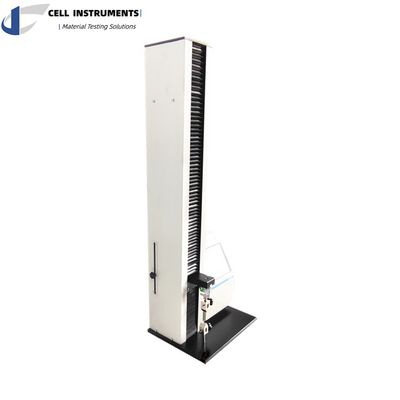

Astm D3330 Pressure Sensitive Tape Peel Tester For Tape Adhesion Tensile Testing Equipment 180 Degree Peel Tester 1

Pressure-sensitive adhesive tapes are widely used in various industries for bonding, sealing, and packaging purposes. The mechanical properties of these tapes, such as tensile strength, elongation, and adhesive performance, are critical to their effectiveness in different applications. Tensile testing provides valuable data on how a tape will perform under tension, helping manufacturers ensure that their products meet quality standards and customer requirements.

Tensile Test items

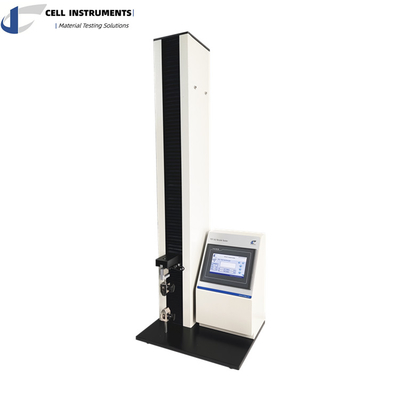

Astm D3330 Pressure Sensitive Tape Peel Tester For Tape Adhesion Tensile Testing Equipment 180 Degree Peel Tester 2

1. Tensile Strength

Tensile strength measures the maximum force a material can withstand when subjected to a stretching force. For adhesive tapes, this property is crucial as it reflects the tape's ability to resist breaking or tearing under tension.

2. Elongation

Elongation at break indicates the flexibility and stretchability of the tape. Understanding how much a tape can stretch before breaking is essential for applications where flexibility is critical, such as in curved surfaces or during application.

3. Peel Strength

Tensile machines are also used to measure peel strength, which is the force required to peel the tape from a substrate. This property is crucial in applications where the tape needs to adhere securely to surfaces.

Technical Features

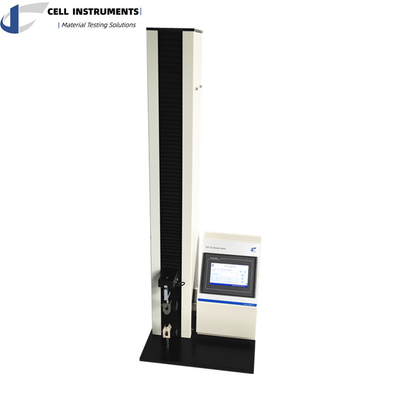

Astm D3330 Pressure Sensitive Tape Peel Tester For Tape Adhesion Tensile Testing Equipment 180 Degree Peel Tester 3

This unit is under PLC control (with industrial-level stability) and operated through an HMI touch screen. The use of a precision ball lead screw mechanism ensures consistent and accurate speed and displacement control. It features a specially designed program catering to tests including break, tension, elongation, seal strength, 90° peeling, and 180° peeling. The key features include:

  1. A 7-inch TFT touch screen for user-friendly operation.
  2. PLC control for efficient functioning.
  3. Precision ball lead screw for reliable results.
  4. Adjustable test speed.
  5. Compatibility with multiple fixtures.
  6. Equipped with a limiting device and automatic returning function.
  7. Availability of various test items.
  8. Optional inclusion of a microprinter.
  9. RS 232 port for data communication and optional professional software.

Main Parameters

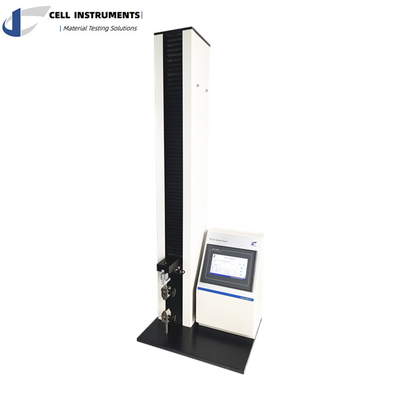

Astm D3330 Pressure Sensitive Tape Peel Tester For Tape Adhesion Tensile Testing Equipment 180 Degree Peel Tester 4

TST-01
Test Range 0-500N (or 50N, 100N, 200N, etc)
Stroke 800mm (customizable for other strokes)
Test Speed 1~500mm/min
Displacement Accuracy 0.01mm
Accuracy 0.5% Full Scale
Sample Width 27mm (optional width available)
Control PLC and HMI Screen
Data Output Microprinter (optional), RS232 (optional)



Related Standards

Several standards outline the testing procedures for pressure-sensitive adhesive tapes. Some of the key standards include:

  1. ASTM D3330——Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape.
  2. ASTM D3759——Standard Test Method for Tensile Strength and Elongation of Pressure-Sensitive Tapes.
  3. ISO 37——Rubber, vulcanized or thermoplastic — Determination of tensile stress-strain properties.

Conclusion

Tensile testing machines provide manufacturers of pressure-sensitive adhesive tapes with valuable insights into the mechanical behavior of their products. Adhering to industry standards and conducting these tests helps ensure the quality, reliability, and performance of adhesive tapes in various applications across different industries.
