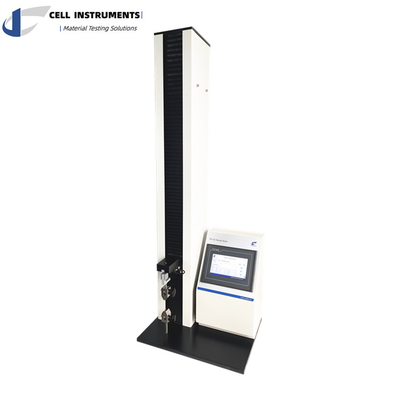

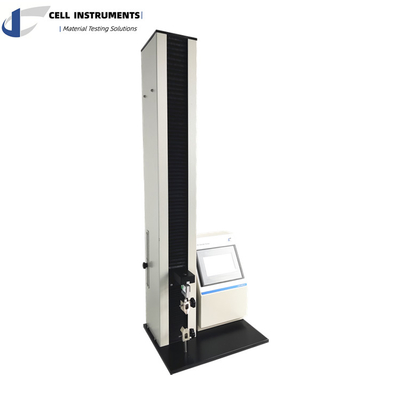

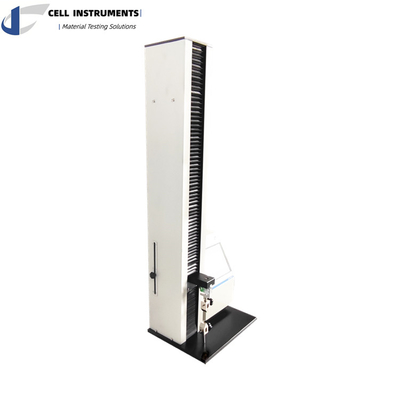

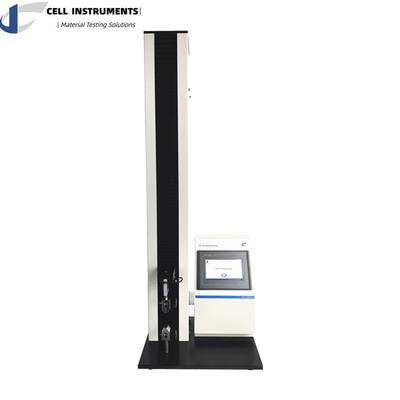

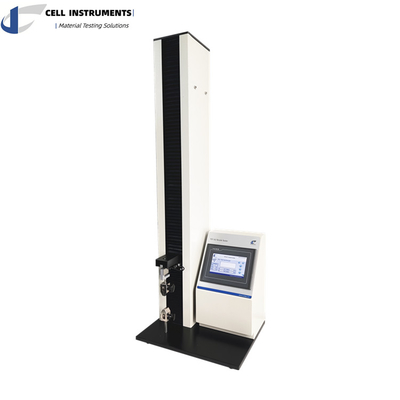

ASTM D4964 Tension And Elongation Testing Machine For Elastic Fabrics Plastic Film Tensile Breaking Tester

The Plastic Film Tensile Breaking Tester is an essential tool for evaluating the mechanical properties of flexible materials, including plastic films, laminates, and coatings. This testing machine is crucial for industries like packaging, food, beverage, pharmaceuticals, and textiles, providing reliable and accurate data for quality assurance, product development, and compliance with global standards.

Introduction to the Plastic Film Tensile Breaking Tester

The Plastic Film Tensile Breaking Tester is designed to perform precise tensile tests on various materials, including plastic films and flexible laminates. Using standardized testing methods, this machine applies controlled force to materials until they break or undergo specified deformation. It is equipped with advanced features, such as PLC control, an HMI touch screen, and a precision ball lead screw mechanism, ensuring accurate results every time.

Applications of the Plastic Film Tensile Breaking Tester

The Plastic Film Tensile Breaking Tester plays a crucial role in quality control across numerous industries, including:

• Packaging Industry: Ensures that films and laminates used for packaging meet strength and durability standards, preventing failures during product handling.
• Food Industry: Tests food packaging films to ensure that they can withstand stress during production, transportation, and storage.
• Pharmaceutical Industry: Assesses the tensile strength of films and laminates used in packaging medicines, ensuring protection and stability.
• Beverage Industry: Verifies the performance of plastic films used in beverage packaging, maintaining the integrity of the product.

By simulating real-world conditions, the Plastic Film Tensile Breaking Tester helps manufacturers identify potential material failures before they reach consumers.

Why Use the Plastic Film Tensile Breaking Tester?

1. Comprehensive Testing: The tester provides valuable insights into a material's tensile strength, elongation, and bonding properties, ensuring it meets the necessary standards.

2. Accurate and Reliable Results: The machine offers precision with a 0.01mm displacement accuracy and a testing speed of up to 500mm/min. It guarantees consistency, essential for both research and production environments.

3. Industry Compliance: Meets international testing standards, such as ASTM D4964, ASTM D3330, and ISO 527, which are widely recognized in the flexible laminate and packaging industries.

4. User-Friendly Interface: With an HMI touch screen and PLC control, the Plastic Film Tensile Breaking Tester is easy to operate, even for users with minimal technical experience.

Key Features of the Plastic Film Tensile Breaking Tester

• Test Range: 0-500N, customizable for various testing needs (50N, 100N, 200N, etc.)
• Stroke: 800mm (customizable for different requirements)
• Test Speed: Adjustable between 1mm/min to 500mm/min for diverse testing applications.
• Precision and Accuracy: Displacement accuracy of 0.01mm, with an overall test accuracy of 0.5% full scale.
• PLC and HMI Control: Allows for precise control and easy operation through a 7-inch TFT touch screen.
• Customizable Sample Width: Standard sample width of 27mm, with optional widths available.
• Data Communication: Includes an RS 232 port for seamless data transfer and optional microprinter for on-site printing.

How the Plastic Film Tensile Breaking Tester Works

The Plastic Film Tensile Breaking Tester works by gradually applying force to a material sample until it breaks or reaches its maximum deformation point. During the test, the machine records essential data points, such as the maximum force the material can withstand and the elongation before failure. This data is essential for determining whether the material is suitable for its intended use in packaging or other applications.

Related Testing Standards

The Plastic Film Tensile Breaking Tester complies with multiple industry standards, ensuring reliable and consistent testing. Some of the most relevant standards include:

• ASTM D3330: Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape
• ASTM D3759: Standard Test Method for Tensile Strength and Elongation of Pressure-Sensitive Tapes
• ISO 527: Plastics - Determination of Tensile Properties
• ASTM F904: Standard Test Method for Comparison of Bond Strength or Ply Adhesion of Similar Laminates Made from Flexible Materials

Conclusion

The Plastic Film Tensile Breaking Tester is an indispensable tool for manufacturers seeking to ensure the quality and reliability of flexible materials used in a wide range of industries. With its precision, versatility, and adherence to global standards, this machine enables users to make informed decisions, optimize product designs, and ensure that their materials are strong and reliable.

Whether you're in packaging, food, pharmaceuticals, or textiles, the Plastic Film Tensile Breaking Tester helps streamline your testing processes, enhance product quality, and ensure compliance with industry standards.
