Tire Cof Testing Equipment ISO 8295 Friction Tester For Woven Bag Packaging And Printing Quality Control
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Load Cell | 5 N(or As Required) | Accuracy | 0.5 F.S. |
|---|---|---|---|
| Sled | 200±1g (or As Required) | Sled Size | 63.5mm*63.5mm (or As Required) |
| Test Speed | 100mm/min (ISO), 150mm/min (ASTM) | Dimensions | 540mm(L)*380mm(W)*240mm(H) |
| Weight | NW 21kg | Power | 110~220V 50/60Hz |
Product Description

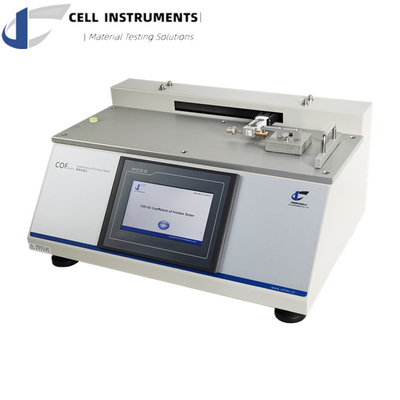

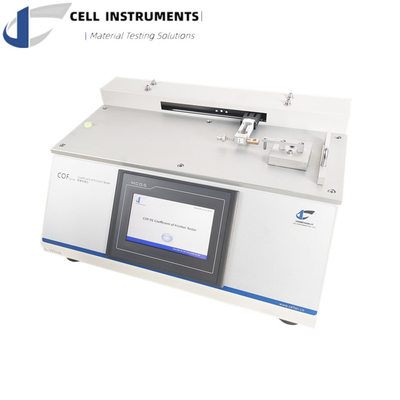

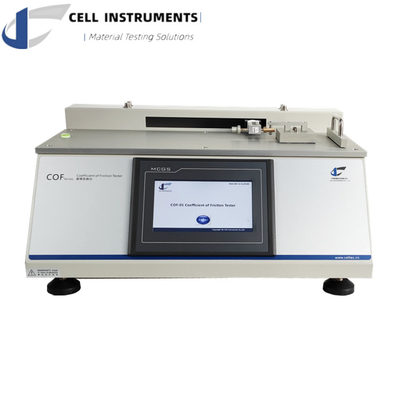

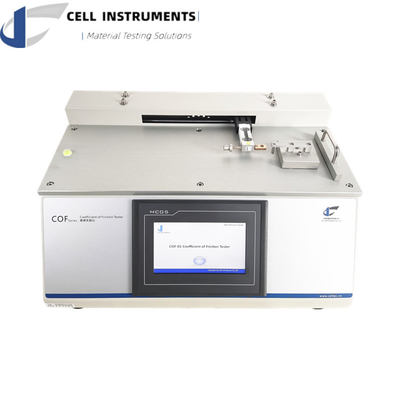

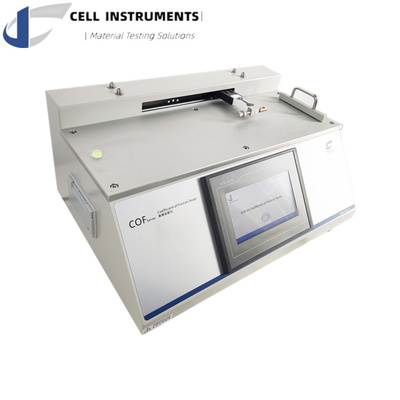

Tire Cof Testing Equipment ISO 8295 Friction Tester For Woven Bag Packaging And Printing Quality Control
ISO 8295 Friction Tester for Coefficient of Friction Measurement
The ISO 8295 Friction Tester is an advanced testing instrument designed to measure the coefficient of friction (COF) between various materials. The coefficient of friction is a key property that determines how materials interact with each other in terms of movement and resistance. This property is especially important for industries where surface interaction plays a crucial role, such as packaging, food processing, pharmaceuticals, automotive, and textiles. Understanding and controlling the friction between surfaces can prevent operational inefficiencies, product defects, and safety issues.
Understanding the Coefficient of Friction
The coefficient of friction is a numerical value that measures the resistance encountered when one surface slides against another. A low COF indicates smooth motion with less resistance, while a high COF suggests a greater need for force to overcome friction. The ISO 8295 Friction Tester plays a vital role in assessing both the static and kinetic coefficients of friction, providing accurate and reliable results to help industries control and optimize their materials’ behavior during processing and use.
In many industries, factors like antiblock additives, inks, adhesives, anti-static agents, and coatings significantly affect the coefficient of friction. The ISO 8295 Friction Tester is equipped to measure how these substances influence friction, offering comprehensive insights that are essential for improving product performance, quality, and safety.
Applications of ISO 8295 Friction Tester
The ISO 8295 Friction Tester is versatile and widely used across a broad range of industries. Some of the most common applications include:
- Plastic Films: The tester evaluates the slipperiness of plastic films, essential in packaging, food, and pharmaceutical industries where smooth processing is critical.
- Rubber and Sheets: It measures the frictional characteristics of rubber and sheets, offering valuable data for applications in manufacturing, automotive, and construction.
- Paper and Paperboard: The tester is crucial for the paper and packaging industries, ensuring the right friction properties for efficient production and use.
- Textiles (Woven and Non-Woven Fabrics): Testing friction in textiles aids industries like fashion, medical textiles, and furniture to assess the behavior of fabrics under different conditions.
- Metal-Plastic Composite Belts: The tester measures friction in composite materials used in conveyor belts, communication cables, and other industrial applications.
- Wood, Coatings, Brake Pads, and Windshield Wipers: The tester assesses friction for materials used in construction, automotive, and safety-critical applications.
- Shoe Materials and Tires: Ensuring the correct friction properties of shoe materials and tires is critical for safety and performance in footwear and automotive industries.
Why Choose ISO 8295 Friction Tester?
Our ISO 8295 Friction Tester is engineered for precision and reliability. Designed to meet industry standards such as ASTM D1894, ISO 8295, TAPPI T816, and GB 10006, it guarantees accuracy in measuring friction across a wide variety of materials. Whether you need to assess static or kinetic coefficients of friction, the ISO 8295 Friction Tester offers unparalleled performance.
Key features include:
- PLC Control and HMI Touch Screen: The industrial-grade design ensures stability and an extended service life, while the user-friendly interface allows for easy operation.
- Precision Mechanism: Powered by a stepper motor and a precision ball lead screw for accurate and repeatable testing results.
- Real-Time Data Display: Test curves are displayed in real-time, and the tester automatically records the maximum, minimum, and average test results, providing you with detailed insights into material performance.
- Versatility: The ISO 8295 Friction Tester can measure both static and kinetic coefficients of friction, offering comprehensive testing for diverse applications.
Technical Features of ISO 8295 Friction Tester
| Load Cell | 5 N(or as required) |
| Accuracy | 0.5 F.S. |
| Sled | 200±1g (or as required) |
| Sled Size | 63.5mm*63.5mm (or as required) |
| Test Speed | 100mm/min (ISO), 150mm/min (ASTM) |
| Dimensions | 540mm(L)*380mm(W)*240mm(H) |
| Weight | NW 21kg |
| Power | 110~220V 50/60Hz |
These specifications ensure that the ISO 8295 Friction Tester delivers accurate, reliable, and consistent results, whether you're testing packaging materials, rubber, textiles, or other surfaces where friction plays a key role.
Standards Compliance
The ISO 8295 Friction Tester complies with multiple industry standards to guarantee the highest levels of precision in testing, including:
- ASTM D1894 – Standard Test Method for Static and Kinetic Coefficients of Friction of Plastic Film and Sheeting
- ISO 8295 – Plastics: Film and Sheeting – Determination of the Coefficient of Friction
- TAPPI T816 – Coefficient of Friction of Paper, Paperboard, and Corrugated Fiberboard
- GB 10006 – Chinese National Standard for the Friction of Packaging Materials
These standards ensure that the data collected from the ISO 8295 Friction Tester is valid and recognized worldwide, making it the preferred choice for quality assurance and product development in various industries.
Why Accurate Coefficient of Friction Testing is Crucial
For manufacturers, precise measurement of coefficient of friction is critical in ensuring smooth and efficient processing of materials. High or low friction can affect the manufacturing process, leading to delays, defects, and waste. The ISO 8295 Friction Tester helps eliminate these challenges by providing detailed, accurate friction data that can be used to optimize material properties and processes.
By using the ISO 8295 Friction Tester, you can improve the packaging process, enhance printing quality, and ensure the integrity of materials used in a wide range of products—from packaging to automotive parts. The tester is designed to meet the diverse needs of industries including packaging, food, pharmaceuticals, automotive, and textiles.
Contact Us for More Information
Ensure the accuracy and reliability of your coefficient of friction testing with our ISO 8295 Friction Tester. Whether you're in packaging, pharmaceuticals, automotive, or any other industry, our tester provides precise and dependable results to enhance your product quality. Reach out to us for more information or to discuss your specific testing requirements.
