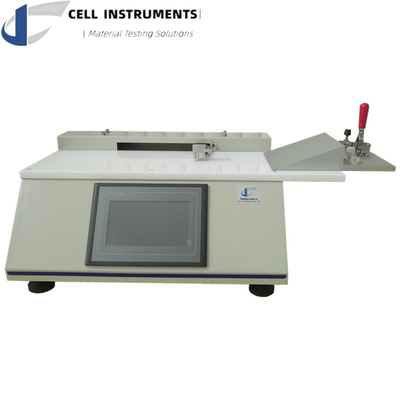

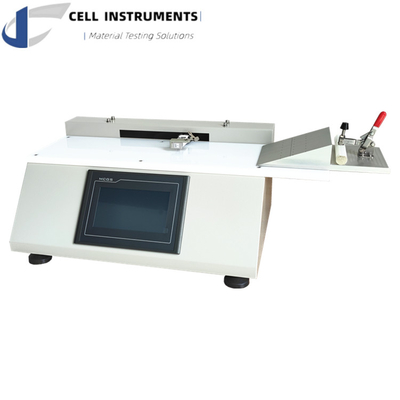

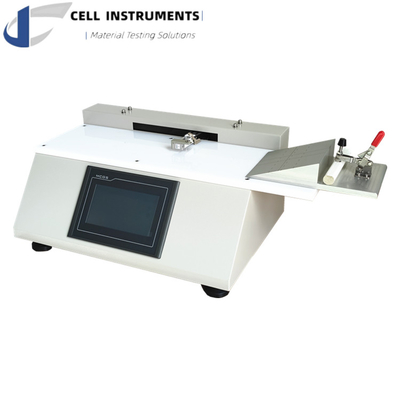

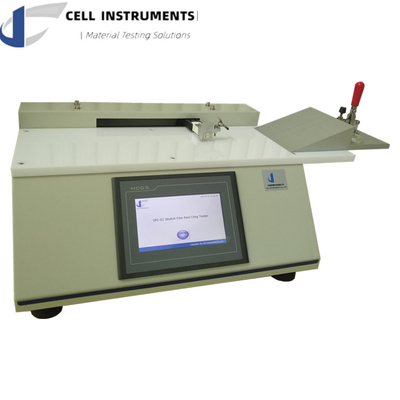

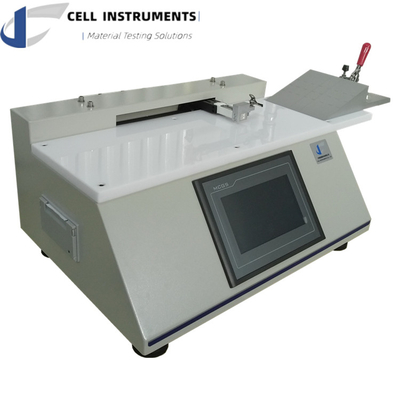

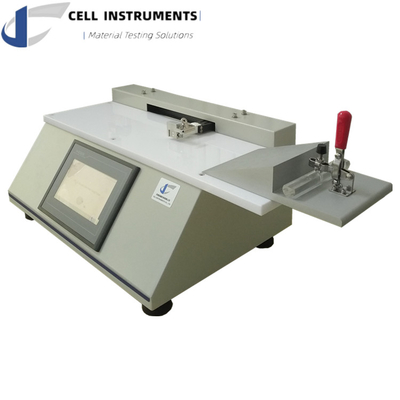

Introduction to the SPC-01 Stretch Film Peel Cling Tester

Cell Instruments proudly presents the SPC-01 Stretch Film Peel Cling Tester, a state-of-the-art instrument meticulously designed to measure cling adhesion between two layers of film. This industrial-grade device integrates advanced PLC control with an intuitive HMI touch screen interface, ensuring precise and stable performance. With a commitment to accuracy and reliability, the SPC-01 sets a new benchmark in the assessment of stretch film peel cling quality.

Technical Features of the SPC-01 Stretch Film Peel Cling Tester

The SPC-01 boasts an array of technical features that significantly enhance its performance for the Cling Peel Test:

1. PLC Control and HMI Touch Screen Operation:

   • The unit is equipped with a 7-inch TFT touch screen, providing a user-friendly human-machine interface (HMI) for easy navigation and operation.
   • Achieve industrial-level stability through precise control with a sophisticated PLC (Programmable Logic Controller) unit.

2. Precision Ball Lead Screw Mechanism:

   • This mechanism ensures accurate and consistent speed and displacement control during the Cling Peel Test, minimizing errors.

3. Adjustable Test Speed:

   • Users can customize the test speed to align with their specific testing requirements, enhancing flexibility.

4. Different Load Cell Connections:

   • Innovative load cell connections eliminate interference from friction and gravity, issues often encountered in traditional testing methods using pulleys and strings.

5. Limiting Device and Automatic Returning:

   • Enhanced safety features, including a limiting device and automatic return function, ensure secure operation during testing.

6. Real-Time Display and Peak Value Recording:

   • The 7-inch touch screen displays real-time test curves, while the instrument records peak values for comprehensive analysis.

7. Elongation Rates Support:

   • The SPC-01 accommodates elongation rates of 50%, 100%, and 200%, allowing for a thorough assessment of stretch film properties.

8. Microprinter:

   • An embedded microprinter provides convenient documentation of test results, facilitating record-keeping and reporting.

9. Optional Coefficient of Friction Function:

   • Users can opt to add a coefficient of friction function, expanding testing capabilities and enhancing the versatility of the SPC-01.

Why Choose the SPC-01 Stretch Film Peel Cling Tester?

The SPC-01 is an indispensable tool for industries that rely on stretch film for packaging. It offers precise measurements of cling adhesion, delivering crucial insights into the quality and performance of stretch wrap materials. Whether operating within the plastics, paper, textile, food, pharmaceutical, toiletry, printing, or adhesives industries, the SPC-01 ensures that the outer packaging layer adheres securely to the goods, enhancing stability during storage and transport.

Purpose of the SPC-01 Stretch Film Peel Cling Tester

The primary function of the SPC-01 is to assess the peel cling quality of stretch film. By measuring the adhesion strength between two layers of film, this tester evaluates the material's ability to adhere effectively. Understanding this adhesion strength is vital for improving the toughness, elasticity, and supporting force of the film, ultimately contributing to the overall quality and reliability of packaging.

Application of the SPC-01 Peel Cling Tester

The SPC-01 Peel Cling Tester is designed explicitly to measure cling between two layers of film, making it essential for various industries where the quality of stretch wrap material adherence is crucial. To conduct the test, two distinct types of samples are prepared: a larger substrate or backing and a smaller strip peeled from the larger sample. This method effectively evaluates the adhesion performance of the stretch film.
