Peel Cling Tester For Stretch Wrap Film Pack Film Wrap Peel Cling Strength Testing Instrument Lab Testing Instrument

Introduction to the Peel Cling Tester For Stretch Wrap Film

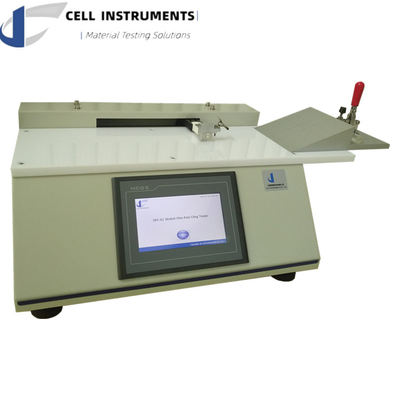

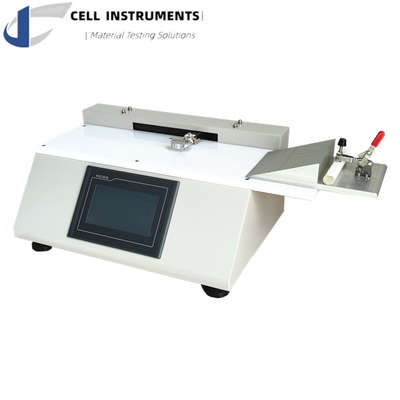

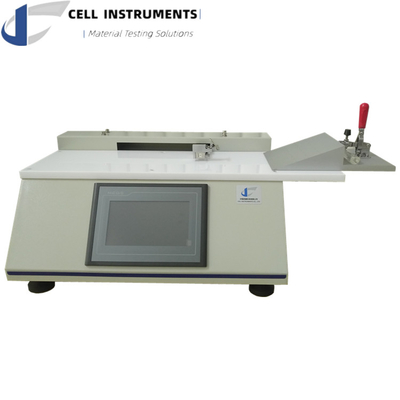

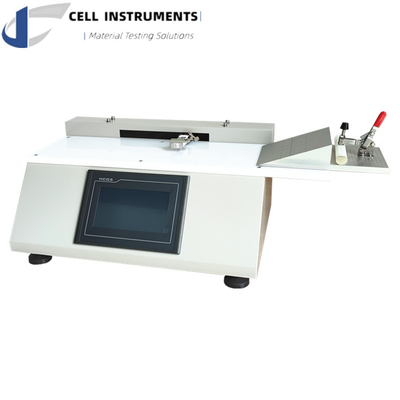

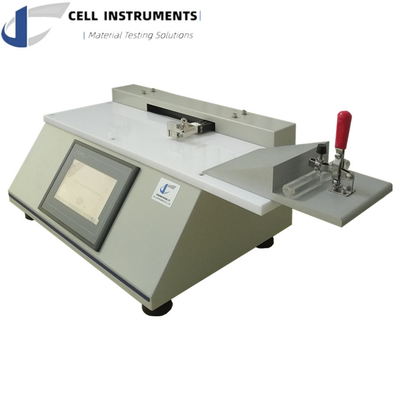

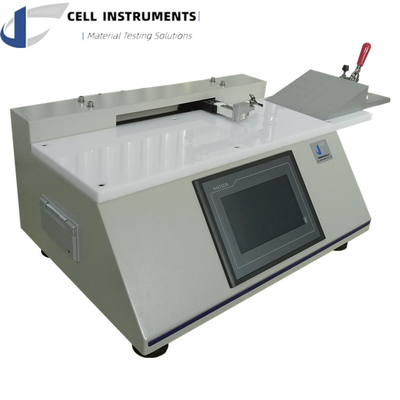

Cell Instruments proudly presents the Peel Cling Tester For Stretch Wrap Film (Model SPC-01), a state-of-the-art testing instrument specifically engineered to measure cling adhesion between two layers of stretch wrap film. This essential device features cutting-edge PLC control and an intuitive HMI (Human-Machine Interface) touch screen, ensuring precise and stable performance for reliable results. Designed with advanced technology, the Peel Cling Tester For Stretch Wrap Film sets a new industry standard for evaluating cling quality in packaging materials.

Technical Features of the Peel Cling Tester For Stretch Wrap Film

The Peel Cling Tester For Stretch Wrap Film is equipped with a multitude of advanced technical features that enhance its performance:

• PLC Control and HMI Touch Screen Operation: The instrument boasts a 7-inch TFT touch screen, providing an easy-to-navigate user interface. The PLC ensures industrial-level stability, allowing for accurate control throughout the testing process.

• Precision Ball Lead Screw Mechanism: This mechanism guarantees accurate speed and displacement control, ensuring reliable testing outcomes.

• Adjustable Test Speed: Users can customize the testing speed to align with their specific requirements, facilitating versatile application across different projects.

• Multiple Load Cell Connections: This feature mitigates interference from friction and gravity, a common issue in traditional testing setups utilizing pulleys and strings.

• Limiting Device and Automatic Return: Enhanced safety measures include a limiting device that prevents over-testing and an automatic return function for convenience.

• Real-Time Display and Peak Value Recording: The HMI allows for real-time monitoring of the test curve while recording peak values for thorough analysis.

• Support for Multiple Elongation Rates: The SPC-01 accommodates elongation rates of 50%, 100%, and 200%, allowing for comprehensive evaluations of stretch film properties.

• Microprinter for Documentation: An embedded microprinter facilitates easy documentation of test results for record-keeping and quality assurance.

• Optional Coefficient of Friction Function: Users can choose to incorporate a coefficient of friction function to expand testing capabilities.

Importance of the Peel Cling Tester For Stretch Wrap Film

The Peel Cling Tester For Stretch Wrap Film is indispensable for industries that rely on stretch film for packaging. By providing precise measurements of cling adhesion, this instrument yields critical insights into the quality and performance of stretch wrap materials. Industries such as plastics, paper, textiles, food, pharmaceuticals, toiletries, printing, and adhesives benefit from the SPC-01, ensuring that the outer layer of packaging securely adheres to products, thus enhancing pallet stability.

Purpose of the Peel Cling Tester For Stretch Wrap Film

The primary objective of the Peel Cling Tester For Stretch Wrap Film is to evaluate the cling adhesion quality of stretch film. By measuring the adhesion strength between two layers of film, this tester assesses the material’s effectiveness in adhering to itself. Such evaluations are vital for improving the toughness, elasticity, and supporting force of the film, which directly contributes to the overall quality of packaging solutions.

Application

The Peel Cling Tester For Stretch Wrap Film is meticulously designed to measure cling between two layers of film, a process critical in various sectors where the quality of stretch wrap adherence is paramount. The testing procedure involves preparing two different sample types: a larger substrate or backing and a smaller strip peeled from the larger sample. This method effectively evaluates the performance of the film under real-world conditions.
