Hot Tack Testing Method Equipment For Medical Packaging Heat Seal Strength Testing Method Composite Film Tensile Tester

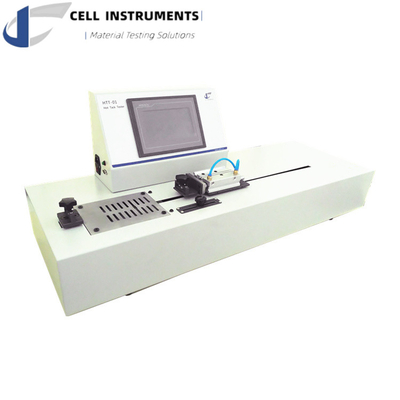

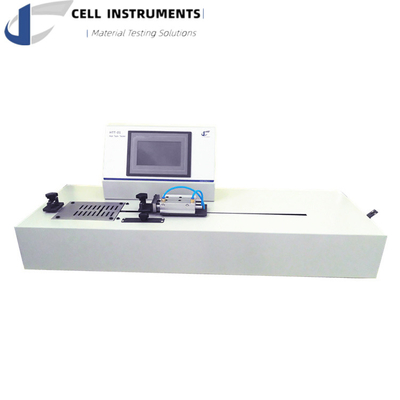

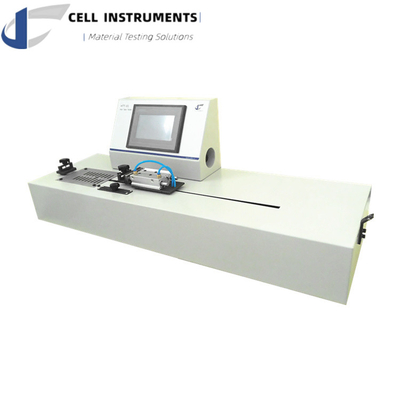

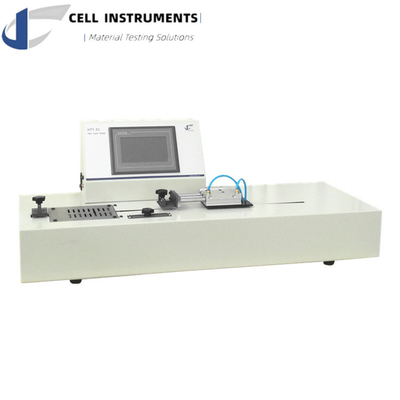

Introducing the HTT-01 Hot Tack Tester, an advanced solution meticulously crafted by Cell Instruments for evaluating the hot tack strength of heat-sealed layers. This cutting-edge instrument is indispensable across a spectrum of industries, including plastics, paper, textile, food, pharmaceuticals, toiletries, printing, and adhesives. The HTT-01 not only assesses the immediate strength of heat seals but also functions as a horizontal tensile and peeling force tester, ensuring the integrity and reliability of seals in various applications.

Technical Features of HTT-01 Hot Tack Tester

PLC Controlled Industrial Stability

Equipped with a Programmable Logic Controller (PLC), the HTT-01 ensures industrial-level stability, guaranteeing precise control and reliable performance for efficient testing operations.

HMI Touch Screen Interface

Enhanced operability is achieved through an intuitive Human-Machine Interface (HMI) touch screen, facilitating easy navigation and efficient control of the testing process.

Versatile Functionality

The HTT-01 stands out as a multifunctional device, seamlessly integrating hot tack, tensile, and peeling tests into a single unit, catering to diverse testing requirements within the packaging and industrial sectors.

Temperature Control Precision

Temperature control is paramount in hot tack testing. The HTT-01 employs a Delta P.I.D. temperature controller and PT100 temperature sensor to ensure accuracy and consistency in maintaining the desired temperature during testing.

Durable Sealing Jaws

Equipped with robust aluminum encapsulated sealing jaws, coated with Teflon and measuring 50mm x 10mm, the instrument ensures uniform and reliable sealing across different materials.

Adjustable Testing Speed

Flexibility is key, and the HTT-01 offers an adjustable testing speed ranging from 1 to 2000 mm/min, allowing users to tailor testing conditions according to specific requirements for accurate results.

Safety Features

Essential safety features such as auto zeroing, overload protection, and over-travel protection are integrated into the HTT-01, ensuring a secure testing environment and preventing potential damage during operation.

Optional RS 232 Port and Professional Software

For advanced data management, the HTT-01 can be equipped with an optional RS 232 port and professional software, facilitating enhanced data handling and providing comprehensive insights into testing outcomes.

Why Choose HTT-01 Hot Tack Tester?

In industries where packaging integrity is paramount, the HTT-01 Hot Tack Tester emerges as an indispensable tool for assessing hot tack strength immediately after sealing. Its multifunctionality, precision, and safety features make it an invaluable asset for quality control in packaging processes.

Purpose of HTT-01 Hot Tack Tester

The primary purpose of the HTT-01 Hot Tack Tester is to evaluate the hot tack strength of heat-sealed layers, particularly crucial in vertical form-fill-seal (VFFS) processes. Additionally, it serves as a horizontal tensile and peeling force tester, ensuring the overall reliability and integrity of seals across various materials.

Application of HTT-01 Hot Tack Tester

Hot Tack in Vertical Form-Fill-Seal (VFFS) Packaging:
The HTT-01 Hot Tack Tester is ideally suited for VFFS packaging applications, where maintaining seal integrity under immediate product loading is essential to prevent package failures.

Standards

The HTT-01 Hot Tack and Tensile Tester comply with industry standards, including ASTM F1921 and ASTM F2029, ensuring the reliability and reproducibility of test results.

Main Parameter
