Heat Sealing Strength Tester ASTM F2029 Double-Side Heat Sealable Film Parameter Datection In Laboratory Heat Sealing

Application of Heat Sealing Strength Tester

A Heat Sealing Strength Tester is a crucial instrument used in the packaging industry to evaluate the heat-sealing properties of a wide range of materials, including films, laminates, and other flexible packaging components. Proper heat seal strength is essential for maintaining the integrity, durability, and overall effectiveness of packaging in industries such as food, pharmaceuticals, electronics, and more. By ensuring consistent and high-quality seals, manufacturers can protect their products from contamination, tampering, and environmental factors.

Heat sealing is vital for industries requiring airtight or leak-proof packaging. The Heat Sealing Strength Tester is engineered to simulate real-world sealing conditions by applying controlled heat, pressure, and time to samples, which is especially important for food packaging, where freshness and hygiene are essential, as well as in pharmaceuticals, where product safety is paramount.

Features of the Heat Sealing Strength Tester

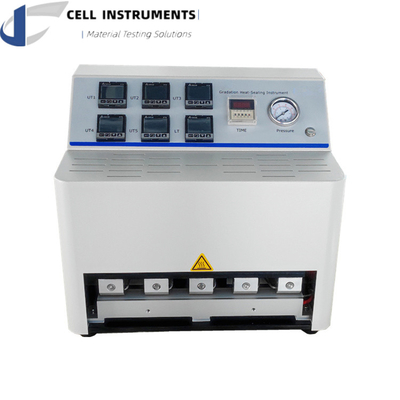

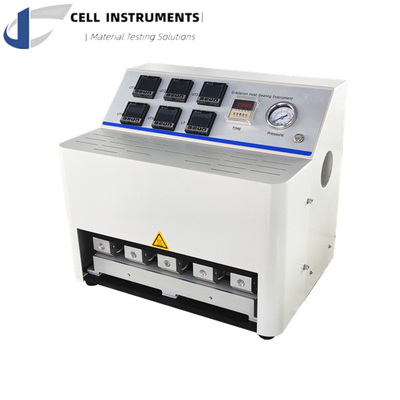

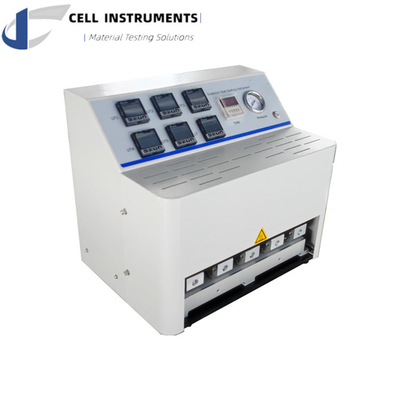

The GHS-01 Gradient Heat Seal Tester stands out for its precision in measuring the heat-seal strength of flexible materials, ensuring high accuracy and repeatability in testing. The tester applies specific heat, pressure, and time to a sample to simulate the sealing process. These adjustable settings allow for simulating different packaging conditions, making it easy to optimize sealing parameters and achieve strong, reliable seals.

The gradient feature of the Heat Sealing Strength Tester is particularly useful as it allows for the creation of a temperature gradient across the sealing area, enabling multiple temperature tests at once. This capability helps users identify the ideal temperature conditions for different materials without the need for repeated testing, significantly improving lab efficiency.

Key Standards for Heat Sealing Strength Testing

The GHS-01 Gradient Heat Seal Tester is compliant with ASTM F2029-16(2021), the industry standard for making laboratory heat seals. This standard is used to determine the heat sealability of flexible barrier materials based on seal strength. Ensuring compliance with this standard guarantees that your packaging materials are tested under rigorous and reliable conditions, providing confidence in your packaging’s performance.

Technical Features

1. Precise Temperature Control
   The GHS-01 Heat Sealing Strength Tester features advanced P.I.D. (Proportional Integral Derivative) temperature controllers for precise and efficient heat management. With independent heating for both upper and lower jaws, the machine ensures minimal heat loss and smooth temperature transitions. This level of control results in consistent and accurate test results, making the Heat Sealing Strength Tester a trusted tool in quality control laboratories.

2. Multi-Station Testing
   With up to five groups of temperature settings simultaneously, the GHS-01 Heat Sealing Strength Tester offers high-throughput testing. This feature reduces downtime and increases the productivity of laboratory environments by allowing multiple samples to be tested at different temperatures in one go. It's ideal for manufacturers needing to evaluate a range of materials or packaging designs efficiently.

3. Durable Design and Safety Features
   Built with robust aluminum sealing jaws, the Heat Sealing Strength Tester ensures long-lasting durability. It also includes safety features like anti-scald front covers and manual or foot switches, making the device safer for operators to use in high-traffic lab environments.

4. Customization Options
   For companies with specific sealing needs, the Heat Sealing Strength Tester offers customizable options, including different jaw dimensions, shapes, and sealing patterns. This flexibility makes the GHS-01 suitable for a wide variety of packaging materials, from thin films to thicker laminate materials.

Main Technical Parameters

The Test Process

The test process begins by placing a sample between two heated, parallel sealing jaws. When the designated temperature is achieved, the upper seal jaw, driven by a pneumatic cylinder, applies pressure on the sample and remains in place for the predetermined sealing time. After the sealing time elapses, the upper jaw retracts, completing the heat-sealing process.

This process allows manufacturers to measure the heat-sealing performance of materials under specific conditions, providing valuable data on the optimal sealing parameters for their packaging applications.

Heat Sealing Strength Tester Evaluation

The integrity of the heat seal is assessed by various methods depending on the requirements, including air-leak tests, dye penetration, visual inspections, and microorganism penetration tests. These evaluation techniques ensure that the packaging material can maintain its seal under different environmental conditions, guaranteeing product safety and quality over time.

Why Choose the GHS-01 Heat Sealing Strength Tester?

The GHS-01 Gradient Heat Seal Tester provides unmatched accuracy and efficiency in testing heat-sealing properties, making it ideal for a wide range of industries, including food, pharmaceuticals, and consumer electronics. Whether you need to meet stringent safety standards or improve the overall shelf-life of your products, the Heat Sealing Strength Tester is the perfect choice for ensuring reliable, high-quality seals.
