Impact Tester For Plastic Sheet Free Falling Ball High Weight Impact Testing Equipment

The Falling Ball Impact Tester, model FBT-01, developed by Cell Instruments, is an advanced solution for assessing the impact resistance and puncture resistance of materials, including films and plastic sheets. This high-precision instrument plays a crucial role in quality control and research and development, ensuring that materials meet stringent durability standards. With its advanced features and user-friendly design, the FBT-01 is an essential tool for various industries requiring accurate impact testing.

Introduction to the FBT-01 Falling Ball Impact Tester

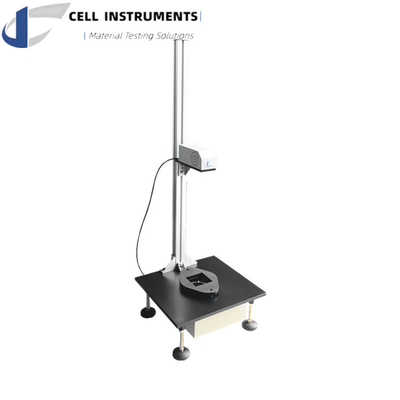

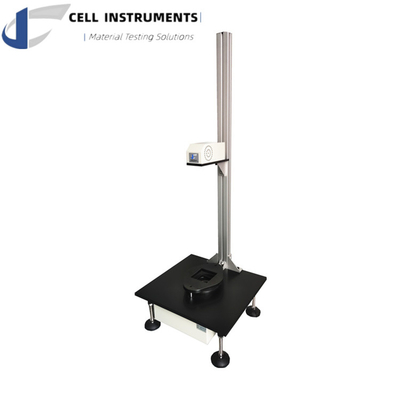

The Falling Ball Impact Tester FBT-01 is engineered to evaluate the impact resistance of materials through controlled impact tests. This tester is designed to simulate real-world conditions by dropping a steel ball from a specified height to measure how well materials withstand impact. Its precision and versatility make it ideal for applications across packaging, food, pharmaceutical, textile, and other industries.

Key Features of the Falling Ball Impact Tester

The Falling Ball Impact Tester FBT-01 is equipped with several advanced features:

• Precision PLC Control and Touch Screen Interface: The FBT-01 incorporates industrial-grade PLC control for stable performance. The intuitive HMI touch screen interface allows for easy operation and precise control of testing parameters.

• Adjustable Impact Height and Multiple Ball Options: Impact height is adjustable from 300mm to 600mm, accommodating various testing scenarios. Users can choose from different steel ball diameters (23mm, 25mm, 28.6mm, 38.1mm, and 50.8mm) to match testing requirements.

• Multi-Unit Test Result Display: The tester provides results in multiple units, simplifying data interpretation and enhancing usability.

• Electromagnetic Suspension for Automatic Ball Release: Electromagnetic suspension ensures consistent and controlled ball release, maintaining testing accuracy.

• Pneumatic Clamping Mechanism: The pneumatic specimen clamping system guarantees secure and stable positioning of materials during tests.

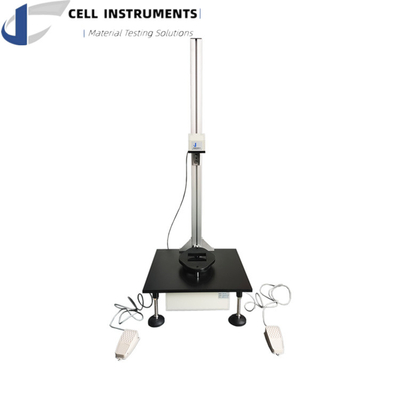

• Manual and Foot Switch Operation: The FBT-01 offers flexibility with manual operation and a foot switch for hands-free control.

• Dot Matrix Micro-Printer: A dot matrix micro-printer documents test results in real-time, supporting traceability and record-keeping.

• Advanced Professional Software (Add-On): Optional advanced software provides enhanced analysis and reporting features for comprehensive testing.

Importance of the FBT-01 Falling Ball Impact Tester

The Falling Ball Impact Tester is crucial for evaluating material impact resistance, particularly for films and plastic sheets. It addresses key industry needs:

• Quality Control: Ensures that materials meet durability standards by assessing their ability to resist impact and puncture.

• Research and Development: Facilitates the development of more robust materials through accurate impact testing.

• Compliance: Helps in adhering to industry standards and regulations by providing reliable impact resistance data.

• Customization: Offers adjustable impact height and multiple ball options for tailored testing solutions.

• Efficiency: Features advanced controls for straightforward operation, quick results, and detailed documentation.

Purpose of the Falling Ball Impact Tester

The primary purpose of the Falling Ball Impact Tester is to measure the impact and puncture resistance of various materials, including films, plastic sheets, plates, composites, foils, and paper with thicknesses less than 2mm. By simulating a controlled impact force with a falling steel ball, the tester assesses a material's ability to withstand external forces, helping prevent issues such as rupture, cracking, or deformation.

Applications Across Industries

The Falling Ball Impact Tester FBT-01 is versatile and applicable in multiple industries:

• Plastics Industry: Tests impact resistance of plastic sheets and films.
• Packaging Industry: Evaluates durability of packaging materials.
• Textile Industry: Assesses impact resistance of textile materials.
• Food Industry: Ensures packaging integrity for food products.
• Pharmaceutical Industry: Tests impact resistance of pharmaceutical packaging.
• Printing Industry: Evaluates durability of printed materials.
• Adhesives Industry: Tests impact resistance of adhesive materials.

Its versatility makes the FBT-01 a valuable tool in research facilities, commercial enterprises, academic institutions, and official laboratories.

Specifications of the FBT-01 Falling Ball Impact Tester

Main Parameters:

The Falling Ball Impact Tester FBT-01 from Cell Instruments is a sophisticated and essential tool for assessing the impact resistance of various materials. Its advanced features, precision controls, and adaptability make it indispensable for industries aiming to enhance product durability and ensure quality.
