Advanced Leak Tester With Touch Screen Price ASTM D3078 PLC Control Leak Detection For Sealed Packaging

Introduction

In today's rigorous quality assurance landscape, ensuring the integrity of package seals is critical for maintaining the effectiveness of packaging. Our advanced leak tester offers precision and reliability in leak detection, crucial for safeguarding product quality across various industries, including packaging, food, medicine, and beverages. This vacuum leak tester is designed to meet the highest standards of product safety and performance, making it an essential tool for evaluating and fine-tuning packaging seal integrity.

Test Description

1. Precision in Vacuum Leak Testing

The vacuum leak tester operates by placing the sample inside a water-filled chamber. The process begins with the chamber's lid securely fastened, followed by the extraction of air to achieve the specified vacuum level. Once the vacuum level is reached, any leaks become evident as bubbles emerge from the leak sites, providing a clear and precise indication of seal failure.

2. Enhanced Visual Confirmation

The water-filled chamber not only ensures accurate testing but also allows for visual confirmation of leaks. As air is expelled from the sample due to pressure differentials, bubbles appear at the leak sites, offering a direct visual validation of the package's integrity. This method provides more than just a Pass/Fail result; it visually identifies and pinpoints leak locations.

3. Evaluating Sample Expansion

In cases where bubbles are not present, the vacuum leak tester can assess sealing integrity through sample expansion and recovery. By creating a pressure difference between the inside and outside of the sample, the tester observes the sample's expansion and recovery after the vacuum is released. This evaluation method helps determine the sealing performance of the package.

Technical Features

1. Precision Control and Stability

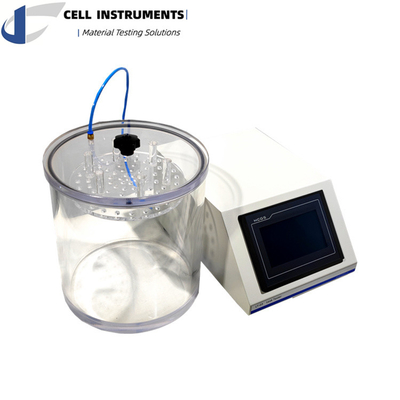

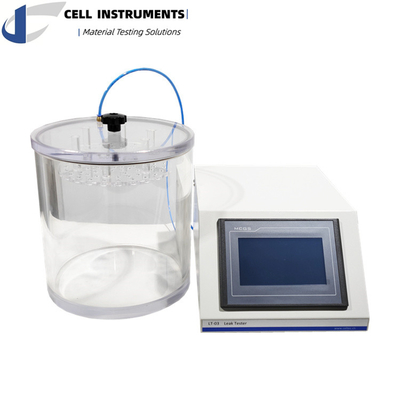

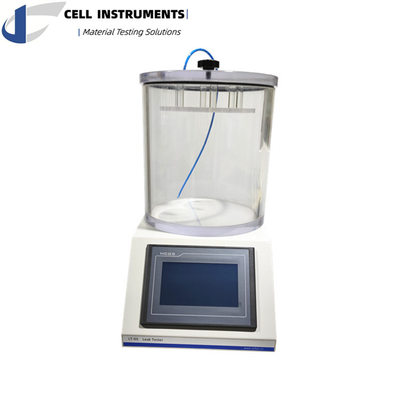

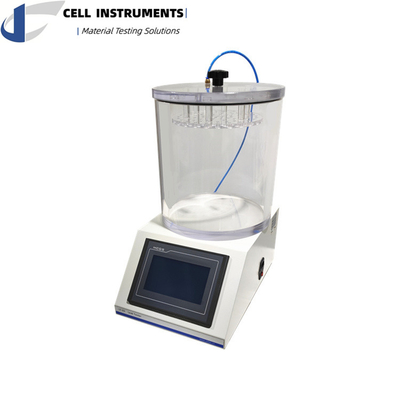

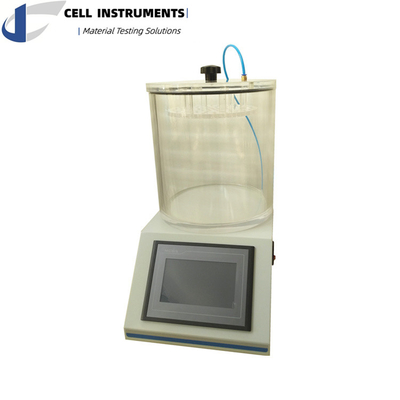

Our vacuum leak tester LT-03 incorporates a PLC-controlled unit, ensuring industrial-level stability and accuracy. The HMI touch screen interface enhances operational ease, allowing for intuitive control and monitoring of the testing process.

2. Advanced Vacuum Technology

The LT-03 employs a Venturi tube to achieve a stable vacuum level of up to -90KPa. This method utilizes readily available compressed air instead of a traditional vacuum pump, making it a more efficient and cost-effective solution.

3. Visual Analytics for Comprehensive Results

The testing process offers more than simple pass/fail results. Our system provides detailed visual analytics and cumulative result numbers, allowing for easy record-keeping and analysis. This feature ensures that users can thoroughly understand and document the testing outcomes.

4. Intelligent Efficiency

The LT-03 is equipped with a parameter-saving function that supports up to 5 different groups. This intelligent feature enhances efficiency by accommodating various samples and test conditions, including different vacuum levels and test times.

Additional Features

5. Versatile Chamber Design

The leak tester includes a standard-size acrylic chamber with transparent clarity. It is customizable to accommodate various sizes and shapes, ensuring versatility in testing different sample types.

6. Integrated Micro Printer

An optional micro printer can be included for seamless sample identification and result documentation. This feature ensures that test results are accurately recorded and easily accessible.

7. Multilingual Display

The LT-03 can be adapted to display information in local languages, catering to global users. The default language is English, but customization options are available to meet diverse user needs.

8. Flexible Operation

The system can be modified to operate with a vacuum pump if higher vacuum levels are required. This flexibility empowers users to achieve precise testing conditions tailored to specific requirements.
