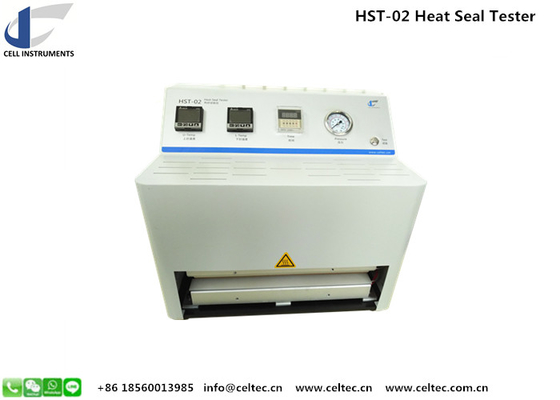

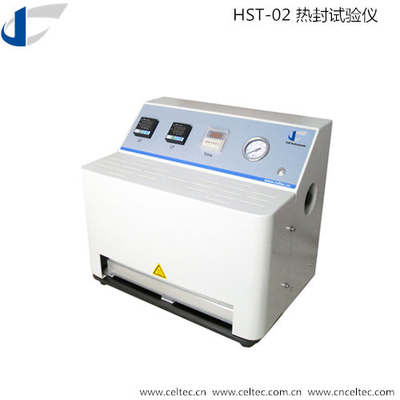

Film Heat Seal Tester Plastic Heat Sealer ASTM F2029 Hot Tack Sealing Tester For Lab Use

The Film Heat Seal Tester is an essential tool for evaluating the heat sealability of various materials, including films, laminates, composites, and polymers. This cutting-edge device ensures precise measurement of critical parameters such as temperature, time, and pressure in the heat seal process, making it indispensable for laboratory and industrial applications.

Working Principle

The Film Heat Seal Tester operates by placing a sample between two heated sealing jaws. Once the required temperature is reached, the upper seal jaw, controlled by a gas cylinder, applies a specified pressure on the sample. This process is maintained for a predetermined time before the upper jaw retracts, completing the heat sealability test.

Key Features

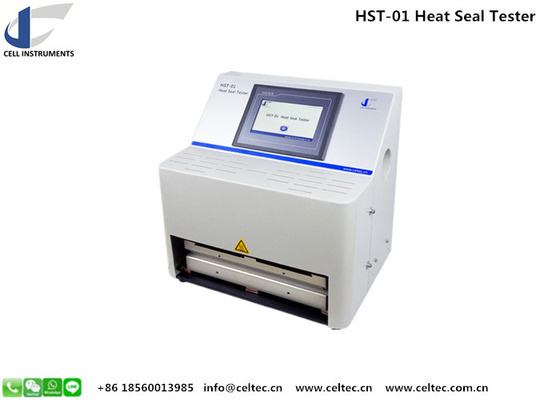

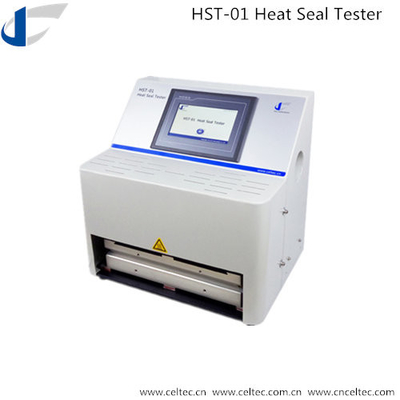

1. User-Friendly Interface: The Film Heat Seal Tester is equipped with a 7-inch TFT touch screen, simplifying parameter setting and operation.
2. Precision Control: Utilizes PLC for exact dwell time and sealing pressure management, and P.I.D. for accurate temperature control.
3. Uniform Heating: Features aluminum encapsulated sealing jaws to ensure consistent heating and avoid inhomogeneous results.
4. Customizable Settings: Multiple test parameters can be saved, reducing setup time and minimizing human error. Customization of sealing jaws in terms of dimension, shape, and surface is available.
5. Optional Software: Advanced software for additional functionality and data management is available.

Technical Specifications

• Temperature Range: Room Temperature ~ 300℃
• Temperature Deviation: ±0.2℃
• Dwell Time: 0.1 s ~ 9999 s
• Sealing Pressure: 0.15 MPa ~ 0.7 MPa
• Sealing Jaws Size: 330mm × 10mm (Sealing Surface)
• Double Heating: Customization Available for Upper and Lower Jaws

Standards Compliance

The Film Heat Seal Tester adheres to industry standards, including ASTM F2029, QB/T 2358, and YBB 00122003, ensuring reliable and consistent results.

Applications

Ideal for use in various sectors such as packaging, food, medicine, and beverages, the Film Heat Seal Tester helps ensure the quality and integrity of heat-sealed products. Its precision and versatility make it an invaluable asset for laboratories and manufacturing facilities.

Summary

The Film Heat Seal Tester is engineered for optimal performance in evaluating heat sealability, offering precise control over temperature, pressure, and time. Its advanced features and compliance with international standards make it a top choice for professionals seeking reliable and accurate testing solutions.
