Plastic Film Coefficient Of Friction Testing Instrument Astm D1894 Friction Coefficient Tester
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | 110~220V | Usage | Paper Testing Instrument,Textile Testing Instrument,Plastic Testing Machine |
|---|---|---|---|
| Standard | ISO8295,ASTM D1894 | Warranty | 12 Months |
| Product Name | Packaging Materials Coefficient Of Friction Tester | ||
| High Light | COF,friction,material surface |
||
Product Description
Plastic Film Coefficient Of Friction Testing Instrument Astm D1894 Friction Coefficient Tester
| Load Cell | 5 N(or as required) |
| Accuracy | 0.5 F.S. |
| Sled | 200±1g (or as required) |
| Sled Size | 63.5mm*63.5mm (or as required) |
| Test Speed | 100mm/min (ISO), 150mm/min (ASTM) |
| Dimensions | 540mm(L)*380mm(W)*240mm(H) |
| Weight | NW 21kg |
| Power | 110~220V 50/60Hz |

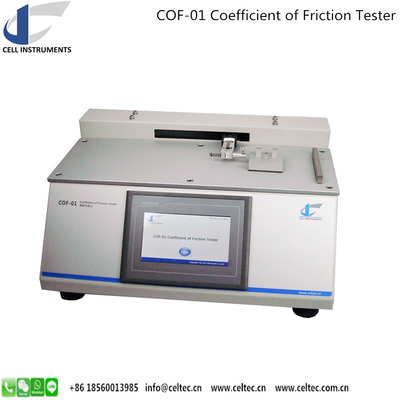

The Friction Coefficient Tester (COF-01) is a state-of-the-art instrument designed for determining the static and kinetic coefficients of friction for a wide variety of materials, including plastic films, sheets, rubber, paper and paperboard, PP woven bags, fabrics, metal-plastic composite belts, wood, coatings, brake pads, windshield wipers, shoe materials, and tires. Whether you operate in the packaging, food, medical, beverage, or academic sectors, our Friction Coefficient Tester is an essential tool for ensuring material performance and quality.
Understanding the Principle of the Friction Coefficient Tester
The operational principle of the Friction Coefficient Tester is straightforward yet effective. It involves placing two samples in contact with each other. A long strip sample is secured on a flat surface while a squared sample is subjected to force via a sled. The friction force is meticulously measured as the two samples slide against one another. This process provides accurate readings of both static and kinetic coefficients of friction, essential for material evaluation.
Key Features of the Friction Coefficient Tester
User-Friendly Interface: The Friction Coefficient Tester boasts PLC control and a touch screen operation, making it accessible for all users, regardless of technical skill.
Real-Time Data Display: Users benefit from a real-time display of test data, results, and curves, enabling immediate analysis and decision-making.
Comprehensive Testing Capabilities: The tester is capable of measuring both static and kinetic coefficients of friction, catering to a diverse range of applications.
Compliance with International Standards: Our instrument adheres to multiple international testing standards, ensuring reliability and accuracy in results.
Advanced Data Analysis: Test results can be calculated, analyzed, and visually represented through curve superposition, providing deeper insights into material properties.
RS232 Output and Professional Software: Connect and manage your test data efficiently with RS232 output and dedicated software for thorough analysis.
Easy Printing of Results: The microprint feature allows for straightforward printing of test results, facilitating easy documentation and sharing of findings.
Technical Specifications of the Friction Coefficient Tester
Load Cell: 5N
Accuracy: 0.5 F.S.
Stroke: Maximum 150mm
Sled Weight: 200 g (customizable for other weights)
Test Speed: 100mm/min (ISO), 150mm/min (ASTM)
Power Requirements: AC 220V 50Hz (customizable based on local requirements)
Dimensions: 540mm (L) x 380mm (W) x 240mm (H)
Standards Compliance for the Friction Coefficient Tester
The Friction Coefficient Tester meets the following standards:
ASTM D1894
ISO 8295
TAPPI T816
GB 10006
Why Choose Our Friction Coefficient Tester?
Investing in the Friction Coefficient Tester means equipping your laboratory with a reliable, efficient, and precise instrument that ensures the integrity of your materials. With its robust features and compliance with international standards, the COF-01 model provides not only accurate testing but also peace of mind, knowing your materials will meet the demands of their intended applications.
