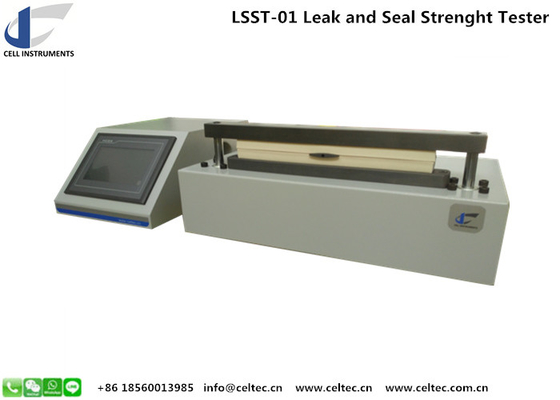

Internal Pressurization Burst Tester Astm F1140 Astm F2054 Positive Pressure Leak Tester



Internal Pressurization Burst Tester Astm F1140 Astm F2054 Positive Pressure Leak Tester 0

Test Range 0~600KPa
Sample Width 300mm (standard)
Inflating Head Φ4mm
Compressed Air 0.4~0.7MPa (Prepared by user)
Power 110~220V 50/60Hz



Application

The ASTM F2054 Positive Pressure Leak Tester is essential for evaluating the integrity of packaging through precise leak testing. This advanced instrument employs pressure decay methods to confirm that samples deliver the necessary protection for their contents. By conducting seal integrity tests, manufacturers can explore sustainable and cost-effective packaging solutions, ensuring compliance with industry standards. The ASTM F2054 Positive Pressure Leak Tester plays a crucial role in assessing potential fluctuations in sealing parameters throughout the production line. Reliable and consistent package seals are vital for maintaining product quality and safety across various industries, including packaging, food, medicine, and beverages.

Test Method

The pressure decay technique utilized by the ASTM F2054 Positive Pressure Leak Tester is one of the most prevalent methods for conducting leak tests. This method involves monitoring the reduction of pressure within the sample to identify leaks. The testing process begins by pressurizing the sample to a predetermined target level, after which the air source is sealed. Any decrease in pressure indicates a potential leak, allowing for accurate analysis of the sample's performance. The ASTM F2054 Positive Pressure Leak Tester supports three distinct testing approaches: burst testing, creep testing, and creep-to-failure testing, providing comprehensive insights into package integrity.

Technical Features

The ASTM F2054 Positive Pressure Leak Tester is engineered with a range of technical features designed to enhance reliability and ease of use:

  • PLC-Controlled Operation: This unit offers industrial-level stability, ensuring consistent test results across multiple trials.
  • User-Friendly HMI Touch Screen: The intuitive interface allows for easy operation and monitoring of testing parameters.
  • Automatic Test Result Statistics and Storage: This feature enables users to track performance trends and maintain accurate records for quality control.
  • Versatile Compatibility: The tester is compatible with various fixtures, making it suitable for testing different package forms, including open packages (three-side-seal), closed packages, doy packs, tubes, sealed trays, and cups.
  • Multiple Test Modes: Users can select from three test modes: burst, creep, and creep to failure, depending on their specific needs.
  • Customizable Settings: The ASTM F2054 Positive Pressure Leak Tester offers personalized sensitivity and threshold settings, allowing for tailored testing conditions.
  • Wide Pressure Range: With a pressure range up to 600 kPa, this tester can be customized to meet varying testing requirements.
  • Customizable Programming: The software allows users to modify test programs to align with specific operational demands, enhancing the instrument's versatility.

Standards

The ASTM F2054 Positive Pressure Leak Tester adheres to recognized industry standards, including ASTM F2054 and ASTM F1140, ensuring reliable and compliant testing results.

Conclusion

Investing in the ASTM F2054 Positive Pressure Leak Tester not only improves your packaging quality assurance processes but also aligns with sustainable practices in the packaging industry. This advanced instrument provides comprehensive insights into package integrity, helping businesses to meet safety and quality standards consistently. With its user-friendly features and customizable options, the ASTM F2054 Positive Pressure Leak Tester is the ideal solution for laboratories and industries focused on maintaining the highest product quality.
